Z-543638.02.WGTR Bore 100 Mm, Back-up Rollers, For Multi-roll Cold Rolling Mills

🔍

Z-543638.02.WGTR

Bore Diameter:100 mm

Outside Diameter:225 mm

Width:120 mm

Weight:27.7 kg

Min. Order:1 Piece

The Z-543638.02.WGTR Backed bearings are suitable for heavy-duty rolling equipment such as multi-roll cold rolling mills. Classic applications include backing rolls in multi-roll mills, straighteners, bending machines, support rolls in Sendzimir mills, and work roll support systems in strip mills.

The Z-543638.02.WGTR bearing is a Back-up Rollers with an inner diameter of 100 mm , an outer diameter of 225 mm, a width of 120 mm. Case hardening stee rings, GCr15SiMn rolling mlement. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

100 mm

Outside Diameter:

225 mm

Thickness:

120 mm

Weight:

27.7 KG

Specifications:

Structure:

Backing Bearings

Number of Rows:

Three

Bearing Material:

Case hardening stee

Cage Type:

first and second rows (double comb cage), third row (single comb cage)

Seals Type:

Open

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

System of Measurement:

Metric

Series:

Z-543..02.WGTR

Rolling Element:

rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Z-543638.02.WGTR bearings ( 100 mm x 225 mm x 120 mm) have the advantages of High rigidity, high load-bearing capacity and precision retention, and are therefore widely used in the Backing for multi-roll mills.

Part Number	Z-543638.02.WGTR
Interchangeable	FAG Z-543638.02.WGTR
Bearing Type	Back-up Rollers
Cage	first and second rows (double comb cage), third row (single comb cage)
Application	multi-roll cold rolling mills
Outer ring material	Case hardening stee
Roller Material	GCr15SiMn
Type	1
Alias	Non-locating bearing
Rows NO.	Three
Bearing Mass - m [lb]	61.0674
Dimension
Inside - d φ [inch]	3.9370
Outside - D Φ [inch]	8.8582
Width - B [inch]	4.7244
Width - C [inch]	4.7244
Section height - h [inch]	2.4606
Performance
Radial Dynamic - C_r [lbf]	164896
Radial static - C_0r [lbf]	309929
Back-up roller dyn. - C_rw [lbf]	118825
Back-up roller stat. - C_0rw [lbf]	217873

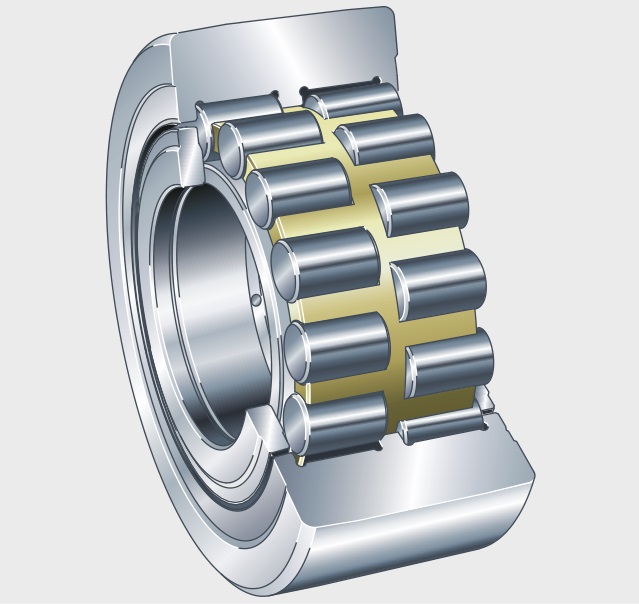

The Z-543638.02.WGTR Backed bearings primarily consist of an inner ring, an outer ring, single-row, double-row, or triple-row cylindrical rollers, and a cage. The outer ring is exceptionally thick, and the rollers and raceways feature a logarithmic profile design to optimize load distribution and reduce edge stress.

Backed bearings possess extremely high load-carrying capacity, capable of withstanding heavy loads and impact loads, while exhibiting low friction, minimal heat generation, and a long service life. The outer surface of the outer ring also utilizes a logarithmic profile, reducing edge loads during operation and improving operational reliability.
