Z-523247.03.WGTR Bore 180 Mm, Back-up Rollers, For Multi-roll Cold Rolling Mills

🔍

Z-523247.03.WGTR

Bore Diameter:180 mm

Outside Diameter:406.42 mm

Width:224 mm

Weight:169 kg

Min. Order:1 Piece

The Z-523247.03.WGTR Backed bearings are suitable for heavy-duty rolling equipment such as multi-roll cold rolling mills. Classic applications include backing rolls in multi-roll mills, straighteners, bending machines, support rolls in Sendzimir mills, and work roll support systems in strip mills.

The Z-523247.03.WGTR bearing is a Back-up Rollers with an inner diameter of 180 mm , an outer diameter of 406.42 mm, a width of 224 mm. Case hardening stee rings, GCr15SiMn rolling mlement. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

180 mm

Outside Diameter:

406.42 mm

Thickness:

224 mm

Weight:

169 KG

Specifications:

Structure:

Backing Bearings

Number of Rows:

Three

Bearing Material:

Case hardening stee

Cage Type:

first and second rows (double comb cage), third row (single comb cage)

Seals Type:

Open

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

System of Measurement:

Metric

Series:

Z-523..03.WGTR

Rolling Element:

rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Z-523247.03.WGTR bearings ( 180 mm x 406.42 mm x 224 mm) have the advantages of High rigidity, high load-bearing capacity and precision retention, and are therefore widely used in the Backing for multi-roll mills.

Part Number	Z-523247.03.WGTR
Interchangeable	FAG Z-523247.03.WGTR
Bearing Type	Back-up Rollers
Cage	first and second rows (double comb cage), third row (single comb cage)
Application	multi-roll cold rolling mills
Outer ring material	Case hardening stee
Roller Material	GCr15SiMn

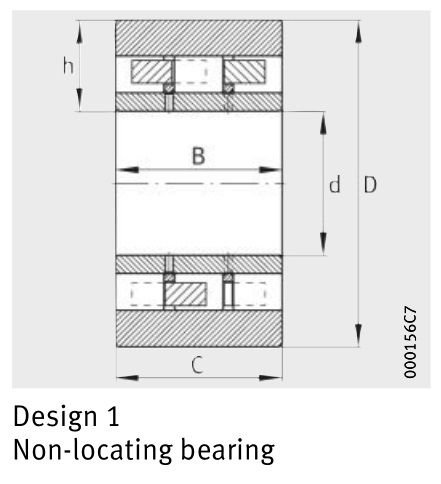

Type	1
Alias	Non-locating bearing
Rows NO.	Three
Bearing Mass - m [lb]	372.5774
Dimension
Inside - d φ [inch]	7.0866
Outside - D Φ [inch]	16.0008
Width - B [inch]	8.8189
Width - C [inch]	8.8189
Section height - h [inch]	4.4567
Performance
Radial Dynamic - C_r [lbf]	584234
Radial static - C_0r [lbf]	1146150
Back-up roller dyn. - C_rw [lbf]	402176
Back-up roller stat. - C_0rw [lbf]	752785

The Z-523247.03.WGTR Backed bearings primarily consist of an inner ring, an outer ring, single-row, double-row, or triple-row cylindrical rollers, and a cage. The outer ring is exceptionally thick, and the rollers and raceways feature a logarithmic profile design to optimize load distribution and reduce edge stress.

Backed bearings possess extremely high load-carrying capacity, capable of withstanding heavy loads and impact loads, while exhibiting low friction, minimal heat generation, and a long service life. The outer surface of the outer ring also utilizes a logarithmic profile, reducing edge loads during operation and improving operational reliability.
