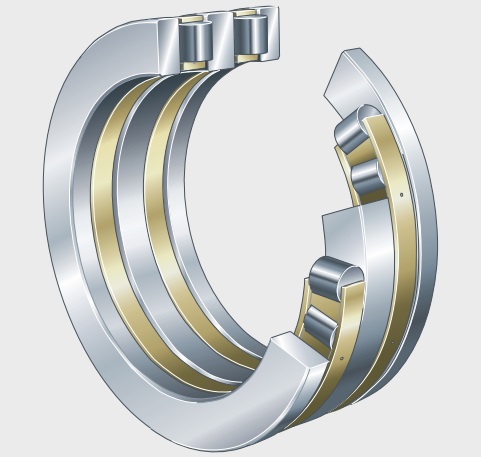

Z-507142.AR Axial Cylindrical Roller Bearings, Double Direction

🔍

Z-507142.AR

Bore Diameter:850 mm

Outside Diameter:1120 mm

Width:320 mm

Weight:799 kg

Min. Order:1 Piece

The Z-507142.AR Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The Z-507142.AR bearing is a Axial cylindrical roller bearings, Double direction with an inner diameter of 850 mm , an outer diameter of 1120 mm, a width of 320 mm. It typically uses PN (ABEC-1) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 6094861 N, its static axial rated load is approximately 31489887 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

850 mm

Outside Diameter:

1120 mm

Thickness:

320 mm

Weight:

799 KG

Dynamic load Capacity, axial:

6094861 N

Static load Capacity, axial:

31489887 N

Fatigue Load Limit, Axial:

1829423 N

Limiting speed (Oil rpm):

266

Specifications:

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

GCr15SiMn

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 150 °C

System of Measurement:

Metric

Series:

Z-507..AR

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Z-507142.AR bearings ( 850 mm x 1120 mm x 320 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	Z-507142.AR
Bearing Type	Axial cylindrical roller bearings, Double direction
Series	Z-507..AR
Accuracy class	PN (ABEC-1)
Rows NO.	Two
Weight [lb]	1761.4754
C_a Axial Dynamic [lbf]	1370124
C_0a Axial static [lbf]	7078926
C_ua Axial Fatigue [lbf]	411254
n_G Speed ratings (oil) [rpm]	266
d φ Inside [inch]	33.4645
D Φ Outside [inch]	44.0944
T Thickness [inch]	12.5984
B Width [inch]	3.3465
D₁ [inch]	36.6141
r₁ (min.) [inch]	0.1969
d₁ [inch]	43.8582
D_c1 [inch]	35.8267
r(min.) [inch]	0.2953
Mounting dimensions
d_a [inch]	35.8267
D_a(max.) [inch]	37.3228
r_a(max.) [inch]	0.2362
r_a1(max.) [inch]	0.1575

The Z-507142.AR Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
