YRTSM395 Bore 395 Mm, Rotary Table Bearings YRTSM For Higher Speeds, With Incremental Angular Measuring System

🔍

YRTSM395

Bore Diameter:395 mm

Outside Diameter:525 mm

Width:65 mm

Weight:33 kg

Min. Order:1 Piece

The YRTSM395 Rotary table bearings are suitable for high-precision, high-rigidity rotary applications. Classic applications include CNC machine tool rotary tables and indexing tables, industrial robot joints, military radar antennas, aerospace measurement equipment, astronomical telescopes, and medical devices.

The YRTSM395 bearing is a Axial/radial bearings, double direction, Rotary table bearings YRTSM for higher speeds, With incremental angular measuring system with an inner diameter of 395 mm , an outer diameter of 525 mm, a width of 65 mm. 50Mn,42CrMo rings, Its dynamic radial rated load is approximately 120892 N, its static radial rated load is approximately 389964 N. Its dynamic axial rated load is approximately 213925 N, its static axial rated load is approximately 1539823 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

395 mm

Outside Diameter:

525 mm

Thickness:

65 mm

Weight:

33 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

120892 N

Static load Capacity, Radial (Cor):

389964 N

Dynamic load Capacity, axial:

213925 N

Static load Capacity, axial:

1539823 N

Reference speed (Grease rpm):

Limiting speed (Oil rpm):

638

Specifications:

Old Designations:

YRTSM 395

Structure:

Axial/radial cylindrical roller

Number of Rows:

Three

Bearing Material:

50Mn,42CrMo

Seals Type:

Open

Operating Temperature:

-30 to 120 °C

Series:

YRTSM

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

50 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

YRTSM395 bearings ( 395 mm x 525 mm x 65 mm) have the advantages of It can withstand axial, radial and overturning moments simultaneously, has a compact structure, is easy to install, and is suitable for heavy-duty rotation, and are therefore widely used in the ultra-precision milling and grinding machines.

Part Number	YRTSM395
Mounting	screw
Bearing Type	Axial/radial bearings, double direction, Rotary table bearings YRTSM for higher speeds, With incremental angular measuring system
Manufacturer Part Code	YRTSM 395
Series	YRTSM
Seal type	Open
Rolling Element Type	cylindrical rollers
Rolling Element Material	GCr15
Ring Material	50Mn,42CrMo
Rows NO.	Three
Alias	Super Precision Bearings for Rotary Tables
m Weight [kg]	33
Reference From	INA YRTSM395
Measuring system	M = Magnetic dimensional scale
Grease for relubrication	Arcanol LOAD150
Similar model	YRTSM395/SRM01/2XSRMC1-A YRTSM395/SRM01/2XSRMC1-A YRTSM395/SRM01/2XSRMC3-A

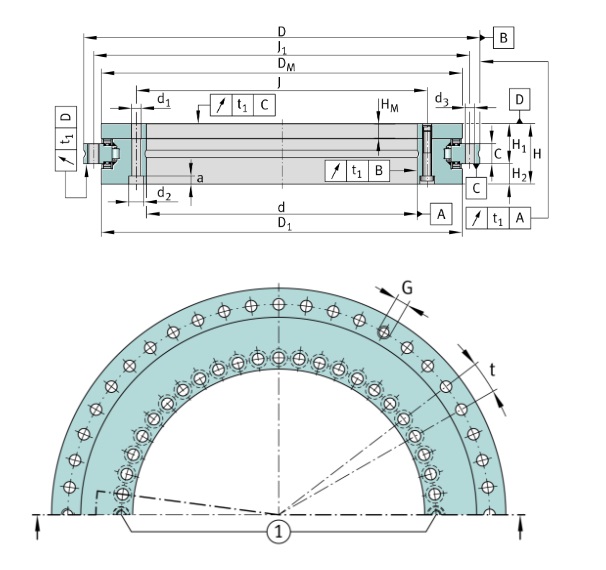

Main Dimensions
d φ Inside [inch]	15.551
d tolerance [mm]	-0.023 to 0
D Φ Outside [inch]	20.669
D tolerance [mm]	-0.028 to 0
H High [inch]	2.559
H₁ [inch]	1.673
H₂ [inch]	0.886
H_M [inch]	0.689
C [inch]	0.787
D₁ [inch]	19.201
D_M max [inch]	19.095
J [inch]	16.339
J₁ [inch]	19.882
Performance
C_r Dynamic Radial [lbf]	27176
C_0r Static Radial [lbf]	87663
C_a Dynamic Axial [lbf]	48090
C_0a Static Axial [lbf]	346152
n_B Reference speed (grease) [r/min]	15
n_G Limiting speed (oil) [r/min]	638
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	120
Mounting dimensions
d₁ Fixing screws (Inner ring) [inch]	0.366
d₂ Fixing screws (Inner ring) [inch]	0.591
a Fixing screws (Inner ring) [inch]	0.323
Fixing holes Inner ring Quantity	46
d₃ Fixing screws (Outer ring) [inch]	0.366
Fixing holes Outer ring Quantity	45
n Pitch quantity	48
t Pitch separation angle [°]	7.5
t₁ Axial and radial runout [µm]	6
G Threaded extraction hole	M12
Threaded extraction hole Quantity	3
M_A Screw tightening torque [Nm]	34
Additional information
C_aL Rigidity of bearing position (axial) [kN/µm]	8.9
C_rL Rigidity of bearing position (radial) [kN/µm]	1.8
C_kL Rigidity of bearing position (Tilting rigidity) [kNm/mrad]	271
C_aL Rigidity of bolling element set (axial) [kN/µm]	25.4
C_rL Rigidity of bolling element set (radial) [kN/µm]	9.5
C_kL Rigidity of bolling element set (Tilting rigidity) [kNm/mrad]	834
M_m Mass moment of inertia for rotating (outer ring AU) [kg*cm2]	4254

The YRTSM395 Rotary table bearings are precision bearings with a thrust-radial combined structure. They mainly consist of a housing ring, a shaft ring, two rows of axial cylindrical roller cage assemblies, and one row of radial cylindrical roller cage assemblies. The housing ring and shaft ring are evenly distributed with mounting screw holes for easy direct fixing.

The advantages of rotary table bearing design are that it can simultaneously withstand radial loads, bidirectional axial loads and overturning moments. The negative clearance preload design ensures extremely high rigidity and rotational accuracy. Moreover, the compact structure greatly simplifies rotary table design and reduces installation and maintenance costs.
