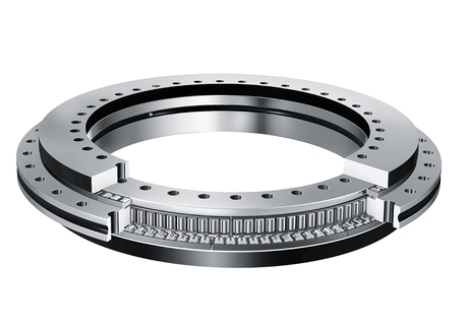

YRTS650-XL-PRL50/IR Bore 650 Mm, Axial/radial Cylindrical Roller Bearings, Double Direction For Higher Speeds

🔍

YRTS650-XL-PRL50/IR

Bore Diameter:650 mm

Outside Diameter:870 mm

Width:122 mm

Weight:161 kg

Min. Order:1 Piece

The YRTS650-XL-PRL50/IR Rotary table bearings are suitable for high-precision, high-rigidity rotary applications. Classic applications include CNC machine tool rotary tables and indexing tables, industrial robot joints, military radar antennas, aerospace measurement equipment, astronomical telescopes, and medical devices.

The YRTS650-XL-PRL50/IR bearing is a Axial/radial cylindrical roller bearings, double direction, YRTS for higher speeds with an inner diameter of 650 mm , an outer diameter of 870 mm, a width of 122 mm. 50Mn,42CrMo rings, Its dynamic radial rated load is approximately 480000 N, its static radial rated load is approximately 1390000 N. Its dynamic axial rated load is approximately 980000 N, its static axial rated load is approximately 6500000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

650 mm

Outside Diameter:

870 mm

Thickness:

122 mm

Weight:

161 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

480000 N

Static load Capacity, Radial (Cor):

1390000 N

Dynamic load Capacity, axial:

980000 N

Static load Capacity, axial:

6500000 N

Limiting speed (Oil rpm):

300

Specifications:

Old Designations:

YRTS650

Structure:

Axial/radial cylindrical roller

Number of Rows:

Three

Bearing Material:

50Mn,42CrMo

Seals Type:

Open

Operating Temperature:

-30 to 120 °C

Series:

YRTS

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

50 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

YRTS650-XL-PRL50/IR bearings ( 650 mm x 870 mm x 122 mm) have the advantages of It can withstand axial, radial and overturning moments simultaneously, has a compact structure, is easy to install, and is suitable for heavy-duty rotation, and are therefore widely used in the ultra-precision milling and grinding machines.

Part Number	YRTS650-XL-PRL50/IR
Bearing Type	Axial/radial cylindrical roller bearings, double direction, YRTS for higher speeds
Manufacturer Part Code	YRTS650
Series	YRTS
Seal type	Open
Axial runout and radial runout	PRL50/IR = Restricted axial runout and radial runout tolerances for rotating inner ring
Rolling Element Type	cylindrical rollers
Rolling Element Material	GCr15
Ring Material	50Mn,42CrMo
Rows NO.	Three
Alias	Super Precision Bearings for Rotary Tables
m Weight [kg]	161
Reference From	INA YRTS650-XL-PRL50/IR
Grease for relubrication	Arcanol SPEED2,6
Main Dimensions
d φ Inside [inch]	25.591
d tolerance [mm]	-0.038 to 0
D Φ Outside [inch]	34.252
D tolerance [mm]	-0.05 to 0
H High [inch]	4.803
H₁ [inch]	3.071
H₂ [inch]	1.732
C [inch]	1.339
D₁ [inch]	31.496
J [inch]	26.772
J₁ [inch]	32.677
Performance
C_r Dynamic Radial [lbf]	107904
C_0r Static Radial [lbf]	312472
C_a Dynamic Axial [lbf]	220304
C_0a Static Axial [lbf]	1461200
n_G Limiting speed (oil) [r/min]	300
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	120
Mounting dimensions
d₁ Fixing screws (Inner ring) [inch]	0.551
d₂ Fixing screws (Inner ring) [inch]	0.787
a Fixing screws (Inner ring) [inch]	0.512
Fixing holes Inner ring Quantity	46
d₃ Fixing screws (Outer ring) [inch]	0.551
Fixing holes Outer ring Quantity	42
n Pitch quantity	48
t Pitch separation angle [°]	7.5
t₁ Axial and radial runout [µm]	10
G Threaded extraction hole	M12
Threaded extraction hole Quantity	6
M_A Screw tightening torque [Nm]	116
Additional information
C_aL Rigidity of bearing position (axial) [kN/µm]	12.1
C_rL Rigidity of bearing position (radial) [kN/µm]	7.8
C_kL Rigidity of bearing position (Tilting rigidity) [kNm/mrad]	975
C_aL Rigidity of bolling element set (axial) [kN/µm]	42.85
C_rL Rigidity of bolling element set (radial) [kN/µm]	12.5
C_kL Rigidity of bolling element set (Tilting rigidity) [kNm/mrad]	3333

The YRTS650-XL-PRL50/IR Rotary table bearings are precision bearings with a thrust-radial combined structure. They mainly consist of a housing ring, a shaft ring, two rows of axial cylindrical roller cage assemblies, and one row of radial cylindrical roller cage assemblies. The housing ring and shaft ring are evenly distributed with mounting screw holes for easy direct fixing.

The advantages of rotary table bearing design are that it can simultaneously withstand radial loads, bidirectional axial loads and overturning moments. The negative clearance preload design ensures extremely high rigidity and rotational accuracy. Moreover, the compact structure greatly simplifies rotary table design and reduces installation and maintenance costs.
