YRTCMA200-XL Bore 200 Mm, Axial/radial Bearings, Rotary Table Bearings, Double Direction, YRTCMA

🔍

YRTCMA200-XL

Bore Diameter:200 mm

Outside Diameter:300 mm

Width:51 mm

Weight:10.7 kg

Min. Order:1 Piece

The YRTCMA200-XL Rotary table bearings are suitable for high-precision, high-rigidity rotary applications. Classic applications include CNC machine tool rotary tables and indexing tables, industrial robot joints, military radar antennas, aerospace measurement equipment, astronomical telescopes, and medical devices.

The YRTCMA200-XL bearing is a Axial/radial bearings, Rotary table bearings, double direction, YRTCMA with an inner diameter of 200 mm , an outer diameter of 300 mm, a width of 51 mm. 50Mn,42CrMo rings, XL rolling mlement. Its dynamic radial rated load is approximately 122852 N, its static radial rated load is approximately 274882 N. Its dynamic axial rated load is approximately 146962 N, its static axial rated load is approximately 849896 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

200 mm

Outside Diameter:

300 mm

Thickness:

51 mm

Weight:

10.7 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

122852 N

Static load Capacity, Radial (Cor):

274882 N

Dynamic load Capacity, axial:

146962 N

Static load Capacity, axial:

849896 N

Limiting speed (Oil rpm):

439

Specifications:

Structure:

Axial/radial cylindrical roller

Number of Rows:

Three

Bearing Material:

50Mn,42CrMo

Seals Type:

Open

Rolling Mlement Material:

Operating Temperature:

-30 to 120 °C

Series:

YRTCMA

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

50 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

YRTCMA200-XL bearings ( 200 mm x 300 mm x 51 mm) have the advantages of It can withstand axial, radial and overturning moments simultaneously, has a compact structure, is easy to install, and is suitable for heavy-duty rotation, and are therefore widely used in the positioning axes, swivel type axes.

Part Number	YRTCMA200-XL
X-Life	XL long life design
Mounting	screw
Bearing Type	Axial/radial bearings, Rotary table bearings, double direction, YRTCMA
Manufacturer Part Code	YRTCMA200
Series	YRTCMA
Seal type	Open
Rolling Element Type	cylindrical rollers
Rolling Element Material	GCr15
Ring Material	50Mn,42CrMo
Rows NO.	Three
Alias	Super Precision Bearings for Rotary Tables
m Weight [kg]	10.7
Reference From	INA YRTCMA200-XL
Measuring system	MA = Absolute value angular measuring system
Grease for relubrication	Arcanol MULTITOP
Similar model	YRTCMA200-03-0860-XL

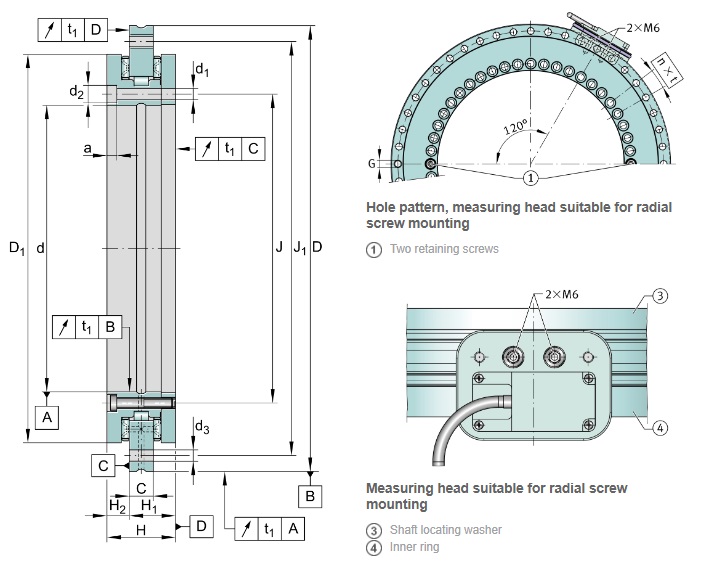

Main Dimensions
d φ Inside [inch]	7.874
d tolerance [mm]	-0.015 to 0
D Φ Outside [inch]	11.811
D tolerance [mm]	-0.018 to 0
H High [inch]	2.008
H₁ [inch]	1.181
H₂ [inch]	0.827
C [inch]	0.591
D₁ [inch]	10.803
D_M max [inch]	10.787
J [inch]	8.465
J₁ [inch]	11.220
Performance
C_r Dynamic Radial [lbf]	27617
C_0r Static Radial [lbf]	61793
C_a Dynamic Axial [lbf]	33037
C_0a Static Axial [lbf]	191056
n_G Limiting speed (oil) [r/min]	439
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	120
Mounting dimensions
d₁ Fixing screws (Inner ring) [inch]	0.276
d₂ Fixing screws (Inner ring) [inch]	0.433
a Fixing screws (Inner ring) [inch]	0.244
Fixing holes Inner ring Quantity	46
d₃ Fixing screws (Outer ring) [inch]	0.276
Fixing holes Outer ring Quantity	45
n Pitch quantity	48
t Pitch separation angle [°]	7.5
t₁ Axial and radial runout [µm]	4
G Threaded extraction hole	M8
Threaded extraction hole Quantity	3
M_A Screw tightening torque [Nm]	14
M_R Bearing friction torque [Nm]	6
Additional information
C_aL Rigidity of bearing position (axial) [kN/µm]	4.9
C_rL Rigidity of bearing position (radial) [kN/µm]	4.1
C_kL Rigidity of bearing position (Tilting rigidity) [kNm/mrad]	40
C_aL Rigidity of bolling element set (axial) [kN/µm]	15.5
C_rL Rigidity of bolling element set (radial) [kN/µm]	6.2
C_kL Rigidity of bolling element set (Tilting rigidity) [kNm/mrad]	128

The YRTCMA200-XL Rotary table bearings are precision bearings with a thrust-radial combined structure. They mainly consist of a housing ring, a shaft ring, two rows of axial cylindrical roller cage assemblies, and one row of radial cylindrical roller cage assemblies. The housing ring and shaft ring are evenly distributed with mounting screw holes for easy direct fixing.

The advantages of rotary table bearing design are that it can simultaneously withstand radial loads, bidirectional axial loads and overturning moments. The negative clearance preload design ensures extremely high rigidity and rotational accuracy. Moreover, the compact structure greatly simplifies rotary table design and reduces installation and maintenance costs.
