YRTC80-TV-REP Bore 80 Mm, Axial/radial Bearings, Double Direction, YRT

🔍

YRTC80-TV-REP

Bore Diameter:80 mm

Outside Diameter:146 mm

Width:35 mm

Weight:2.4 kg

Min. Order:1 Piece

The YRTC80-TV-REP

The YRTC80-TV-REP bearing is a Axial/radial bearings, double direction, YRT with an inner diameter of 80 mm , an outer diameter of 146 mm, a width of 35 mm. Its dynamic radial rated load is approximately 43899 N, its static radial rated load is approximately 97818 N. Its dynamic axial rated load is approximately 37952 N, its static axial rated load is approximately 157775 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

80 mm

Outside Diameter:

146 mm

Thickness:

35 mm

Weight:

2.4 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

43899 N

Static load Capacity, Radial (Cor):

97818 N

Dynamic load Capacity, axial:

37952 N

Static load Capacity, axial:

157775 N

Limiting speed (Oil rpm):

341

Specifications:

Structure:

Axial/radial cylindrical roller

Operating Temperature:

-30 to 120 °C

Series:

YRT = For standard applications with low speeds and small operating durations

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

50 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	YRTC80-TV-REP
Mounting	screw
Bearing Type	Axial/radial bearings, double direction, YRT
Manufacturer Part Code	YRT 80-TV
Series	YRT = For standard applications with low speeds and small operating durations
Alias	Super Precision Bearings for Rotary Tables
m Weight [kg]	2.4
Reference From	INA YRTC80-TV-REP

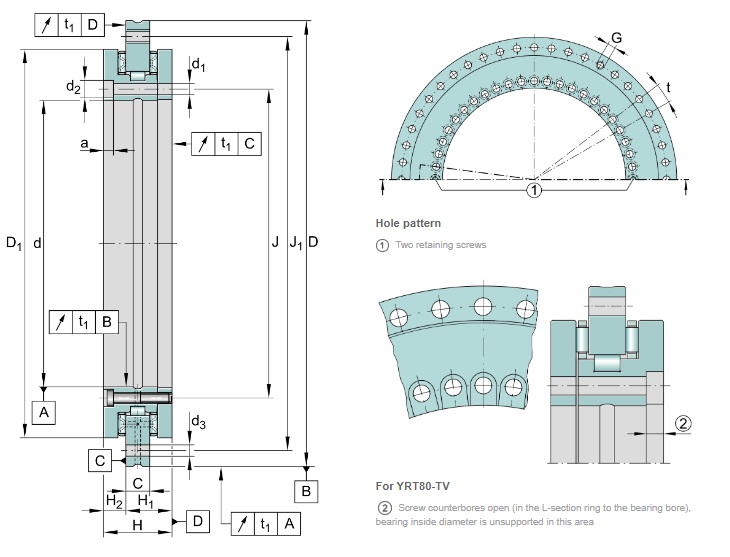

Main Dimensions
d φ Inside [inch]	3.150
d tolerance [mm]	0 -0.009
D Φ Outside [inch]	5.748
D tolerance [mm]	0 -0.011
H High [inch]	1.378
H₁ [inch]	0.919
H₂ [inch]	0.459
C [inch]	0.472
D₁ [inch]	5.118
J [inch]	3.622
J₁ [inch]	5.433
Performance
C_r Dynamic Radial [lbf]	9868
C_0r Static Radial [lbf]	21989
C_a Dynamic Axial [lbf]	8531
C_0a Static Axial [lbf]	35467
n_G Limiting speed (oil) [r/min]	341
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	120
Mounting dimensions
d₁ Fixing screws (Inner ring) [inch]	0.220
d₂ Fixing screws (Inner ring) [inch]	0.394
a Fixing screws (Inner ring) [inch]	0.157
Fixing holes Inner ring Quantity	10
d₃ Fixing screws (Outer ring) [inch]	0.181
Fixing holes Outer ring Quantity	12
n Pitch quantity	12
t Pitch separation angle [°]	30
t₁ Axial and radial runout [µm]	3
M_A Screw tightening torque [Nm]	8.5
M_R Bearing friction torque [Nm]	3
Additional information
C_aL Rigidity of bearing position (axial) [kN/µm]	1.6
C_rL Rigidity of bearing position (radial) [kN/µm]	1.8
C_kL Rigidity of bearing position (Tilting rigidity) [kNm/mrad]	2.5
C_aL Rigidity of bolling element set (axial) [kN/µm]	4
C_rL Rigidity of bolling element set (radial) [kN/µm]	2.6
C_kL Rigidity of bolling element set (Tilting rigidity) [kNm/mrad]	6.3
