YRTC580-XL-VSP6 Bore 580 Mm, Axial/radial Bearings, Double Direction, YRT

🔍

YRTC580-XL-VSP6

Bore Diameter:580 mm

Outside Diameter:750 mm

Width:90 mm

Weight:89 kg

Min. Order:1 Piece

The YRTC580-XL-VSP6

The YRTC580-XL-VSP6 bearing is a Axial/radial bearings, double direction, YRT with an inner diameter of 580 mm , an outer diameter of 750 mm, a width of 90 mm. XL rolling mlement. Its dynamic radial rated load is approximately 234856 N, its static radial rated load is approximately 729773 N. Its dynamic axial rated load is approximately 579809 N, its static axial rated load is approximately 4449756 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

580 mm

Outside Diameter:

750 mm

Thickness:

90 mm

Weight:

89 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

234856 N

Static load Capacity, Radial (Cor):

729773 N

Dynamic load Capacity, axial:

579809 N

Static load Capacity, axial:

4449756 N

Limiting speed (Oil rpm):

Specifications:

Structure:

Axial/radial cylindrical roller

Rolling Mlement Material:

Operating Temperature:

-30 to 120 °C

Series:

YRTC

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

50 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	YRTC580-XL-VSP6
X-Life	XL long life design
Mounting	screw
Bearing Type	Axial/radial bearings, double direction, YRT
Manufacturer Part Code	YRTC580
Suffixes	VSP = Preloaded
Series	YRTC
Alias	Super Precision Bearings for Rotary Tables
m Weight [kg]	89
Reference From	INA YRTC580-XL-VSP6

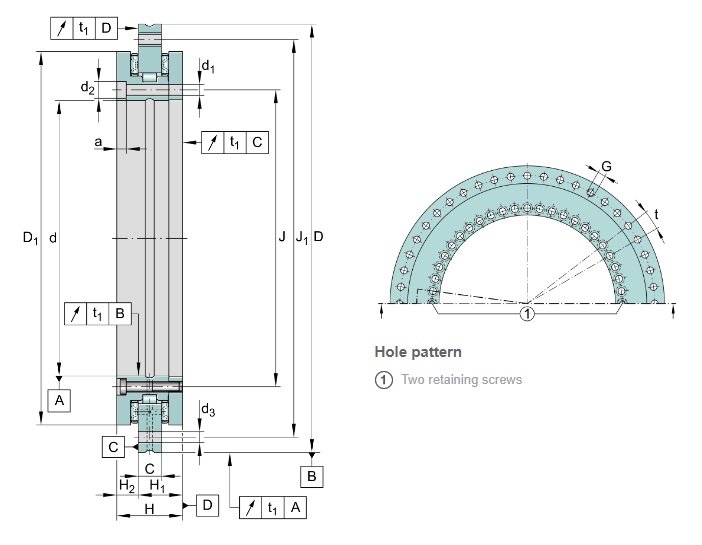

Main Dimensions
d φ Inside [inch]	22.835
d tolerance [mm]	0 -0.025
D Φ Outside [inch]	29.528
D tolerance [mm]	0 -0.035
H High [inch]	3.543
H₁ [inch]	2.362
H₂ [inch]	1.181
C [inch]	1.181
D₁ [inch]	27.559
J [inch]	24.016
J₁ [inch]	28.346
Performance
C_r Dynamic Radial [lbf]	52795
C_0r Static Radial [lbf]	164052
C_a Dynamic Axial [lbf]	130341
C_0a Static Axial [lbf]	1000305
n_G Limiting speed (oil) [r/min]	77
n_G Limiting speeds (Swivel type operation) [r/min]	200
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	120
Mounting dimensions
d₁ Fixing screws (Inner ring) [inch]	0.449
d₂ Fixing screws (Inner ring) [inch]	0.709
a Fixing screws (Inner ring) [inch]	0.433
Fixing holes Inner ring Quantity	46
d₃ Fixing screws (Outer ring) [inch]	0.449
Fixing holes Outer ring Quantity	42
n Pitch quantity	48
t Pitch separation angle [°]	7.5
t₁ Axial and radial runout [µm]	10
G Threaded extraction hole	M12
Threaded extraction hole Quantity	6
M_A Screw tightening torque [Nm]	68
M_R Bearing friction torque [Nm]	60
Additional information
C_aL Rigidity of bearing position (axial) [kN/µm]	11.9
C_rL Rigidity of bearing position (radial) [kN/µm]	2.9
C_kL Rigidity of bearing position (Tilting rigidity) [kNm/mrad]	726
C_aL Rigidity of bolling element set (axial) [kN/µm]	41.8
C_rL Rigidity of bolling element set (radial) [kN/µm]	11.2
C_kL Rigidity of bolling element set (Tilting rigidity) [kNm/mrad]	1951
