XU080149 Crossed Roller Slewing Ring Bearing, Without Gear Teeth, Preloaded

🔍

XU080149

Bore Diameter:101.6 mm

Outside Diameter:196.85 mm

Width:22.22 mm

Weight:3.28 kg

Min. Order:1 Piece

The XU080149 Crossed roller slewing bearings are widely used in requiring high levels of rotational accuracy, rigidity, and load-bearing capacity, where installation space is often limited，such as industrial robots (joints, rotary seats), CNC machine tools (rotary tables, turrets), medical equipment (CT scanners, surgical robots), precision measuring instruments, radar turntables, and aerospace applications.

The XU080149 bearing is a Crossed roller slewing ring bearing, without gear teeth, preloaded with an inner diameter of 101.6 mm , an outer diameter of 196.85 mm, a width of 22.22 mm. It typically uses P5, P6, P0 grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears high radial forces and moderate axial and tilting moment loads, Its dynamic radial rated load is approximately 39000 N, its static radial rated load is approximately 37500 N. Its dynamic axial rated load is approximately 55000 N, its static axial rated load is approximately 77000 N. sealed on both sides type, NBR (Nitrile Butadiene Rubber). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: XU 08 0149

Dimensions:

Inside Diameter:

101.6 mm

Outside Diameter:

196.85 mm

Thickness:

22.22 mm

Weight:

3.28 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

39000 N

Static load Capacity, Radial (Cor):

37500 N

Dynamic load Capacity, axial:

55000 N

Static load Capacity, axial:

77000 N

Specifications:

Old Designations:

XU 080149

Structure:

Crossed roller slewing bearings (No gear type)

Number of Rows:

One

Precision Rating:

P5, P6, P0

Load Direction:

high radial forces and moderate axial and tilting moment loads

Bearing Material:

50Mn,42CrMo

Seals Type:

sealed on both sides

Seal Material:

NBR (Nitrile Butadiene Rubber)

Rolling Mlement Material:

GCr15

Operating Temperature:

-30 to 80 °C

System of Measurement:

Metric

Series:

Rolling Element:

Cylindrical Rollers

Gear Options:

without

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

10 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

XU080149 bearings ( 101.6 mm x 196.85 mm x 22.22 mm) have the advantages of The rollers are arranged in a cross pattern, resulting in minimal deformation, low rotational runout, and precise positioning, and are therefore widely used in the Industrial robots, machine tool rotary tables, medical devices, radar antennas and precision rotating equipment.

Part Number	XU080149
Bearing Type	Crossed roller slewing ring bearing, without gear teeth, preloaded
Series	XU
Equivalent	XU 08 0149
Interchangeable	INA XU080149
Load direction	high radial forces and moderate axial and tilting moment loads
Seal type	sealed on both sides
Seal Material	NBR (Nitrile Butadiene Rubber)
Rows NO.	One
m Weight [kg]	3.28
Performance Data
C_a Dynamic Axial	55000 N \| 55.000 KN
C_0a Static Axial	77000 N \| 77.000 KN
C_r Radial Dynamic	39000 N \| 39.000 KN
C_0r Radial Static	37500 N \| 37.500 KN
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	80

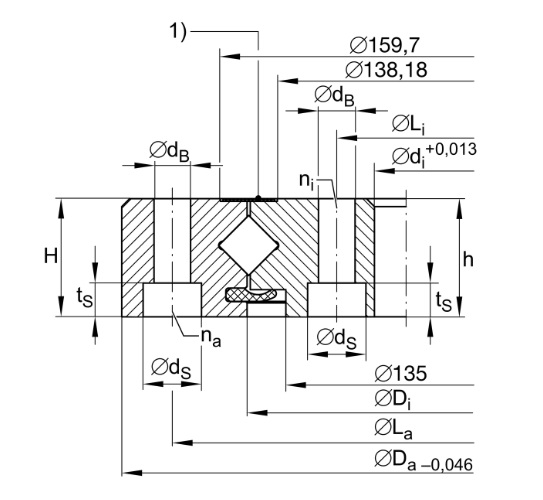

Dimensions
D_a Φ Outside Diameter [mm]	196.85
d_{i φ Bore Diameter [mm]}	101.6
D_i Inner diameter outer ring [mm]	149.6
Height - H [mm]	22.22
h Height of individual ring [mm]	22.22
h_i Height of inner ring [mm]	22.22
Fixing holes
L_a Pitchcircle diameter fixing holes outer ring [mm]	177.8
n_a Number of fixing holes in outer ring	16
L_i Pitchcircle diameter fixing holes inner ring [mm]	115.8
n_i Number of fixing holes in inner ring	16
d_B Fixing bore [mm]	6.9
d_S Counterbore diameter of fixing holes [mm]	11
t_S Counterbore depth of fixing holes [mm]	6.35
Fr _{zu. Max} Radial load screws	15400 N \| 15.400 KN
Gearing
Gear teeth type	without
Designation Breakdown
VSP min preload [mm]	0.005
VSP max preload [mm]	0.02

The XU080149 Crossed roller slewing bearings mainly consist of an inner ring, an outer ring, cross-arranged cylindrical rollers, spacers, and a sealing device. The rollers are arranged at 90° intervals within the raceway, enabling a single-row structure to withstand multi-directional loads.

The cross-arrangement of the rollers in crossed roller slewing bearings allows them to simultaneously withstand radial loads, axial loads, and overturning moments. They exhibit extremely high rigidity and a precision grade of P5 or higher. Their compact structure and easy installation significantly save installation space.
