W203PP Fafnir Radial Deep Groove Ball Bearings

🔍

W203PP

Bore Diameter:17 mm

Outside Diameter:40 mm

Width:7.48 mm

Weight:0.091 kg

Min. Order:2 Piece

The W203PP bearing is a Deep groove ball bearing with an inner diameter of 17 mm , an outer diameter of 40 mm, a width of 7.48 mm. It typically uses p0/p6/p5/p4/p2 grade precision tolerances and It primarily bears Radial Bearing, Its dynamic radial rated load is approximately 10600 N, its static radial rated load is approximately 4760 N. It uses C0 C2 C3 C4 C5 standard radial clearance, ZZ,2RS or open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: Reducer, Papermaking Machinery, Railway Vehicle

Application: Automotive, rolling mill, mining, metallurgical, skateboard etc.

Dimensions:

Inside Diameter:

17 mm

Outside Diameter:

40 mm

Thickness:

7.48 mm

Weight:

0.091 KG

Chamfer (R):

1mm

Chamfer (r):

1mm

Performance Data:

Dynamic load Capacity, Radial (Cr):

10600 N

Static load Capacity, Radial (Cor):

4760 N

Reference speed (Grease rpm):

10526 rpm

Limiting speed (Oil rpm):

12281 rpm

Specifications:

HS Code:

8482102000

Structure:

Ball Bearings

Number of Rows:

Single

Demensions:

17*40*7.48

Brand:

Z&K/Neutral / OEM

Radial Clearance Trade No.:

C0 C2 C3 C4 C5

Precision Rating:

p0/p6/p5/p4/p2

Vibration:

Z1V1 Z2V2 Z3V3

Load Direction:

Radial Bearing

Bearing Material:

Bearing Steel

Seals Type:

ZZ,2RS or open

Transaction Information:

Transport Package:

Single Box, Plastic Barrel, Carton, Tray

Shipping Ways:

Sea, land and air transport

Country of Origin:

China

Stock:

10 Piece

Production Capacity:

1000PCS/Year

Port:

Guangzhou

Payment term:

TT/PAPAL/WESTERN UNION

Delivery time:

7-15

Detailed description

W203PP Radial Deep Groove Ball Bearings
W203PP Radial Deep Groove Ball Bearings
Bearing NO.:	W203PP	MOQ:	1PCS
Bore Diameter(inch):	2.1875	Material	Bearing steel
Outer Diameter(inch):	1.5748	Sample:	Available
Height(inch):	0.6882	Clearance:	C3
Weight(lbs):	0.2	Seals:	2
Inner (d) (mm):	17	Row number:	Single Row
Outer (D) (mm):	40	Static Radial Rating (lbf):	1070
Width (B) (mm):	17.48	Dynamic load rating (lbf):	2380
Weight(kg):	0.091	Limiting Speed (Grease) rpm:	10526
Ball Type :	STEEL	Limiting Speed (Oil) rpm:	12281
R(mm):	1	da (mm):	19.6
r(mm):	1	Da(mm):	40.9
Applicable Industries:	Manufacturing Plant,Home Use, Printing Shops,Construction works,Advertising Company	Contact Bonnie:	Email:[email protected]
Applicable Industries:		Contact Bonnie:	Email:[email protected]

Share this product to:

Let more people see your product

How can you buy W203PP Fafnir Radial Deep Groove Ball Bearings on the Internet?
High quality W203PP ( 0.091 kg Mass, ID: 17 mm OD: 40 mm WD: 7.48 mm , Single Rows , C0 C2 C3 C4 C5 Radial Clearance , p0/p6/p5/p4/p2 Accuracy Class , Bearing Steel Material , 10600 N Radial dynamic , 4760 N Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. W203PP. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- 6301/15 2RS Deep Groove Ball Bearing 15x37x12
- 6301/15 2RS Deep Groove Ball Bearing 15x37x12 Inner Diameter: 15mm Outer Diameter: 37mm Width: 12mm Weight:
- Anti Rust plastic bearing 6002 For Machinery
- Anti Rust plastic bearing 6002 For Machinery Model Number:6002 Precision Rating:P0 Seals Type:Open Number of Row:Single
- AB40559 Deep Groove Ball Bearings Single Row
- AB40559 can take axial loads in both directions and offer low frictional
- 1623RSNRC3 Single Row High-Load Deep Groove Ball Bearings
- 1623RSNRC3 Single Row High-Load Deep Groove Ball Bearings Max Fillet:0.025 Speed Limit:12,000 RPM Weight:0.0399kg
- RSL183011 Cylindrical Roller Bearing 55x83.54x26 mm
- 55MM Bore; Straight Bore Profile; 83.54MM Outside Diameter; 26MM Width; RBEC 1
- L68149-10 Long Life Tapered Roller Bearings for Machinery
- L68149-10accommodates combined loads and provides low friction during operation. By adjusting

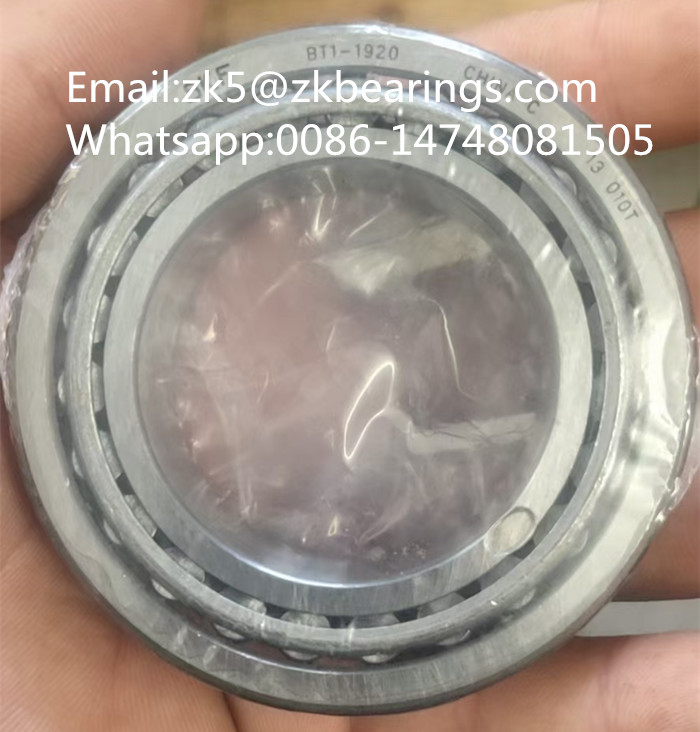

- BT1-1920 32009X-Q Single Row Tapered Roller Bearing 45X75X20 mm
