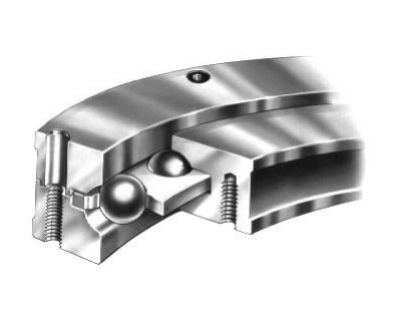

W13-38P1 Bore 819.912 Mm, High-Speed Radial Single Row Ball Slewing Rings

🔍

W13-38P1

Bore Diameter:819.912 mm

Outside Diameter:1100.074 mm

Width:94.996 mm

Weight:255.83 kg

Min. Order:1 Piece

The W13-38P1 Slewing bearings are widely used in mechanical equipment that needs to bear heavy loads and achieve smooth rotation, such as engineering machinery (excavators, truck cranes), wind power generation (yaw and pitch bearings), port machinery (stack-reclaimers), robots (industrial robot rotary tables), medical equipment (CT scanner rotating frames), and new energy (solar tracking systems), among other fields.

The W13-38P1 bearing is a High-Speed Radial Single Row Ball Slewing Rings with an inner diameter of 819.912 mm , an outer diameter of 1100.074 mm, a width of 94.996 mm. 50Mn or 42CrMo rings, chrome-alloy steel rolling mlement. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

819.912 mm

Outside Diameter:

1100.074 mm

Thickness:

94.996 mm

Weight:

255.83 KG

Specifications:

Structure:

Slewing ring bearings

Number of Rows:

One

Bearing Material:

50Mn or 42CrMo

Seals Type:

Open

Rolling Mlement Material:

chrome-alloy steel

Operating Temperature:

-25 to 60 °C

System of Measurement:

inch

Series:

6000 series

Rolling Element:

Balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

W13-38P1 bearings ( 819.912 mm x 1100.074 mm x 94.996 mm) have the advantages of Integrated transmission, ultra-high load capacity, simplified structure, and are therefore widely used in the Log-debarking machines, Coil winders, Pay-off reels, High-speed capstans.

Part Number	W13-38P1
Bearing Type	High-Speed Radial Single Row Ball Slewing Rings
Gears type	Gearless
Units	inch
Seal	Open
Rows NO.	One
Outside - OD Φ [inch]	43.310
Inside - ID φ [inch]	32.280
IO [inch]	37.48
OI [inch]	38.11
OH [inch]	3.74
IH [inch]	2.96
K [inch]	0.39
PH [inch]	0.59
Mounting Holes - OBC [inch]	41.540
OU [inch]	5/8-11
No. Holes - OBC	16
Mounting Holes - IBC [inch]	34.25
IU [inch]	5/8-11
No. Holes - IBC	16
Static Radial Capacity [lbs]	80350
Weight [lbs]	564

The W13-38P1 Slewing bearings mainly consist of an inner ring, an outer ring, rolling elements (steel balls or rollers), spacers, seals, and mounting holes. Gears can be integrated into the inner and outer rings for direct meshing with the drive mechanism to achieve power transmission.

Slewing bearings can simultaneously withstand axial loads, radial loads, and overturning moments, exhibiting high load-bearing capacity and outstanding rigidity. Their integrated structure facilitates installation, minimizes space occupation, ensures smooth operation, and reduces maintenance intervals.
