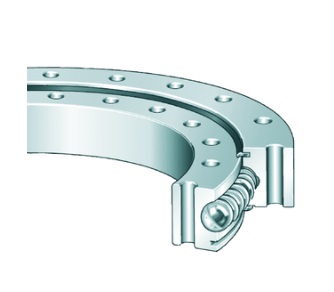

VU 20 0220 Four Point Contact Slewing Ring Without Teeth

🔍

VU 20 0220

Bore Diameter:138 mm

Outside Diameter:302 mm

Width:46 mm

Weight:15.6 kg

Min. Order:1 Piece

The VU 20 0220 Single-row four-point contact ball slewing bearings are widely used in rotational applications requiring the ability to withstand combined loads (axial force, radial force, and overturning moment) and demanding a compact structure and low self-weight, such as engineering machinery (truck cranes, excavators), wind power generation (yaw bearings), port machinery, photovoltaic tracking systems, robotics, and medical devices.

The VU 20 0220 bearing is a Four point contact bearing, slewing ring without teeth with an inner diameter of 138 mm , an outer diameter of 302 mm, a width of 46 mm. It typically uses P5, P6, P0 grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears axial, radial and tilting moment loads, Its dynamic radial rated load is approximately 145000 N, its static radial rated load is approximately 235000 N. Its dynamic axial rated load is approximately 159000 N, its static axial rated load is approximately 510000 N. sealed on both sides type, NBR (Nitrile Butadiene Rubber). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: VU200220

Dimensions:

Inside Diameter:

138 mm

Outside Diameter:

302 mm

Thickness:

46 mm

Weight:

15.6 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

145000 N

Static load Capacity, Radial (Cor):

235000 N

Dynamic load Capacity, axial:

159000 N

Static load Capacity, axial:

510000 N

Specifications:

Structure:

Four point contact ball slewing bearings (No gear type)

Number of Rows:

One

Precision Rating:

P5, P6, P0

Load Direction:

axial, radial and tilting moment loads

Bearing Material:

50Mn,42CrMo

Seals Type:

sealed on both sides

Seal Material:

NBR (Nitrile Butadiene Rubber)

Rolling Mlement Material:

GCr15

Operating Temperature:

-25 to 80 °C

System of Measurement:

Metric

Series:

Rolling Element:

Balls

Gear Options:

without

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

10 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

VU 20 0220 bearings ( 138 mm x 302 mm x 46 mm) have the advantages of Compact structure, lightweight, small footprint, high cost-performance ratio, and are therefore widely used in the Robots, construction machinery, wind turbines, radar antennas, and various rotary worktables.

Part Number	VU 20 0220
Bearing Type	Four point contact bearing, slewing ring without teeth
Series	VU
Equivalent	VU200220
Interchangeable	INA VU 20 0220
Load direction	axial, radial and tilting moment loads
Lubrication nipples	2 taper type lubrication nipples, DIN 71412-A M10x1, arranged evenly about the circumference and recessed
Seal type	sealed on both sides
Seal Material	NBR (Nitrile Butadiene Rubber)
Rows NO.	One
m Weight [kg]	15.6
Performance Data
C_a Dynamic Axial	159000 N \| 159.000 KN
C_0a Static Axial	510000 N \| 510.000 KN
C_r Radial Dynamic	145000 N \| 145.000 KN
C_0r Radial Static	235000 N \| 235.000 KN
Operating temperature - T(min) [°C]	-25
Operating temperature - T(max) [°C]	80
Dimensions
D_a Φ Outside Diameter [mm]	302
d_{i φ Bore Diameter [mm]}	138
D_i Inner diameter outer ring [mm]	219
d_a Outside diameter inner ring [mm]	221
Height - H [mm]	46
h Height of individual ring [mm]	41
T Length centering inner ring [mm]	6
t Length centering inner ring [mm]	6
h_a Width outer ring [mm]	41
h_i Height of inner ring [mm]	41
Fixing holes
L_a Pitchcircle diameter fixing holes outer ring [mm]	270
n_a Number of fixing holes in outer ring	10
L_i Pitchcircle diameter fixing holes inner ring [mm]	170
n_i Number of fixing holes in inner ring	10
d_B Fixing bore [mm]	18
Fr _{zul Max} Radial load fixing screws	78000 N \| 78.000 KN
Gearing
Gear teeth type	without
Designation Breakdown

The VU 20 0220 Single-row four-point contact ball slewing bearings mainly consist of an inner ring, an outer ring, steel balls, spacers, and a sealing device. The raceways are peach-shaped or arc-shaped, and the steel balls form four-point contact with the inner and outer ring raceways. Gears can be integrated into the inner and outer rings.

Single-row four-point contact ball slewing bearings feature a low axial height and light weight due to their single-row structure. One bearing can simultaneously withstand axial loads, radial loads, and overturning moments. The four-point contact design provides high load-bearing capacity, good rigidity, and easy installation and maintenance.
