VSU200644 Four Point Contact Bearings

🔍

VSU200644

Bore Diameter:572 mm

Outside Diameter:716 mm

Width:56 mm

Weight:44 kg

The VSU200644 bearing is a slewing bearing with an inner diameter of 572 mm , an outer diameter of 716 mm, a width of 56 mm. It typically uses P5 P6 PO grade precision tolerances and open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

572 mm

Outside Diameter:

716 mm

Thickness:

56 mm

Weight:

44 KG

Specifications:

Structure:

Slew bearing+ball

Brand:

LYJW

Precision Rating:

P5 P6 PO

Bearing Material:

50Mn

Seals Type:

open

Transaction Information:

Payment term:

T/T,L/C

Delivery time:

one day after receive the payment

Detailed description

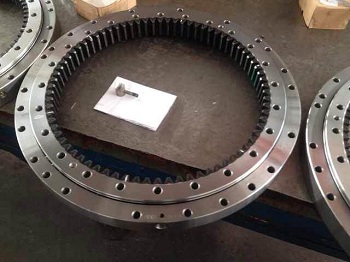

Single row four point contact ball slewing bearing VSU200644 is made from two rings,compact form,light in weight,balls contact with the raceway by four points.

Main product data of VSU200644 four point contact bearings

Maximum permissible radial load against friction lock: 148700 N

Basic dynamic load rating, axial: 200000 N

Basic static load rating, axial: 880000 N

Basic dynamic load rating, radial: 131000N

Basic static load rating, radial:385000 N

Share this product to:

Let more people see your product

How can you buy VSU200644 Four Point Contact Bearings on the Internet?
High quality VSU200644 ( 44 kg Mass, ID: 572 mm OD: 716 mm WD: 56 mm , P5 P6 PO Accuracy Class , 50Mn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. VSU200644. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
