VLU 200544 Four Point Contact Slewing Ring Light Series 20, Without Gear Teeth

🔍

VLU 200544

Bore Diameter:434 mm

Outside Diameter:648 mm

Width:56 mm

Weight:31.41 kg

Min. Order:1 Piece

The VLU 200544 Flanged-type slewing bearings are widely used in Scenarios that require equipment weight, installation space, and rotational flexibility, but have medium or low load-bearing requirements, such as industrial robots (wrist joints), machine tools (tool magazines, turntables), automated equipment (robotic arms), medical equipment (surgical robots), packaging equipment, and aerospace (antenna drive mechanisms), among other fields.

The VLU 200544 bearing is a Four point contact bearing, slewing ring light series 20, without gear teeth with an inner diameter of 434 mm , an outer diameter of 648 mm, a width of 56 mm. It typically uses P5, P6, P0 grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears axial, radial and tilting moment loads, Its dynamic radial rated load is approximately 138000 N, its static radial rated load is approximately 144000 N. Its dynamic axial rated load is approximately 152000 N, its static axial rated load is approximately 385000 N. sealed on both sides type, NBR (Nitrile Butadiene Rubber). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: VLU200544

Dimensions:

Inside Diameter:

434 mm

Outside Diameter:

648 mm

Thickness:

56 mm

Weight:

31.41 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

138000 N

Static load Capacity, Radial (Cor):

144000 N

Dynamic load Capacity, axial:

152000 N

Static load Capacity, axial:

385000 N

Specifications:

Structure:

Light load slewing bearings (No gear type)

Number of Rows:

One

Precision Rating:

P5, P6, P0

Load Direction:

axial, radial and tilting moment loads

Bearing Material:

50Mn,42CrMo

Seals Type:

sealed on both sides

Seal Material:

NBR (Nitrile Butadiene Rubber)

Rolling Mlement Material:

GCr15

Operating Temperature:

-25 to 80 °C

System of Measurement:

Metric

Series:

VLU20

Rolling Element:

Balls

Gear Options:

without

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

10 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

VLU 200544 bearings ( 434 mm x 648 mm x 56 mm) have the advantages of Lightweight, compact, flexible in operation, with good load-bearing capacity, and easy to install, and are therefore widely used in the Industrial robots, medical equipment (CT scanner), packaging machinery.

Part Number	VLU 200544
Bearing Type	Four point contact bearing, slewing ring light series 20, without gear teeth
Series	VLU20
Equivalent	VLU200544
Interchangeable	INA VLU 200544
Load direction	axial, radial and tilting moment loads
Lubrication nipples	4 taper type lubrication nipples, DIN 71412-A S8x1,arranged evenly about the circumference, uniform
Seal type	sealed on both sides
Seal Material	NBR (Nitrile Butadiene Rubber)
Rows NO.	One
m Weight [kg]	31.41
Performance Data
C_a Dynamic Axial	152000 N \| 152.000 KN
C_0a Static Axial	385000 N \| 385.000 KN
C_r Radial Dynamic	138000 N \| 138.000 KN
C_0r Radial Static	144000 N \| 144.000 KN
Operating temperature - T(min) [°C]	-25
Operating temperature - T(max) [°C]	80

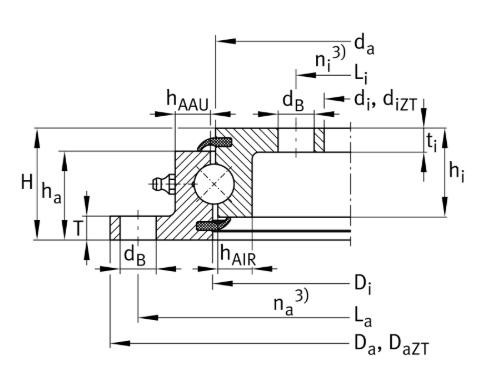

Dimensions
D_a Φ Outside Diameter [mm]	648
D_a Tolerance [mm]	-0.5
d_{i φ Bore Diameter [mm]}	434
d_i Tolerance [mm]	+0.5
D_i Inner diameter outer ring [mm]	545.5
D_i Tolerance [mm]	+0.5
d_a Outside diameter inner ring [mm]	542.5
d_a Tolerance [mm]	-0.5
Height - H [mm]	56
T Length centering inner ring [mm]	12
t Length centering inner ring [mm]	12
h_a Width outer ring [mm]	44.5
h_A Ring cross section [mm]	20
h_i Height of inner ring [mm]	44.5
Fixing holes
L_a Pitchcircle diameter fixing holes outer ring [mm]	620
n_a Number of fixing holes in outer ring	10
L_i Pitchcircle diameter fixing holes inner ring [mm]	462
n_i Number of fixing holes in inner ring	14
d_B Fixing bore [mm]	18
Fr _{zul Max} Radial load fixing screws	72500 N \| 72.500 KN
Gearing
Gear teeth type	without
Designation Breakdown
Radial internal clearance	Standard_VL = Standard radial clearance 0 to 0.5 and axial tilting clearance 0 to 0.7

The VLU 200544 Flange-type slewing bearings mainly consist of an inner or outer ring with a flange, another ring, rolling elements (steel balls or rollers), spacers, and sealing devices. The flange rings have mounting holes for direct bolt connection.

The flange structure of flange-type slewing bearings simplifies the installation process, eliminating the need for additional mounting seats, resulting in convenient assembly and precise positioning. They offer high overall rigidity, capable of simultaneously withstanding axial loads, radial loads, and overturning moments, while their compact structure saves space.
