VCG-8 Rod End (Shaft Dia: 0.5 Inch)
The VCG-8 bearing is a Rod Ends with an inner diameter of 0.5 inch , It typically uses Standard grade precision tolerances and its static radial rated load is approximately 7229 (Lbs). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Steering and shifting mechanisms, general purpose linkages, packaging equipment, and light-duty mechanical assemblies.
VCG-8 rod end, female threaded, left hand, low carbon steel body, alloy steel ball, steel backed, PTFE composite bushing, long service life, smooth articulation.
Bore Diameter: 0.5 Inch (12.7mm)
Thread Size: 1/2-20 UNF-2B
Thread Direction: Left Hand
Rod End Type: Female
HS Code: 8482109000
|
Rod End |
||
|
Part Number |
VCG-8 |
|
|
Thread Type |
Left Hand |
|
|
Thread Configuration |
Female |
|
|
Size |
Inch |
mm |
|
B - Ball Bore |
0.5 |
12.7 |
|
W - Ball Width |
0.625 |
15.88 |
|
H - Head Width |
0.453 |
11.5 |
|
A - Base to Center |
2.125 |
53.98 |
|
D - Head Diameter |
1.312 |
33.32 |
|
K - Shank Diameter |
0.875 |
22.23 |
|
J - Wrench Flat Width |
0.75 |
19.05 |
|
Ball Diameter |
0.875 |
22.23 |
|
C - Thread Length |
1.062 |
26.97 |
|
Thread UNF-2B |
1/2-20 |
|
|
a° Misalignment Angle |
16 |
|
|
Ultimate Radial Static Load Capacity (Lbs) |
7,229 |
|
|
Approximate Brg. Weight (Grams) |
132 |
|
Body - Low carbon steel - protective coated for corrosion resistance.
Ball - Alloy steel - heat treated - hard chrome plated.
Bushing - Steel backed, PTFE composite.
Left-hand threaded units have an identification groove near end of shank.
Studded configuration available upon request. Specify by adding suffix "S". Ex.: VCW-8S.
Applications:
Automotive: Steering and shifting mechanisms
Industrial & Automation: General purpose linkages, packaging equipment, and light-duty mechanical assemblies.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726
Share this product to:
Let more people see your product
-
- BRM50 Rod End (Size:50x117x243.5mm)
- BRM50 Heavy Duty Rod End Bearing Size: 50x117x243.5mm Bore Diameter Bearing (d): 50mm Outer Eye
-
- VCM-8 Rod End (Shaft Dia: 0.5 Inch)
- VCM-8 rod end, male threaded, right hand, low carbon steel body, alloy
-
- SA17ES Rod End (Size:17x46x92mm)
- SA17ES Heavy Duty Rod End Bearing Size: 17x46x92mm Bore Diameter Bearing (d): 17mm Outer Eye
-
- CM-10 Rod End (Shaft Dia: 0.625 Inch)
- CM-10 rod end, male threaded, right hand, a low carbon steel body
-
- 23134CA Spherical Roller Bearing 170x280x88mm
- 23134CA Roller Bearing / Spherical Roller Bearing Bearing Model No.: 23134CA Type: Spherical Roller
-
- NU2256 Cylindrical Roller Bearing 280x500x130mm
- NU2256 Cylindrical Roller Bearing Bearing Model No. : NU2256 Type: Cylindrical Roller Bearing Size:
-
- LRBZ141816 (Alt P/N: IR-141816, MI-14-N) Inch Size Roller Bearing Inner Ring
- LRBZ141816 Inner Race for Machined Type Needle Roller Bearing (Interchange Part No.:
-

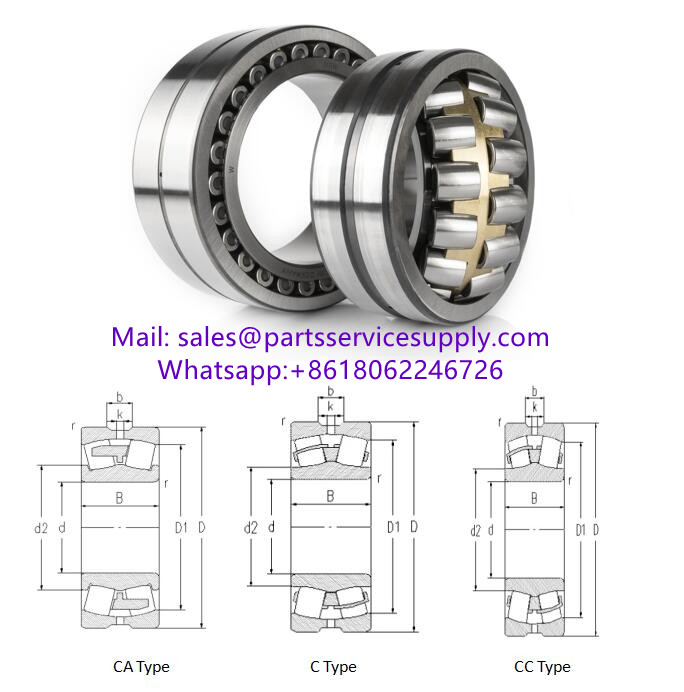

- 240/500CAF3/W33 (ID:500xOD:720xB:218mm) High Load Spherical Roller Bearing
