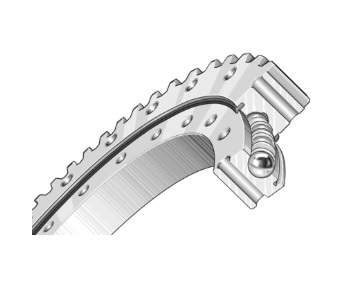

VA160235-N Four Point Contact Slewing Ring, External Teeth

🔍

VA160235-N

Bore Diameter:171 mm

Outside Diameter:318.6 mm

Width:40 mm

Weight:12.901 kg

Min. Order:1 Piece

The VA160235-N Single-row four-point contact ball slewing bearings are widely used in rotational applications requiring the ability to withstand combined loads (axial force, radial force, and overturning moment) and demanding a compact structure and low self-weight, such as engineering machinery (truck cranes, excavators), wind power generation (yaw bearings), port machinery, photovoltaic tracking systems, robotics, and medical devices.

The VA160235-N bearing is a Four point contact bearing, slewing ring, external teeth with an inner diameter of 171 mm , an outer diameter of 318.6 mm, a width of 40 mm. It typically uses P5, P6, P0 grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears axial, radial and tilting moment loads, Its dynamic radial rated load is approximately 112000 N, its static radial rated load is approximately 210000 N. Its dynamic axial rated load is approximately 123000 N, its static axial rated load is approximately 460000 N. sealed type, NBR (Nitrile Butadiene Rubber). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: VA 16 0235 N

Dimensions:

Inside Diameter:

171 mm

Outside Diameter:

318.6 mm

Thickness:

40 mm

Weight:

12.901 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

112000 N

Static load Capacity, Radial (Cor):

210000 N

Dynamic load Capacity, axial:

123000 N

Static load Capacity, axial:

460000 N

Specifications:

Structure:

Four point contact ball slewing bearings (External gear type)

Number of Rows:

One

Precision Rating:

P5, P6, P0

Load Direction:

axial, radial and tilting moment loads

Bearing Material:

50Mn,42CrMo

Seals Type:

sealed

Seal Material:

NBR (Nitrile Butadiene Rubber)

Rolling Mlement Material:

GCr15

Operating Temperature:

-25 to 80 °C

System of Measurement:

Metric

Series:

Rolling Element:

Balls

Gear Options:

external

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

10 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

VA160235-N bearings ( 171 mm x 318.6 mm x 40 mm) have the advantages of Compact structure, lightweight, small footprint, high cost-performance ratio, and are therefore widely used in the Robots, construction machinery, wind turbines, radar antennas, and various rotary worktables.

Part Number	VA160235-N
Bearing Type	Four point contact bearing, slewing ring, external teeth
Series	VA
Equivalent	VA 16 0235 N
Interchangeable	INA VA160235-N
Load direction	axial, radial and tilting moment loads
Lubrication nipples	4 taper type lubrication nipples, DIN 71412, arranged evenly about the circumference
Seal type	sealed
Seal Material	NBR (Nitrile Butadiene Rubber)
Rows NO.	One
m Weight [kg]	12.901
Performance Data
C_a Dynamic Axial	123000 N \| 123.000 KN
C_0a Static Axial	460000 N \| 460.000 KN
C_r Radial Dynamic	112000 N \| 112.000 KN
C_0r Radial Static	210000 N \| 210.000 KN
Operating temperature - T(min) [°C]	-25
Operating temperature - T(max) [°C]	80
Dimensions
D_a Φ Outside Diameter [mm]	318.6
d_{i φ Bore Diameter [mm]}	171
D_i Inner diameter outer ring [mm]	234
D_iZT Diameter centring outer ring [mm]	236
D_iZT Tolerance [mm]	+IT8
d_a Outside diameter inner ring [mm]	236
Height - H [mm]	40
h Height of individual ring [mm]	35
T Length centering inner ring [mm]	2.3
t Length centering inner ring [mm]	6
h_a Width outer ring [mm]	35
h_i Height of inner ring [mm]	35
Fixing holes
L_a Pitchcircle diameter fixing holes outer ring [mm]	275
n_a Number of fixing holes in outer ring	12
L_i Pitchcircle diameter fixing holes inner ring [mm]	195
n_i Number of fixing holes in inner ring	12
d_B Fixing bore [mm]	13
Fr _{zul Max} Radial load fixing screws	49600 N \| 49.600 KN
Gearing
Gearing type	N = Normalized gear teeth on bearing ring
Gear teeth type	external
Gear rings material	C45N or 42CrMo4V65 (suffix N)
b Width gearing [mm]	35
d₀ Pitch circle diameter gearing [mm]	312
m Module of gearing [mm]	4
z Number of teeth	78
F_{z norm} Tooth force	11000 N \| 11.000 KN
F_{z max} Tooth force	16100 N \| 16.100 KN
Designation Breakdown

The VA160235-N Single-row four-point contact ball slewing bearings mainly consist of an inner ring, an outer ring, steel balls, spacers, and a sealing device. The raceways are peach-shaped or arc-shaped, and the steel balls form four-point contact with the inner and outer ring raceways. Gears can be integrated into the inner and outer rings.

Single-row four-point contact ball slewing bearings feature a low axial height and light weight due to their single-row structure. One bearing can simultaneously withstand axial loads, radial loads, and overturning moments. The four-point contact design provides high load-bearing capacity, good rigidity, and easy installation and maintenance.
