UC213 Bore 65 Mm, Set Screw Locking UC 200 Series Wide Inner Ring, Insert Ball Bearings
The UC213 Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units.
The UC213 bearing is a Set Screw Locking UC 200 Series Wide Inner Ring Insert Ball Bearings with an inner diameter of 65 mm , an outer diameter of 120 mm, a width of 65.1 mm. Bearing Steel rings, Bearing Steel rolling mlement. Its dynamic radial rated load is approximately 57200 N, its static radial rated load is approximately 40100 N. Double Seal type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Interchange code: NSK UC213, ASAHI UC213, FYH UC213, NTN UC213D1, SKF YAR213-2F,
UC213 bearings ( 65 mm x 120 mm x 65.1 mm) have the advantages of Easy to install, self-aligning, maintenance-free., and are therefore widely used in the Conveying equipment, agricultural machinery, and fans.
| Part Number | UC213 |
| Bearing Type | Set Screw Locking UC 200 Series Wide Inner Ring Insert Ball Bearings |
| Interchangeable | TIMKEN UC213 |
| Locking Type | Set Screw |
| Set Screw Size | M12x1.5 |
| Angle between Set Screws | 120 ° |
| Outside Diameter Type | Spherical |
| Seal Type | Double Seal |
| Units | Metric |
| Number Of Balls | One |
| Number Of Set Screws | 2 |
| Radial Dynamic Capacity - Cr [lbf] | 12858 |
| Radial Static Capacity - C0r [lbf] | 9014 |
| Shaft Size | 65 mm |

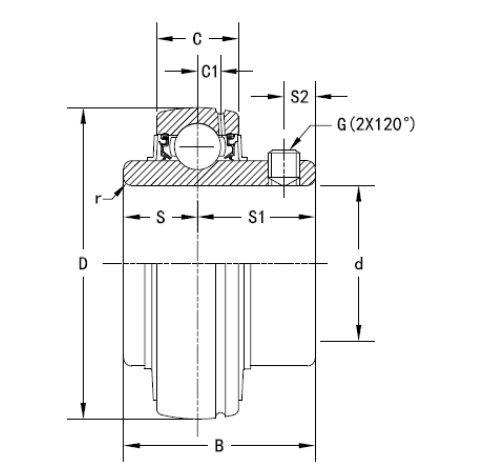

| Inside - d φ [inch] | 2.559 |
| Outside - D Φ [inch] | 4.724 |
| Inner Ring Width - B [inch] | 2.563 |
| Outer Ring Width - C [inch] | 1.102 |
| Groove Position - C1 [inch] | 0.295 |
| Set Screw Distance - S2 [inch] | 0.472 |
| Chamfer - r [inch] | 0.059 |
| Center of Bearing from End - S [inch] | 1.000 |
| S1 [inch] | 1.563 |
The UC213 Insert bearings primarily consist of a spherical outer ring, a wide inner ring, steel balls, a cage, and seals. The inner ring extends at one or both ends and is equipped with an eccentric sleeve or set screw for quick locking onto the shaft.
Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. feature self-aligning capabilities, compensating for installation misalignment and shaft deflection. The wide inner ring design allows for direct installation onto the shaft without additional steps. They offer excellent sealing performance, a compact structure, and easy assembly and disassembly.
