UC209 Bore 45 Mm, Set Screw Locking UC 200 Series Wide Inner Ring, Insert Ball Bearings
The UC209 Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units.

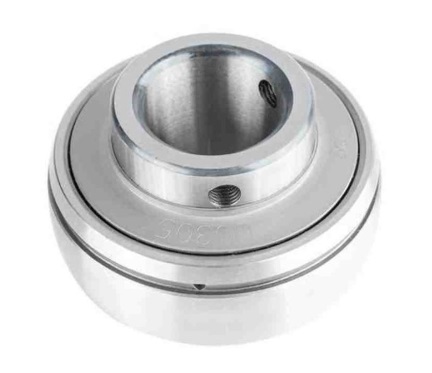

The UC209 bearing is a Set Screw Locking UC 200 Series Wide Inner Ring Insert Ball Bearings with an inner diameter of 45 mm , an outer diameter of 85 mm, a width of 49.2 mm. Bearing Steel rings, Bearing Steel rolling mlement. Its dynamic radial rated load is approximately 34100 N, its static radial rated load is approximately 21300 N. Double Seal type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Interchange code: NSK UC209, ASAHI UC209, FYH UC209, NTN UC209D1, FAG 56209, SKF YAR209-2F,
UC209 bearings ( 45 mm x 85 mm x 49.2 mm) have the advantages of Easy to install, self-aligning, maintenance-free., and are therefore widely used in the Conveying equipment, agricultural machinery, and fans.
| Part Number | UC209 |
| Bearing Type | Set Screw Locking UC 200 Series Wide Inner Ring Insert Ball Bearings |
| Interchangeable | TIMKEN UC209 |
| Locking Type | Set Screw |
| Set Screw Size | M8x1 |
| Angle between Set Screws | 120 ° |
| Outside Diameter Type | Spherical |
| Seal Type | Double Seal |
| Units | Metric |
| Number Of Balls | One |
| Number Of Set Screws | 2 |
| Radial Dynamic Capacity - Cr [lbf] | 7665 |
| Radial Static Capacity - C0r [lbf] | 4788 |
| Shaft Size | 45 mm |
| Inside - d φ [inch] | 1.772 |
| Outside - D Φ [inch] | 3.346 |
| Inner Ring Width - B [inch] | 1.937 |
| Outer Ring Width - C [inch] | 0.866 |
| Groove Position - C1 [inch] | 0.236 |
| Set Screw Distance - S2 [inch] | 0.315 |
| Chamfer - r [inch] | 0.043 |
| Center of Bearing from End - S [inch] | 0.748 |
| S1 [inch] | 1.189 |
The UC209 Insert bearings primarily consist of a spherical outer ring, a wide inner ring, steel balls, a cage, and seals. The inner ring extends at one or both ends and is equipped with an eccentric sleeve or set screw for quick locking onto the shaft.
Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. feature self-aligning capabilities, compensating for installation misalignment and shaft deflection. The wide inner ring design allows for direct installation onto the shaft without additional steps. They offer excellent sealing performance, a compact structure, and easy assembly and disassembly.
