U.1050.14 Bore 935 Mm, Truck / Trailer Slewing Ring, Without Gear

🔍

U.1050.14

Bore Diameter:935 mm

Outside Diameter:1050 mm

Width:65 mm

Weight:36 kg

Min. Order:1 Piece

The U.1050.14 Trailer slewing bearings are widely used in various trailers and agricultural vehicles, such as transport trailers, agricultural trailers, irrigation system slewing devices, airport baggage trailers, RV slewing mechanisms, and special-purpose trailers.

The U.1050.14 bearing is a Slewing rings with an inner diameter of 935 mm , an outer diameter of 1050 mm, a width of 65 mm. 50Mn or 42CrMo rings, GCr15 rolling mlement. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

935 mm

Outside Diameter:

1050 mm

Thickness:

65 mm

Weight:

36 KG

Specifications:

Structure:

Truck and trailer slewing ring bearings

Number of Rows:

One

Bearing Material:

50Mn or 42CrMo

Seals Type:

Open

Rolling Mlement Material:

GCr15

Operating Temperature:

-20 to 70 °C

System of Measurement:

Metric

Series:

U.14

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

U.1050.14 bearings ( 935 mm x 1050 mm x 65 mm) have the advantages of High load-bearing capacity, flexible steering, and durable, and are therefore widely used in the Heavy transport and special trailers, large agricultural machinery and trailers.

Part Number	U.1050.14
Gear type	Without Gear
Bearing Type	Slewing rings
Weight [kg]	36
Seal	Open
Interchangeable	TGB U.1050.14
G NO.	2

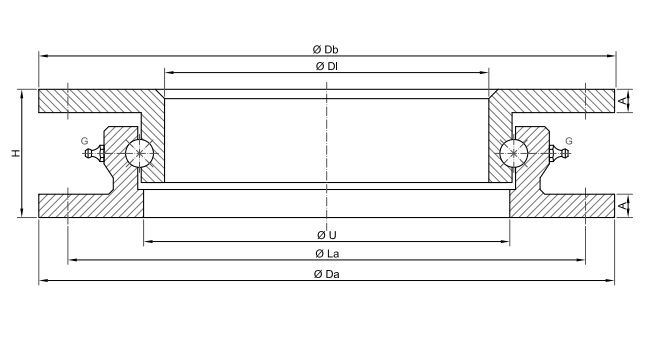

Dimensions
Ball diameter [mm]	14.288
Da [mm]	1050
Db [mm]	1050
U [mm]	960
Di [mm]	935
H [mm]	65
A [mm]	10
Fixing holes
La [mm]	1025
Axial Load [N]	45000

The U.1050.14 Trailer slewing bearings (lightweight slewing bearings) are mainly composed of thin-walled inner and outer rings, steel balls or rollers, spacers, and sealing devices. Mounting holes are provided on the inner and outer rings for bolt connection; some models can integrate gears. They feature a compact structure, lightweight design, and small cross-sectional dimensions.

Trailer slewing bearings are lightweight, rotate flexibly, and are easy to install and maintain. They can simultaneously withstand axial loads, radial loads, and overturning moments, possessing excellent load-bearing capacity. Direct bolt fixing eliminates the need for complex mounting seats, simplifying the connection structure between the trailer chassis and the superstructure.
