T811FS-T811SA Screwdown Bearings, Heavy-duty Thrust Tapered Roller Bearing With Two Tapered Raceways
The T811FS-T811SA Thrust tapered roller bearings are suitable for heavy-duty, high-rigidity axial load applications. Classic applications include crane slewing mechanisms, oil drilling rig rotary tables, rolling mill pressing mechanisms, heavy machine tool spindles, ship propeller thrust shafts, and the axial positioning ends of large gearboxes.
The T811FS-T811SA bearing is a thrust tapered roller bearing, screwdown bearings, Heavy-duty thrust tapered roller bearing with two tapered raceways with an inner diameter of 203.2 mm , an outer diameter of 422.275 mm, a width of 115.888 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. its static axial rated load is approximately 15076225 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
T811FS-T811SA bearings ( 203.2 mm x 422.275 mm x 115.888 mm) have the advantages of Withstanding extremely large and heavy unidirectional axial thrust, and are therefore widely used in the crane hooks, oil well swivels, pulp refiners.
| Part Number | T811FS-T811SA |
| Design type | TTHDSX-1: One lower tapered race with axial bore; One upper tapered race with a special convex profile. |
| Bearing Type | thrust tapered roller bearing, screwdown bearings, Heavy-duty thrust tapered roller bearing with two tapered raceways |
| Interchangeable | TIMKEN T811FS-T811SA |
| Manufacturer Part Code | T811FS-T811SA |
| Units | Inch |
| Tolerance class | PN (ABEC-1) |
| C0a Axial Static [lbf] | 3389135 |
| d φ Inside [inch] | 8.0000 |
| D Φ Outside [inch] | 16.6250 |
| T Width [inch] | 4.5625 |
| Rs [inch] | 32.9999 |
| rs max [inch] | 0.3819 |
| D1 [inch] | 16.5000 |
| H Screw Extension Diameter [inch] | 13.5000 |
| R (Max) Shaft Fillet Radius [inch] | 0.3819 |
| Weight [lb] | 234.3490 |
| Tolerance Table | 9, 10, 11 |

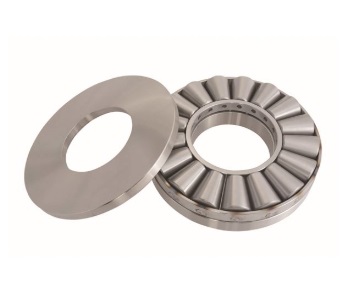

The T811FS-T811SA Thrust tapered roller bearings mainly consist of a shaft ring, a housing ring, tapered rollers, and a cage. The raceways of the shaft ring and housing ring have a conical surface structure, and the rollers make line contact with the raceways. The cage is typically made of machined brass or stamped steel to ensure proper roller guidance.
Thrust tapered roller bearings can withstand enormous unidirectional axial loads and also possess a certain radial load-bearing capacity, far exceeding that of thrust ball bearings. They offer high rigidity, strong impact resistance, and precise axial positioning and preload can be achieved through the tapered roller structure.
