T10250F Double-acting Thrust Tapered Roller Bearing

🔍

T10250F

Bore Diameter:260.35 mm

Outside Diameter:584.124 mm

Width:222.25 mm

Weight:132 kg

Min. Order:1 Piece

The T10250F Thrust angular contact ball bearings are mainly suitable for applications requiring high speed, low friction, and simultaneous axial and certain radial loads, such as fluid control valves, machine tool worktables and spindles, and rotary tables in the oil and gas drilling industry.

The T10250F bearing is a Double-acting thrust tapered roller bearing with an inner diameter of 260.35 mm , an outer diameter of 584.124 mm, a width of 222.25 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. its static axial rated load is approximately 21596424 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

260.35 mm

Outside Diameter:

584.124 mm

Thickness:

222.25 mm

Weight:

132 KG

Static load Capacity, axial:

21596424 N

Specifications:

Structure:

Thrust Tapered Roller Bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

bearing steel

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

Inch

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

T10250F bearings ( 260.35 mm x 584.124 mm x 222.25 mm) have the advantages of Composite load, high speed, high rigidity, and are therefore widely used in the rotary tables of oil and gas drilling rigs.

Part Number	T10250F
Design type	TTDW: Two single flat outer races; One double tapered inner race with extended ribs; Oil slots on double race faces.
Bearing Type	Double-acting thrust tapered roller bearing
Interchangeable	TIMKEN T10250F
Manufacturer Part Code	T10250F
Units	Inch
Tolerance class	PN (ABEC-1)
Thrust Race Number	Single
Cage type	P
C_0a Axial Static [lbf]	4854876
Ca1 Dynamic (1 Million Revolutions) [lbf]	1251393
Ca90 Dynamic (90 Million Revolutions) [lbf]	325509

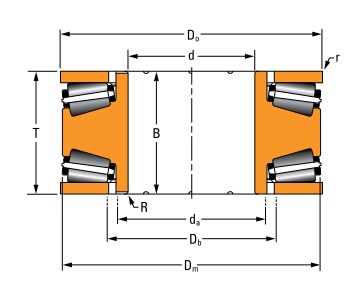

d φ Inside [inch]	10.2500
D_o [inch]	22.9970
D_m [inch]	21.0000
T Width [inch]	8.7500
B [inch]	8.7500
r Fillet Radius [inch]	0.0787
R (Max) Shaft Fillet Radius [inch]	0.2795
d_a Mounting dimensions [inch]	12.0000
D_b Mounting dimensions [inch]	14.0000
Weight [lb]	291.0072

The T10250F Thrust angular contact ball bearings are mainly composed of precision-ground steel balls, hardened and ground steel raceways, and a brass (or bronze) cage. Their core characteristic is their ability to simultaneously withstand axial thrust loads and a certain amount of radial load, and they also feature low friction, quiet operation, and suitability for high-speed operation.
