Sumitomo SH200A3 Slewing Bearing

🔍

Sumitomo SH200A3

Bore Diameter:1093 mm

Outside Diameter:1330 mm

Width:92 mm

Weight:102 kg

The Sumitomo SH200A3 bearing is a slewing bearing with an inner diameter of 1093 mm , an outer diameter of 1330 mm, a width of 92 mm. It typically uses P0,P6,P5 grade precision tolerances and open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

1093 mm

Outside Diameter:

1330 mm

Thickness:

92 mm

Weight:

102 KG

Specifications:

Structure:

slew bearing

Brand:

jiawei

Precision Rating:

P0,P6,P5

Bearing Material:

42CrMo,50Mn

Seals Type:

open

Transaction Information:

Payment term:

T/T,L/C

Delivery time:

one day after receiving your payment

Detailed description

TYPE:Sumitomo SH200A3 Slewing Bearing

Outter Diameter : 1330mm

Inner Diameter :1093mm

Total Height:102mm

Outter Ring Height :74mm

Inner Ring Height :92mm

Outter Ring Hole:31.5-M22.5

Inner Ring Hole: 36-M20*7H equal

Teeth No.:92pcs

Share this product to:

Let more people see your product

How can you buy Sumitomo SH200A3 Slewing Bearing on the Internet?
High quality Sumitomo SH200A3 ( 102 kg Mass, ID: 1093 mm OD: 1330 mm WD: 92 mm , P0,P6,P5 Accuracy Class , 42CrMo,50Mn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. Sumitomo SH200A3. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- NBL.20.0944.200-1PPN Slewing Bearing/Slewing Ring Bearing With Size:1048*834*45.5mm
- NBL.20.0944.200-1PPN Slewing Bearing/Slewing Ring Bearing With Size:1048*834*45.5mm, Slewing Bearing/Slewing Ring Bearing With
- 08 0270 04 Slewing Ring Bearing/Swing Bearing
- 08 0270 04 Slewing Ring Bearing/Swing Bearing in stock.
- 1797/3230G2 cross roller slewing bearing
- Single row cross slewing bearing 1797/3230G2 is made from two rings,compact form,light

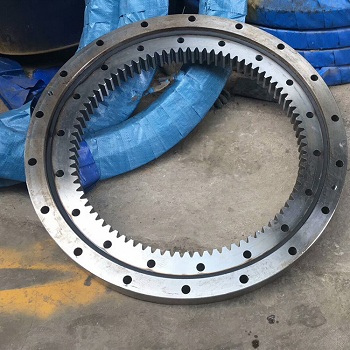

- KUD01500-030VJ15-900-000 slewing bearing with internal gear teeth 1608*1334.4*84mm
