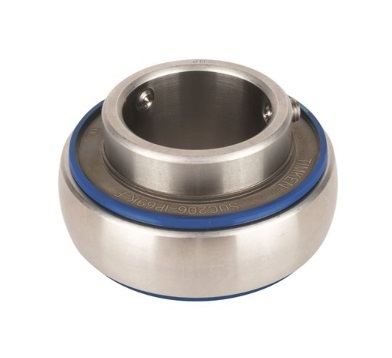

SUC210-30-IP69K/F Bore 47.625 Mm, Set Screw Locking Stainless Steel, Insert Ball Bearing (Wide Inner Ring)
The SUC210-30-IP69K/F Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units.
The SUC210-30-IP69K/F bearing is a Set Screw Locking Stainless Steel Insert Ball Bearing (Wide Inner Ring) with an inner diameter of 47.625 mm , an outer diameter of 90 mm, a width of 51.6 mm. Stainless steel rings, Bearing Steel rolling mlement. IP69K Seal type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
SUC210-30-IP69K/F bearings ( 47.625 mm x 90 mm x 51.6 mm) have the advantages of Easy to install, self-aligning, maintenance-free., and are therefore widely used in the Conveying equipment, agricultural machinery, and fans.
| Part Number | SUC210-30-IP69K/F |
| Bearing Type | Set Screw Locking Stainless Steel Insert Ball Bearing (Wide Inner Ring) |
| Interchangeable | TIMKEN SUC210-30-IP69K/F |
| Lubrication Type | Standard Food Safe Grease |
| Locking Type | Set Screw |
| Set Screw Size | M8x1 |
| Angle between Set Screws | 120 ° |
| Outside Diameter Type | Spherical |
| Seal Type | IP69K Seal |
| Units | Inch |
| Number Of Balls | One |
| Number Of Set Screws | 2 |
| Shaft Size | 1.875 inch |
| Inside - d φ [inch] | 1.875 |
| Outside - D Φ [inch] | 3.543 |
| Inner Ring Width - B [inch] | 2.031 |
| Outer Ring Width - C [inch] | 0.945 |
| Groove Position - C1 [inch] | 0.236 |
| Set Screw Distance - S2 [inch] | 0.354 |
| Chamfer - r [inch] | 0.043 |
| Center of Bearing from End - S [inch] | 0.748 |
| S1 [inch] | 1.283 |
The SUC210-30-IP69K/F Insert bearings primarily consist of a spherical outer ring, a wide inner ring, steel balls, a cage, and seals. The inner ring extends at one or both ends and is equipped with an eccentric sleeve or set screw for quick locking onto the shaft.
Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. feature self-aligning capabilities, compensating for installation misalignment and shaft deflection. The wide inner ring design allows for direct installation onto the shaft without additional steps. They offer excellent sealing performance, a compact structure, and easy assembly and disassembly.
