SM1211KTS Bore 67.73418 Mm, Eccentric Locking Collar Wide Inner Ring, Insert Ball Bearing
The SM1211KTS Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units.
The SM1211KTS bearing is a Eccentric Locking Collar Wide Inner Ring Insert Ball Bearing with an inner diameter of 67.73418 mm , an outer diameter of 125 mm, a width of 68.26 mm. Bearing Steel rings, Bearing Steel rolling mlement. Its dynamic radial rated load is approximately 68947 N, its static radial rated load is approximately 43992 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
SM1211KTS bearings ( 67.73418 mm x 125 mm x 68.26 mm) have the advantages of Easy to install, self-aligning, maintenance-free., and are therefore widely used in the Conveying equipment, agricultural machinery, and fans.
| Part Number | SM1211KTS |
| Bearing Type | Eccentric Locking Collar Wide Inner Ring Insert Ball Bearing |
| Basic Outer Ring Size | 214 |
| Application Series | Industrial |
| Interchangeable | FAFNIR SM1211KTS |
| Lubrication Type | Non-Relubricatable |
| Collar Number | S1211KT |
| Locking Type | Eccentric |
| Set Screw Size | 1/2-13 |
| Angle between Set Screws | 90 ° |
| Outside Diameter Type | Spherical |
| Seal Type | Open |
| Units | inch |
| Number Of Balls | One |
| Number Of Set Screws | 2 |
| Radial Dynamic Capacity - Cr [lbf] | 15499 |
| Radial Static Capacity - C0r [lbf] | 9889 |
| Shaft Size | 2.6667 inch |

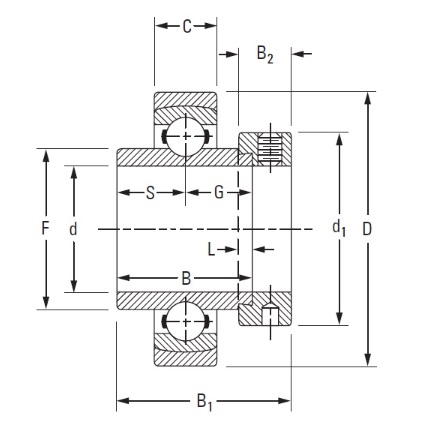

| Inside - d φ [inch] | 2.667 |
| Outside - D Φ [inch] | 4.921 |
| Inner Ring Width - B [inch] | 2.687 |
| Outer Ring Width - C [inch] | 0.945 |
| d1 [inch] | 3.762 |
| B1 [inch] | 3.371 |
| B2 [inch] | 0.937 |
| F [inch] | 3.422 |
| Chamfer - r [inch] | 0.059 |
| Center of Bearing from End - S [inch] | 1.342 |
| D1 [inch] | 3.762 |
The SM1211KTS Insert bearings primarily consist of a spherical outer ring, a wide inner ring, steel balls, a cage, and seals. The inner ring extends at one or both ends and is equipped with an eccentric sleeve or set screw for quick locking onto the shaft.
Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. feature self-aligning capabilities, compensating for installation misalignment and shaft deflection. The wide inner ring design allows for direct installation onto the shaft without additional steps. They offer excellent sealing performance, a compact structure, and easy assembly and disassembly.
