SM1201K Bore 52.3875 Mm, Eccentric Locking Collar Wide Inner Ring, Insert Ball Bearing
The SM1201K Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units.
The SM1201K bearing is a Eccentric Locking Collar Wide Inner Ring Insert Ball Bearing with an inner diameter of 52.3875 mm , an outer diameter of 100 mm, a width of 55.56 mm. Bearing Steel rings, Bearing Steel rolling mlement. Its dynamic radial rated load is approximately 48000 N, its static radial rated load is approximately 28500 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
SM1201K bearings ( 52.3875 mm x 100 mm x 55.56 mm) have the advantages of Easy to install, self-aligning, maintenance-free., and are therefore widely used in the Conveying equipment, agricultural machinery, and fans.
| Part Number | SM1201K |
| Bearing Type | Eccentric Locking Collar Wide Inner Ring Insert Ball Bearing |
| Basic Outer Ring Size | 211 |
| Application Series | Industrial |
| Interchangeable | FAFNIR SM1201K |
| Lubrication Type | Non-Relubricatable |
| Collar Number | S1201K |
| Locking Type | Eccentric |
| Angle between Set Screws | 90 ° |
| Outside Diameter Type | Cylindrical |
| Seal Type | Open |
| Units | inch |
| Number Of Balls | One |
| Number Of Set Screws | 2 |
| Radial Dynamic Capacity - Cr [lbf] | 10790 |
| Radial Static Capacity - C0r [lbf] | 6406 |
| Shaft Size | 2.0625 inch |
| Inside - d φ [inch] | 2.062 |
| Outside - D Φ [inch] | 3.937 |
| Inner Ring Width - B [inch] | 2.187 |
| Outer Ring Width - C [inch] | 0.827 |
| d1 [inch] | 3.000 |
| B1 [inch] | 2.811 |
| B2 [inch] | 0.811 |
| F [inch] | 2.747 |
| G [inch] | 1.094 |
| L [inch] | 0.189 |
| Chamfer - r [inch] | 0.024 |
| Center of Bearing from End - S [inch] | 1.094 |
| D1 [inch] | 3.000 |

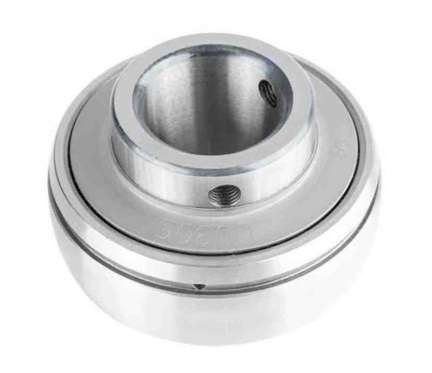

The SM1201K Insert bearings primarily consist of a spherical outer ring, a wide inner ring, steel balls, a cage, and seals. The inner ring extends at one or both ends and is equipped with an eccentric sleeve or set screw for quick locking onto the shaft.
Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. feature self-aligning capabilities, compensating for installation misalignment and shaft deflection. The wide inner ring design allows for direct installation onto the shaft without additional steps. They offer excellent sealing performance, a compact structure, and easy assembly and disassembly.
