SD.850.20.00.C Bore 634 Mm, Slewing Rings, Without Gear

🔍

SD.850.20.00.C

Bore Diameter:634 mm

Outside Diameter:848 mm

Width:56 mm

Weight:43 kg

Min. Order:1 Piece

The SD.850.20.00.C Flanged-type slewing bearings are widely used in Scenarios that require equipment weight, installation space, and rotational flexibility, but have medium or low load-bearing requirements, such as industrial robots (wrist joints), machine tools (tool magazines, turntables), automated equipment (robotic arms), medical equipment (surgical robots), packaging equipment, and aerospace (antenna drive mechanisms), among other fields.

The SD.850.20.00.C bearing is a Slewing rings with an inner diameter of 634 mm , an outer diameter of 848 mm, a width of 56 mm. 50Mn or 42CrMo rings, GCr15 rolling mlement. Double sealed type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

634 mm

Outside Diameter:

848 mm

Thickness:

56 mm

Weight:

43 KG

Specifications:

Structure:

Light load slewing bearings (No gear type)

Number of Rows:

One

Bearing Material:

50Mn or 42CrMo

Seals Type:

Double sealed

Rolling Mlement Material:

GCr15

Operating Temperature:

-20 to 70 °C

System of Measurement:

Metric

Series:

SD.20.C

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

SD.850.20.00.C bearings ( 634 mm x 848 mm x 56 mm) have the advantages of Lightweight, compact, flexible in operation, with good load-bearing capacity, and easy to install, and are therefore widely used in the Industrial robots, medical equipment (CT scanner), packaging machinery.

Part Number	SD.850.20.00.C
Gear type	Without Gear
Bearing Type	Slewing rings
Weight [kg]	43
Seal	Double sealed
Seal Material	NBR (Nitrile Butadiene Rubber)
Interchangeable	TGB SD.850.20.00.C
G NO.	NO.(4) x Greasenipples DIN 71412 AM 8x1 equally-spaced

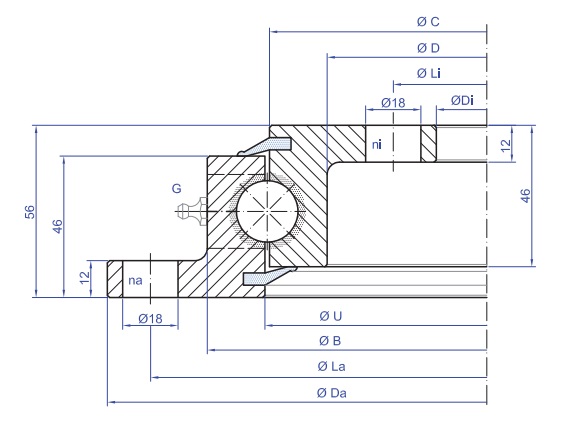

Dimensions
Da [mm]	848
B [mm]	783
U [mm]	745.5
C [mm]	742.5
D [mm]	705
Di [mm]	634
H [mm]	56
Fixing holes
La [mm]	820
na NO.	12
Li [mm]	662
ni NO.	16

The SD.850.20.00.C Flange-type slewing bearings mainly consist of an inner or outer ring with a flange, another ring, rolling elements (steel balls or rollers), spacers, and sealing devices. The flange rings have mounting holes for direct bolt connection.

The flange structure of flange-type slewing bearings simplifies the installation process, eliminating the need for additional mounting seats, resulting in convenient assembly and precise positioning. They offer high overall rigidity, capable of simultaneously withstanding axial loads, radial loads, and overturning moments, while their compact structure saves space.
