SD.329.20.00.D.1 Bore 192 Mm, Slewing Rings, Without Gear

🔍

SD.329.20.00.D.1

Bore Diameter:192 mm

Outside Diameter:328 mm

Width:45 mm

Weight:18 kg

Min. Order:1 Piece

The SD.329.20.00.D.1 Single-row four-point contact ball slewing bearings are widely used in rotational applications requiring the ability to withstand combined loads (axial force, radial force, and overturning moment) and demanding a compact structure and low self-weight, such as engineering machinery (truck cranes, excavators), wind power generation (yaw bearings), port machinery, photovoltaic tracking systems, robotics, and medical devices.

The SD.329.20.00.D.1 bearing is a Slewing rings with an inner diameter of 192 mm , an outer diameter of 328 mm, a width of 45 mm. 50Mn or 42CrMo rings, GCr15 rolling mlement. Double sealed type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

192 mm

Outside Diameter:

328 mm

Thickness:

45 mm

Weight:

18 KG

Specifications:

Structure:

Four point contact ball slewing bearings (No gear type)

Number of Rows:

One

Bearing Material:

50Mn or 42CrMo

Seals Type:

Double sealed

Rolling Mlement Material:

GCr15

Operating Temperature:

-20 to 70 °C

System of Measurement:

Metric

Series:

SD.14-20-25.D

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

SD.329.20.00.D.1 bearings ( 192 mm x 328 mm x 45 mm) have the advantages of Compact structure, lightweight, small footprint, high cost-performance ratio, and are therefore widely used in the Robots, construction machinery, wind turbines, radar antennas, and various rotary worktables.

Part Number	SD.329.20.00.D.1
Gear type	Without Gear
Bearing Type	Slewing rings
Weight [kg]	18
Seal	Double sealed
Seal Material	NBR (Nitrile Butadiene Rubber)
Interchangeable	TGB SD.329.20.00.D.1

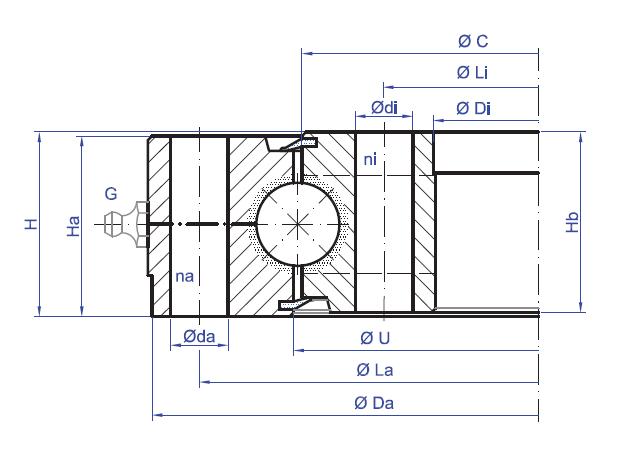

Dimensions
Da [mm]	328
U [mm]	262
C [mm]	258
Di [mm]	192
Ha [mm]	45
Hb [mm]	45
H [mm]	45
Fixing holes
La [mm]	305
na NO.	16
da [mm]	14
Li [mm]	215
ni NO.	16
di [mm]	14

The SD.329.20.00.D.1 Single-row four-point contact ball slewing bearings mainly consist of an inner ring, an outer ring, steel balls, spacers, and a sealing device. The raceways are peach-shaped or arc-shaped, and the steel balls form four-point contact with the inner and outer ring raceways. Gears can be integrated into the inner and outer rings.

Single-row four-point contact ball slewing bearings feature a low axial height and light weight due to their single-row structure. One bearing can simultaneously withstand axial loads, radial loads, and overturning moments. The four-point contact design provides high load-bearing capacity, good rigidity, and easy installation and maintenance.
