SC075ARO Bore 7.5 Inch, Imperial Open Type A, Angular Contact Ball Bearings
The SC075ARO Thin-section angular contact ball bearings are primarily used in applications with stringent requirements for weight, space, and precision, such as aerospace gyroscopes, robotic joints, medical CT scanner gantries, machine tool spindles, semiconductor manufacturing equipment, optical instruments (e.g., telescopes), and precision rotary tables.
The SC075ARO bearing is a Inch Open Type A Angular Contact Ball Bearings with an inner diameter of 7.5 inch , an outer diameter of 8.25 inch, a width of 0.375 inch. It typically uses ISO Class NORMAL / ABEC-1 grade precision tolerances and AISI 52100 Steel rings, AISI 52100 Steel rolling mlement. Its dynamic radial rated load is approximately 1640 N, its static radial rated load is approximately 4630 N. Its dynamic axial rated load is approximately 18326 N, its static axial rated load is approximately 59514 N. Open (No seal) type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Interchange code: KAYDON KDY.KC075AR0, SILVERTHIN SC075AR0, SKF FPAC708, FAG L15SA708, NSK NBA19009, INA CSEC075, SSB RC075AR0, NTN KYC075
SC075ARO bearings ( 7.5 inch x 8.25 inch x 0.375 inch) have the advantages of Extremely compact, lightweight design, composite load-bearing capacity, high rigidity, and flexible installation, and are therefore widely used in the Robot joints, aerospace, semiconductor equipment, medical instruments and optoelectronic turntables.
| Part Number | SC075ARO |
| Bore | Cylindrical |
| Balls | standard 3/16" balls |
| Bearing Type | Inch Open Type A Angular Contact Ball Bearings |
| Cage | Brass; one piece pocket separator |
| Series | SC SERIES 3/8" X 3/8" |
| Race Width Tolerance | +0.000 -0.005" |
| Contact angle [°] | 30 |
| Temperature - T(min) [°C] | -30 |
| Temperature - T(max) [°C] | 110 |
| Seal type | Open (No seal) |
| Units | Inch |
| Load | radial, axial, moment and combined loads |
| Rolling Element Type | Balls |
| Ball Material | AISI 52100 Steel |
| Rolling Element Material | AISI 52100 Steel |
| Precision Class | ISO Class NORMAL / ABEC-1 |
| Equivalent | KAYDON KDY.KC075AR0 SILVERTHIN SC075AR0 SKF FPAC708 FAG L15SA708 NSK NBA19009 INA CSEC075 SSB RC075AR0 NTN KYC075 |
| Interchangeable | SILVER THIN SC075ARO |
| Rows NO. | One |

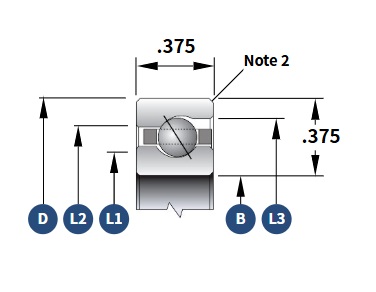

| L1 Land Diameter [inch] | 7.777 |
| L2 Land Diameter [inch] | 7.973 |
| L3 Land Diameter [inch] | 8.048 |
| Fillet radius (Note 2) max | 0.040" |
| RADIAL DYNAMIC [lbf] | 1640 |
| RADIAL STATIC [lbf] | 4630 |
| THRUST DYNAMIC [lbf] | 4119 |
| THRUST STATIC [lbf] | 13378 |
| APPROX WEIGHT [lb] | 0.78 |
The SC075ARO Thin-section angular contact ball bearings mainly consist of a thin-walled inner ring, a thin-walled outer ring, steel balls, and a cage. Their cross-sectional dimensions are constant and extremely thin, with contact angles typically of 15°, 25°, or 30°, making them suitable for space-constrained installations.
Thin-section angular contact ball bearings utilize a thin-walled, constant cross-section design, resulting in lightweight construction and a small footprint, effectively reducing the overall weight of equipment. They can simultaneously withstand radial and axial loads, possessing high rigidity, high-speed capability, and good positioning accuracy, and are easy to install.
