SB100ARO Bore 10 Inch, Imperial Open Type A, Angular Contact Ball Bearings
The SB100ARO Thin-section angular contact ball bearings are primarily used in applications with stringent requirements for weight, space, and precision, such as aerospace gyroscopes, robotic joints, medical CT scanner gantries, machine tool spindles, semiconductor manufacturing equipment, optical instruments (e.g., telescopes), and precision rotary tables.
The SB100ARO bearing is a Inch Open Type A Angular Contact Ball Bearings with an inner diameter of 10 inch , an outer diameter of 10.625 inch, a width of 0.3125 inch. It typically uses ISO Class NORMAL / ABEC-1 grade precision tolerances and AISI 52100 Steel rings, AISI 52100 Steel rolling mlement. Its dynamic radial rated load is approximately 1460 N, its static radial rated load is approximately 4890 N. Its dynamic axial rated load is approximately 16724 N, its static axial rated load is approximately 62806 N. Open (No seal) type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Interchange code: KAYDON KDY.KB100AR0, SILVERTHIN SB100AR0, SKF FPAB1000, FAG L15RA1000, NSK NBA25407, INA CSEB100, SSB RB100AR0, NTN KYB100
SB100ARO bearings ( 10 inch x 10.625 inch x 0.3125 inch) have the advantages of Extremely compact, lightweight design, composite load-bearing capacity, high rigidity, and flexible installation, and are therefore widely used in the Robot joints, aerospace, semiconductor equipment, medical instruments and optoelectronic turntables.
| Part Number | SB100ARO |
| Bore | Cylindrical |
| Balls | standard 5/32" balls |
| Bearing Type | Inch Open Type A Angular Contact Ball Bearings |
| Cage | Brass; one piece pocket separator |
| Series | SB SERIES 5/16" X 5/16" |
| Race Width Tolerance | +0.000 -0.005" |
| Contact angle [°] | 30 |
| Temperature - T(min) [°C] | -30 |
| Temperature - T(max) [°C] | 110 |
| Seal type | Open (No seal) |
| Units | Inch |
| Load | radial, axial, moment and combined loads |
| Rolling Element Type | Balls |
| Ball Material | AISI 52100 Steel |
| Rolling Element Material | AISI 52100 Steel |
| Precision Class | ISO Class NORMAL / ABEC-1 |
| Equivalent | KAYDON KDY.KB100AR0 SILVERTHIN SB100AR0 SKF FPAB1000 FAG L15RA1000 NSK NBA25407 INA CSEB100 SSB RB100AR0 NTN KYB100 |
| Interchangeable | SILVER THIN SB100ARO |
| Rows NO. | One |

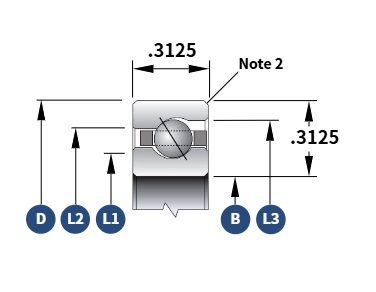

| L1 Land Diameter [inch] | 10.231 |
| L2 Land Diameter [inch] | 10.393 |
| L3 Land Diameter [inch] | 10.449 |
| Fillet radius (Note 2) max | 0.040" |
| RADIAL DYNAMIC [lbf] | 1460 |
| RADIAL STATIC [lbf] | 4890 |
| THRUST DYNAMIC [lbf] | 3759 |
| THRUST STATIC [lbf] | 14118 |
| APPROX WEIGHT [lb] | 0.73 |
The SB100ARO Thin-section angular contact ball bearings mainly consist of a thin-walled inner ring, a thin-walled outer ring, steel balls, and a cage. Their cross-sectional dimensions are constant and extremely thin, with contact angles typically of 15°, 25°, or 30°, making them suitable for space-constrained installations.
Thin-section angular contact ball bearings utilize a thin-walled, constant cross-section design, resulting in lightweight construction and a small footprint, effectively reducing the overall weight of equipment. They can simultaneously withstand radial and axial loads, possessing high rigidity, high-speed capability, and good positioning accuracy, and are easy to install.
