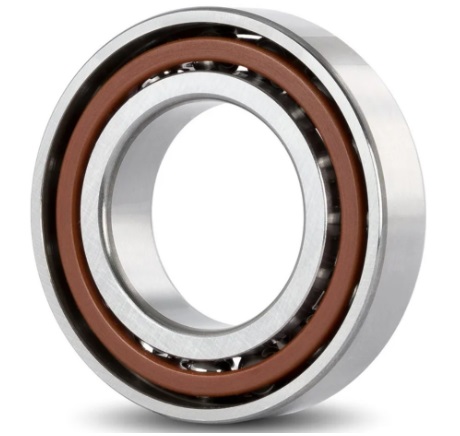

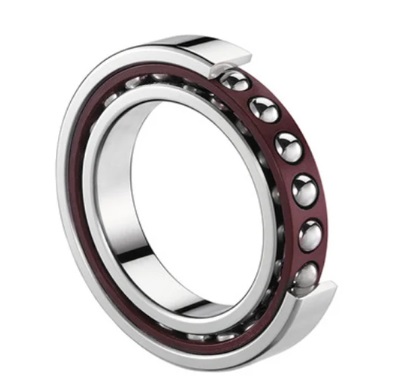

S7011CD/P4ADBB Super-precision Angular Contact Ball Bearings, 15° Contact Angle, High-capacity Design
The S7011CD/P4ADBB Ultra-precision angular contact ball bearings are widely used in conventional high-speed precision machining applications, such as machining center spindles, milling machine spindles, grinding machine spindles, lathe spindles, woodworking machinery, and ball screw support mechanisms.
The S7011CD/P4ADBB bearing is a super-precision angular contact ball bearings with an inner diameter of 55 mm , an outer diameter of 90 mm, a width of 36 mm. It typically uses P4A grade precision tolerances and Carbon chromium steel rings, GCr15SiMn rolling mlement. Its dynamic radial rated load is approximately 63544 N, its static radial rated load is approximately 65330 N. S = Seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
S7011CD/P4ADBB bearings ( 55 mm x 90 mm x 36 mm) have the advantages of High speed, ultra-precision, high rigidity, low operating friction, and long service life, and are therefore widely used in the Machine tool spindles, high-speed motors, ball screws, industrial robots and precision rotating equipment.
| Part Number | S7011CD/P4ADBB |
| Bearing Type | super-precision angular contact ball bearings |
| Internal design | CD = 15° contact angle, high-capacity design |
| Series | S70..-CD/P4A |
| Weight [kg] | 0.76 |
| Units | Metric |
| Contact type | 2-point contact |
| Accuracy class | P4A |
| Rows NO. | 2 |
| Cage | Cotton fabric reinforced phenolic resin or carbon fibre reinforced PEEK, outer ring centred |
| Dimension series | ISO dimension series 10 |
| Contact angle - α | 15 ° |
| Manufacturer Part Code | S7011 CD/P4ADBB |
| Bore Type | Z = Cylindrical Bore |
| Ring material | Carbon chromium steel |
| Ball material | GCr15SiMn |
| Balls qty（single row） | 18 |
| Temperature - T(min) [°C] | -30 |
| Temperature - T(max) [°C] | +110 |
| Bearing set arrangement and preload | DBB = Set of two bearings arranged back-to-back < >, Light preload |
| Ring type | inner rings(1 piece), outer rings(1 piece) |
| Load Direction | Angular Contact |
| Seal type | S = Seal on both sides |
| Grease quantity - Gref [cm3] | 5.1 |
| f0 Calculation coefficient | 15.1 |
| Dimension | |
| d φ Inside [inch] | 2.165 |
| D Φ Outside [inch] | 3.543 |
| B Width [inch] | 1.417 |
| r1,r2(min.) Chamfer [inch] | 0.043 |
| r3,r4(min.) Chamfer [inch] | 0.024 |
| ra(max.) Fillet [inch] | 0.039 |
| rb(max.) Fillet [inch] | 0.024 |
| d1 [inch] | 2.591 |
| d2 [inch] | 2.591 |
| D1 [inch] | 3.118 |
| D2 [inch] | 3.220 |
| Balls diameter [inch] | 0.437 |
| Performance (Load Capacity and speeds) | |
| Cr Dynamic Radial [lbf] | 14284 |
| C0r Static Radial [lbf] | 14686 |
| Pu Fatigue Radial [lbf] | 614 |
| Attainable speeds (Grease) [r/min] | 14936 |
| Attainable speeds (Oil-air) [r/min] | 23923 |
| Abutment dimensions | |
| da(min.) [inch] | 2.402 |
| db(min.) [inch] | 2.402 |
| Da(max.) [inch] | 3.307 |
| Db(max.) [inch] | 3.417 |
| dn [inch] | 2.681 |
The S7011CD/P4ADBB Ultra-precision angular contact ball bearings are primarily composed of high-precision bearing steel inner and outer rings, steel balls, and a cage. The cage is available in ball-guided polyamide cages (silent series) or brass cages. Contact angles are available in various specifications, including 15°, 25°, and 40°, with precision grades reaching P4 and above.
Ultra-precision angular contact ball bearings offer a cost advantage while maintaining high rigidity and high speed. The silent series uses ball-guided polyamide cages, significantly reducing rotational noise and vibration. Optimized tolerance ranges result in more uniform load distribution in bearing groups, superior radial stiffness, and smooth and reliable operation.
