S6002-2RS-FD Deep Groove Ball Bearings 2RS Design

🔍

S6002-2RS-FD

Bore Diameter:15 mm

Outside Diameter:32 mm

Width:9 mm

Weight:0.03 kg

Min. Order:1 Piece

The S6002-2RS-FD Stainless steel deep groove ball bearings are widely used in fields with stringent requirements for corrosion resistance and cleanliness, such as: food processing equipment (mixers, filling machines), medical devices (surgical instruments, dental handpieces), chemical pumps, marine engineering (ship equipment), pharmaceutical machinery, and semiconductor equipment (cleaning devices).

The S6002-2RS-FD bearing is a Deep groove ball bearings 2RS design with an inner diameter of 15 mm , an outer diameter of 32 mm, a width of 9 mm. It typically uses PN grade precision tolerances and GCr15SiMn rings, S = Stainless steel rolling mlement. Its dynamic radial rated load is approximately 5536 N, its static radial rated load is approximately 2793 N. It uses CN standard radial clearance, 2RS = Contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

15 mm

Outside Diameter:

32 mm

Thickness:

9 mm

Weight:

0.03 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

5536 N

Static load Capacity, Radial (Cor):

2793 N

Fatigue Load Limit, Radial:

120 N

Limiting speed (Oil rpm):

14973

Specifications:

Structure:

Stainless steel deep groove ball bearings

Number of Rows:

one

Radial Clearance Trade No.:

Precision Rating:

Bearing Material:

GCr15SiMn

Cage Type:

JN = Stamping steel cage

Seals Type:

2RS = Contact seal on both sides

Rolling Mlement Material:

S = Stainless steel

Bore Type:

Z = Cylindrical bore

Operating Temperature:

-30 to 100 °C

Series:

S60..-2RS-FD

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

S6002-2RS-FD bearings ( 15 mm x 32 mm x 9 mm) have the advantages of Corrosion resistant, high and low temperature resistant, clean and hygienic, and maintenance-free., and are therefore widely used in the Food processing equipment, medical equipment, chemical equipment, ships, outdoor equipment, and semiconductor manufacturing.

Part Number	S6002-2RS-FD
Reference From	FAG S6002-2RS-FD
Bearing Type	Deep groove ball bearings 2RS design
Series	S60..-2RS-FD
Ball material	S = Stainless steel
Sealing	2RS = Contact seal on both sides
Cage	JN = Stamping steel cage
Radial internal clearances	CN
Heat stabilization	SN = (up to 120 °C)
Lubricant	FD = Food application grease
Weight [lb]	0.066
C_r Radial Dynamic [lbf]	1244
C_0r Radial static [lbf]	627
C_ur Radial Fatigue [lbf]	26
n_G Limiting speed [rpm]	14973
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	100

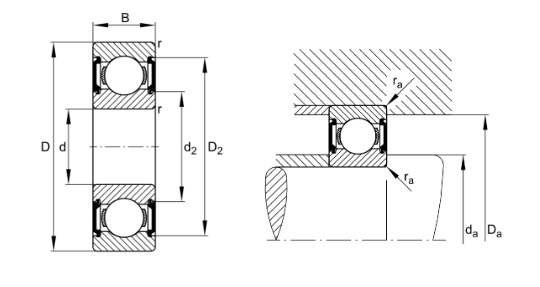

d φ Inside [inch]	0.591
D Φ Outside [inch]	1.260
B Width [inch]	0.354
d₂ [inch]	0.740
D₂ [inch]	1.134
r(min.) [inch]	0.012
D₁ [inch]	1.063
d₁ [inch]	0.787
Mounting dimensions
d_a(min.) [inch]	0.669
D_a(max.) [inch]	1.181
r_a(max.) [inch]	0.012
Coefficient - F₀ [inch]	13.9

The S6002-2RS-FD Stainless steel deep groove ball bearings are primarily composed of inner and outer rings made of martensitic stainless steel (such as 440C) or austenitic stainless steel (such as 304, 316), stainless steel balls, and a cage (made of stamped stainless steel or PTFE). They are available in various forms, including open type, with stainless steel dust covers, or rubber seals.

Stainless steel deep groove ball bearings offer excellent corrosion resistance, allowing for long-term operation without rusting in humid, acidic, alkaline, and saltwater environments. They are clean and hygienic, meeting the standards of the food and medical industries. Austenitic stainless steel has non-magnetic properties, making it suitable for precision instruments. The cage can be made of PTFE or self-lubricating materials, enabling lubrication-free operation.
