S08003CS0 Bore 80 Mm, Radial Contact Type C, ULTRA-SLIM Series Bearings
The S08003CS0 Thin-section deep-groove ball bearings are primarily used in applications where space is limited, weight reduction is required, and loads are moderate. Typical applications include industrial robots (such as joints and end-effectors), semiconductor manufacturing equipment, medical imaging equipment (CT scanner gantries), optical trackers, radar antennas, packaging machinery spindles, and lightweight aerospace transmission mechanisms. They are capable of supporting both radial and bidirectional axial loads.
The S08003CS0 bearing is a Thin-section bearings with an inner diameter of 80 mm , an outer diameter of 86 mm, a width of 2.5 mm. It typically uses Precision Class 1 (ABEC 1F) standard grade precision tolerances and Stainless steel rings, Stainless steel rolling mlement. Its dynamic radial rated load is approximately 707 N, its static radial rated load is approximately 955 N. open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
S08003CS0 bearings ( 80 mm x 86 mm x 2.5 mm) have the advantages of Extremely compact, lightweight design, composite load-bearing capacity, high rigidity, and flexible installation, and are therefore widely used in the Robots, semiconductor equipment, medical instruments, radar antennas, and aerospace precision mechanisms.
| Part Number | S08003CS0 |
| Reference From | Kaydon S08003CS0 |
| Manufacturer Part Code | S08003CS0 |
| Series | Radial Contact Type C |
| Separator | S = Helical coil spring, stainless steel separator |
| Thin section bearings type | ULTRA-SLIM Series Bearings |
| Balls | Full complement or ball spacer ball 1/16" (inch) |
| Rolling bearing type | Radial contact ball bearing (type C) |
| Seal | open |
| Cage | Without |
| Type | C = Radial Contact |
| Unit of measurement | Metric |
| Precision | Precision Class 1 (ABEC 1F) standard |
| Ring | AISI 440C stainless steel |
| Contact type | Normal contact (two-point contact) |
| Races/Balls Material | S = AISI 440C stainless steel rings and balls, no seals (open) |
| Weight [lb] | 0 |

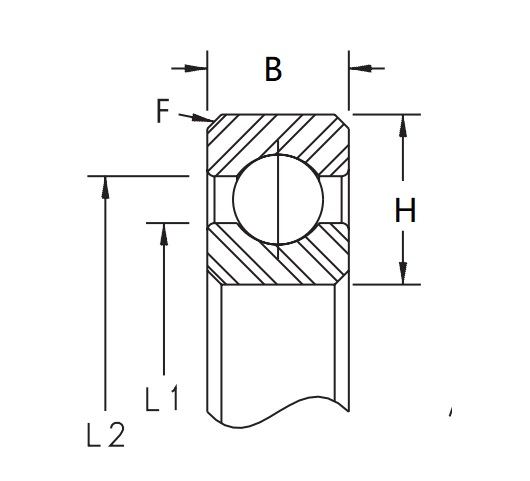

| d φ Inside [inch] | 3.150 |
| D Φ Outside [inch] | 3.386 |
| B Width [inch] | 0.098 |
| H Radial cross section [inch] | 0.118 |
| L1 Land Dia. [inch] | 3.236 |
| L2 Land Dia. [inch] | 3.299 |
| F chamfer [inch] | 0.010 |
The S08003CS0 Thin-section deep groove ball bearings mainly consist of a thin-walled inner ring, a thin-walled outer ring, steel balls, and a cage. Their cross-sectional dimensions are constant and extremely thin, typically conforming to ISO 12240 standards, and are available in open or sealed configurations.
Thin-section deep groove ball bearings utilize a thin-walled constant cross-section design, resulting in lightweight construction and a small footprint, significantly reducing the overall weight and size of equipment. They can simultaneously withstand radial and bidirectional axial loads, exhibiting low friction and high-speed characteristics, and are easy to install, making them suitable for light to medium load conditions.
