RTC460 Bore 460 Mm, Axial/radial Cylindrical Roller Bearing, Double Direction, RTC

🔍

RTC460

Bore Diameter:460 mm

Outside Diameter:600 mm

Width:70 mm

Weight:48 kg

Min. Order:1 Piece

The RTC460 Rotary table bearings are suitable for high-precision, high-rigidity rotary applications. Classic applications include CNC machine tool rotary tables and indexing tables, industrial robot joints, military radar antennas, aerospace measurement equipment, astronomical telescopes, and medical devices.

The RTC460 bearing is a Axial/radial cylindrical roller bearing, double direction, RTC with an inner diameter of 460 mm , an outer diameter of 600 mm, a width of 70 mm. 50Mn,42CrMo rings, Its dynamic radial rated load is approximately 200000 N, its static radial rated load is approximately 765000 N. Its dynamic axial rated load is approximately 355000 N, its static axial rated load is approximately 2800000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

460 mm

Outside Diameter:

600 mm

Thickness:

70 mm

Weight:

48 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

200000 N

Static load Capacity, Radial (Cor):

765000 N

Dynamic load Capacity, axial:

355000 N

Static load Capacity, axial:

2800000 N

Reference speed (Grease rpm):

220

Limiting speed (Oil rpm):

340

Specifications:

Structure:

Axial/radial cylindrical roller

Number of Rows:

Three

Bearing Material:

50Mn,42CrMo

Seals Type:

Open

Operating Temperature:

-30 to 120 °C

Series:

RTC = Where comparatively lower friction and higher speeds are required

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

50 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

RTC460 bearings ( 460 mm x 600 mm x 70 mm) have the advantages of It can withstand axial, radial and overturning moments simultaneously, has a compact structure, is easy to install, and is suitable for heavy-duty rotation, and are therefore widely used in the high-end CNC machine tools, robots, indexing tables and rotary tables.

Part Number	RTC460
Bearing Type	Axial/radial cylindrical roller bearing, double direction, RTC
Manufacturer Part Code	RTC 460
Series	RTC = Where comparatively lower friction and higher speeds are required
Seal type	Open
L-section ring	For mounting with unsupported L-section ring
Rolling Element Type	cylindrical rollers
Rolling Element Material	GCr15
Ring Material	50Mn,42CrMo
Rows NO.	Three
Alias	Super Precision Bearings for Rotary Tables
m Weight [kg]	48
Reference From	FAG RTC460
Similar model	RTC460-T52EB RTC460-T52EA

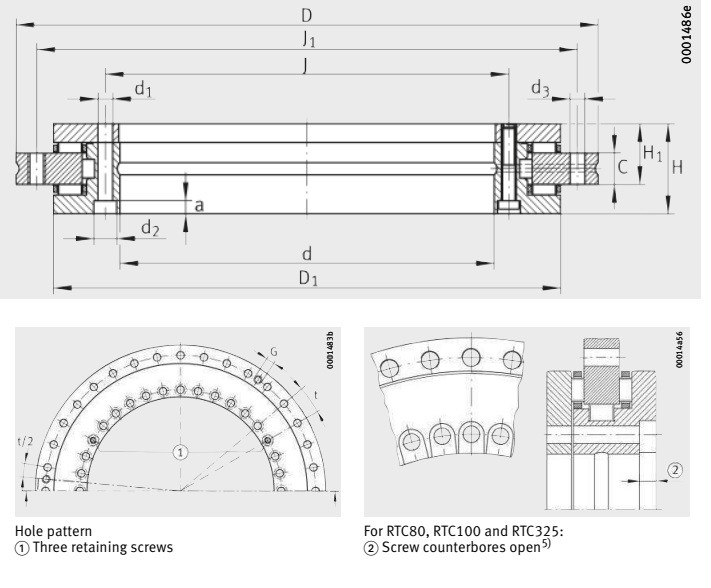

Main Dimensions
d φ Inside [inch]	18.110
D Φ Outside [inch]	23.622
H High [inch]	2.756
H₁ [inch]	1.811
C [inch]	0.866
D₁ [inch]	22.047
J [inch]	18.976
J₁ [inch]	22.835
Performance
C_r Dynamic Radial [lbf]	44960
C_0r Static Radial [lbf]	171972
C_a Dynamic Axial [lbf]	79804
C_0a Static Axial [lbf]	629440
n_B Reference speed (grease) [r/min]	220
n_G Limiting speed (oil) [r/min]	340
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	120
Mounting dimensions
d₁ Fixing screws (Inner ring) [inch]	0.366
d₂ Fixing screws (Inner ring) [inch]	0.591
a Fixing screws (Inner ring) [inch]	0.366
Fixing holes Inner ring Quantity	45
d₃ Fixing screws (Outer ring) [inch]	0.366
Fixing holes Outer ring Quantity	48
n Pitch quantity	48
t Pitch separation angle [°]	7.5
G Threaded extraction hole	M8
Threaded extraction hole Quantity	3
M_A Screw tightening torque [Nm]	34
M_R Bearing friction torque [Nm]	55
Additional information
C_aL Rigidity of bearing position (axial) [kN/µm]	3.9
C_rL Rigidity of bearing position (radial) [kN/µm]	7
C_kL Rigidity of bearing position (Tilting rigidity) [kNm/mrad]	190
C_aL Rigidity of bolling element set (axial) [kN/µm]	32.6
C_rL Rigidity of bolling element set (radial) [kN/µm]	13.7
C_kL Rigidity of bolling element set (Tilting rigidity) [kNm/mrad]	1007

The RTC460 Rotary table bearings are precision bearings with a thrust-radial combined structure. They mainly consist of a housing ring, a shaft ring, two rows of axial cylindrical roller cage assemblies, and one row of radial cylindrical roller cage assemblies. The housing ring and shaft ring are evenly distributed with mounting screw holes for easy direct fixing.

The advantages of rotary table bearing design are that it can simultaneously withstand radial loads, bidirectional axial loads and overturning moments. The negative clearance preload design ensures extremely high rigidity and rotational accuracy. Moreover, the compact structure greatly simplifies rotary table design and reduces installation and maintenance costs.
