RSL182324-A (Size:120x231.386x86mm) Full Complement Cylindrical Roller Bearing
The RSL182324-A bearing is a Cylindrical Roller Bearings with an inner diameter of 120 mm , an outer diameter of 231.386 mm, a width of 86 mm. Chrome Steel (Gcr15) rings. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Planetary Gear, Gear Reducer, Gearbox
RSL182324-A Cylindrical Roller Planetary Gear Bearing, Full Complement, Single Row, Without Outer Ring.
Size: 120x231.386x86mm
Bore Diameter: 120mm
Outside Diameter: 231.386mm
Width: 86mm
|
Bearing Part No. |
RSL182324-A |
|
Basic Dimensions (mm) |
|
|
d |
120 |
|
D |
231.386 |
|
B |
86 |
|
Mail: [email protected] |
|
|
Whatsapp: +8618062246726 |
|

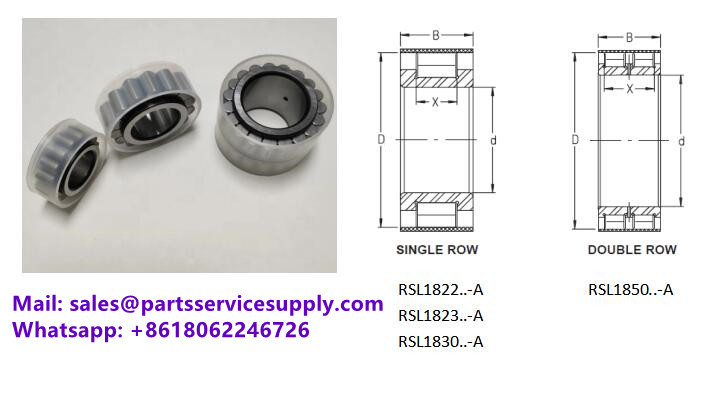

RSL18 planetary bearings with a full complement roller set.
Single Row: RSL1822..-A ,RSL1823..-A,RSL1830..-A
Double Row: RSL1850..-A
A vast number of the single row RSL18 designs (series 10,30,22,23,33) cover a wide range of requirements for design solutions. The enlarged special RV radius is offered to relieve the high bending stresses on the pins in single-sided planet carriers. The unilaterally rounded edge between the bore and end face is available for the most commonly used sizes.
The double row RSL1850 series offers the ideal solution for achieving maximum power density with a very small design envelope.
RSL18 bearings can be requested as matched bearing sets for designs with up to four rows.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to contact us.
