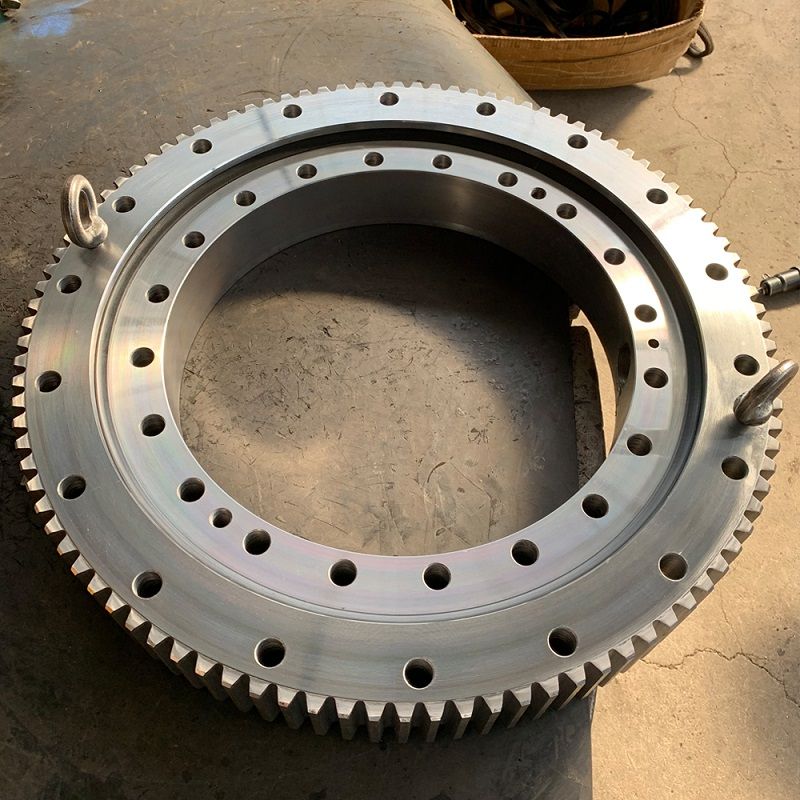

Outer Toothed 012.40.1120 Four-point Contact Ball Slewing Rings

🔍

012.40.1120

Bore Diameter:998 mm

Outside Diameter:1305.6 mm

Width:100 mm

Weight:320 kg

Reference FOB Price:US100 ~ 1500 / Piece

Min. Order:1 Piece

The 012.40.1120 bearing is a four point contact slewing ball bearing with an inner diameter of 998 mm , an outer diameter of 1305.6 mm, a width of 100 mm. It typically uses P0, P6, P5, P4 grade precision tolerances and features a Nylon/steel/copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Cranes, Aerial lifts, Excavators, Wind turbines, Utility derricks, Log loaders and feller bunchers, Grapples, Mining equipment

Dimensions:

Inside Diameter:

998 mm

Outside Diameter:

1305.6 mm

Thickness:

100 mm

Weight:

320 KG

Outer Ring Width:

Inner Ring Width:

Limiting speed (Oil rpm):

EP2

Specifications:

HS Code:

8482109000

Structure:

four point contact ball bearing

Number of Rows:

single row

Demensions:

1305.6*998*100

Brand:

LYMC

Precision Rating:

P0, P6, P5, P4

Bearing Material:

42CrMo/50Mn/45#/custom

Cage material:

Nylon/steel/copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel ball

Gear Options:

external gear

Transaction Information:

Transport Package:

export wooden cases

Service:

reply within 24 hours, oem service, design service, technical support

Shipping Ways:

sea, air, express, train

Country of Origin:

China

Quality Control:

iso9001, QC report

Stock:

100 Piece

Production Capacity:

100pc/month

Port:

qingdao, shanghai, tianjin, ningbo, guangzhou

Payment term:

fob, cif, exw

Delivery time:

15-45days

Detailed description

outer toothed 012.40.1120 four-point contact ball slewing rings

structure:single row slewing ball bearing

gear option:outer gear

material:42crmo/50mn/custom

D(outer diameter, outer ring O.D.):1305.6mm

d(inner diameter, inner ring I.D.):998mm

H(overall height):100mm

D1(external bolt circle diameter):1198mm

d1(internal bolt circle diameter):1042mm

n,φ(number of holes, per hole circle):36-φ22

m(module):12

Z(teeth no.):106

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Certificated has 3.1,3.2,ABS,CCS.Our team with technical and full experience in the bearing industry. And with a worldwide network, allows us to resolve any bearing issue for you. LYMC bearings are the perfect alternative to the most common and well-known brands.

Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force,radial force and overturning moment at the same time, has strong dynamic load.

Packaging:

1.Filling with anti-rust oil
2.Corved with Plastic paper
3.Corved with kraft paper
4.Corved with Blue tie
5.Put in wooden box

Any interests or inquiry, please contact us freely~
