OEM Non Gear 787/800G Swing Ball Bearing Spare Parts Factory Export

🔍

787/800G

Bore Diameter:800 mm

Outside Diameter:1050 mm

Width:90 mm

Weight:192 kg

Reference FOB Price:US200 ~ 800 / Piece

Min. Order:1 Piece

The 787/800G bearing is a four point contact slewing ball bearing with an inner diameter of 800 mm , an outer diameter of 1050 mm, a width of 90 mm. features a Nylon/steel/copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Cranes, Aerial lifts, Excavators, Wind turbines, Utility derricks, Log loaders and feller bunchers, Grapples, Mining equipment

Dimensions:

Inside Diameter:

800 mm

Outside Diameter:

1050 mm

Thickness:

90 mm

Weight:

192 KG

Outer Ring Width:

Inner Ring Width:

Limiting speed (Oil rpm):

EP2

Specifications:

HS Code:

8482109000

Structure:

four point contact ball bearing

Number of Rows:

single row

Demensions:

1050*800*90

Brand:

LYMC

Bearing Material:

42CrMo/50Mn/45#/custom

Cage material:

Nylon/steel/copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel ball

Gear Options:

non gear

Transaction Information:

Transport Package:

export wooden cases

Service:

reply within 24 hours, oem service, design service, technical support

Shipping Ways:

sea, air, express, train

Country of Origin:

China

Quality Control:

iso9001, QC report

Stock:

100 Piece

Production Capacity:

100pc/month

Port:

qingdao, shanghai, tianjin, ningbo, guangzhou

Payment term:

fob, cif, exw

Delivery time:

15-45days

Detailed description

OEM non gear 787/800G swing ball bearing spare parts factory export

material:42crmo/50mn/45#/custom

structure:single row four point contact slewing ball bearing

gear option:external gear, internal gear, non gear

raceway hardness:55-62HRC

OD(outer ring diameter D):1050mm

ID(inner ring diameter d):800mm

thickness/width(H):90mm

Mounting hole dia(D1):1012mm

Mounting hole dia(D2):838mm

outer ring width/thickness(H1):76mm

Mass:192kgs

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Our team with technical and full experience in the bearing industry.

Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force,radial force and overturning moment at the same time, has strong dynamic load.

Packaging:

1.Filling with anti-rust oil
2.Corved with Plastic paper
3.Corved with kraft paper
4.Corved with Blue tie
5.Put in wooden box

Delivery time:

within 7 working days with stock(standard slewing bearing)

within 35-45 working days without stock(non-standard slewing bearing)

Payment term:T/T

If any interesteed items or inquiry, please feel free to contact us. All inquiry will be replied within 24 hours.

Share this product to:

Let more people see your product

How can you buy OEM Non Gear 787/800G Swing Ball Bearing Spare Parts Factory Export on the Internet?
High quality 787/800G ( 192 kg Mass, ID: 800 mm OD: 1050 mm WD: 90 mm , single row Rows , 42CrMo/50Mn/45#/custom Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 787/800G. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- OEM rolling bearing E.505.20.00.B swivel ball bearing price
- OEM rolling bearing E.505.20.00.B swivel ball bearing price Da(outer diameter, outer ring O.D.):503.3mm Di(inner
- inner toothed 525DBS101y four-point contact ball slewing rings
- inner toothed 525DBS101y four-point contact ball slewing rings Da(outer diameter, outer ring

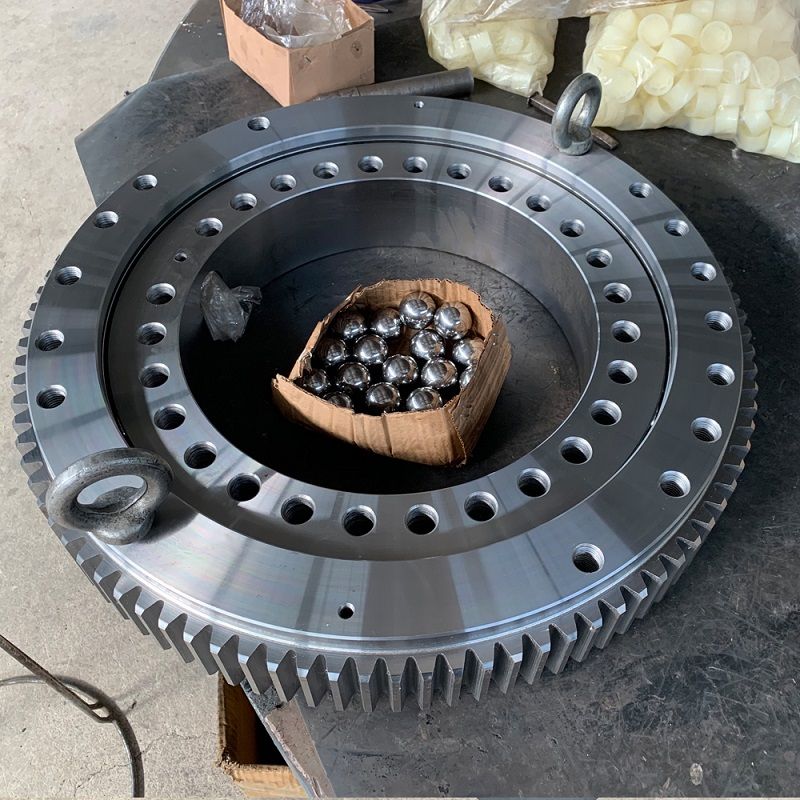

- LYMC terrain crane 061.25.1355.575.11.1403 turntable ball bearing wholesale
