NUTR3580A Bore 35 Mm, Support Rollers With Flange Rings, With An Inner Ring
The NUTR3580A Support rollers (yoke-type track rollers) are widely used in heavy-duty linear motion and cam-driven systems, such as: forklift masts (lifting rollers), AGV trolleys (load-bearing rollers), stacker cranes (guide rails), machine tool guide rails (support rollers), automated production lines, and track tensioning devices for construction machinery.
The NUTR3580A bearing is a Support rollers with flange rings, with an inner ring with an inner diameter of 35 mm , an outer diameter of 80 mm, a width of 29 mm. GCr15SiMn rings, GCr15SiMn rolling mlement. It uses Between C2 and CN standard radial clearance, Seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
NUTR3580A bearings ( 35 mm x 80 mm x 29 mm) have the advantages of Featuring a thick-walled outer ring and integral bearing design, it boasts high load-bearing capacity and rigidity, making it particularly suitable for heavy-duty rail support applications, and are therefore widely used in the Conveyor, Material handling equipment, forklifts, stacker cranes, automated warehouses and rail guide systems.
| Part Number | NUTR3580A |
| Bearing Type | Support rollers with flange rings, with an inner ring |
| Design | NUTR = Support roller based on a double row, full complement cylindrical roller bearing with two integral outer ring flanges and a loose flange ring on both sides of the inner ring. |
| Relubrication feature | Yes |
| Heat stabilized | 140 °C (280 °F) |
| Coating | No |
| Lubricant | Grease |
| Axial guidance of outer ring | Yes |
| Sealing | Seal on both sides |
| Sealing type | Labyrinth |
| Cage Material | No cage |
| Outer ring | A = Crowned |
| Radial internal clearance | Between C2 and CN |
| Interchangeable | SKF NUTR3580A |
| Number of flanges, outer ring | 2 |
| Radial Dynamic - Cr [lbf] | 11509 |
| Radial Static - C0r [lbf] | 15286 |
| Fatigue load limit - Pu [lbf] | 1865 |
| Max. dynamic radial load - Fr max. [lbf] | 12813 |
| Max. static radial loads - F0r max. [lbf] | 18321 |
| Speed ratings - nG [min–1] | 2000 |

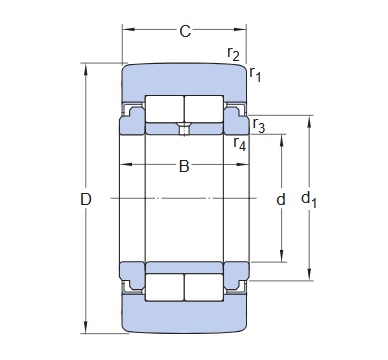

| Outside - D Φ [inch] | 3.150 |
| Outside diameter flange ring - d1 [inch] | 1.732 |
| Width - B [inch] | 1.142 |
| Inside - d φ [inch] | 1.378 |
| Width - C [inch] | 1.102 |
| Chamfer - r1,2 min. [inch] | 0.043 |
| Chamfer - r3,4 min. [inch] | 0.024 |
| Weight [lb] | 1.843 |
The NUTR3580A Support rollers (yoke-type track rollers) mainly consist of a thick-walled outer ring, a yoke-type inner ring with mounting holes, needle rollers or cylindrical rollers, and a sealing device. The outer surface of the outer ring can be designed as a cylindrical or spherical surface, and the inner ring adopts an integrated yoke structure, directly fixed to the equipment with bolts.
Support rollers (yoke-type track rollers) have high load-bearing capacity. The thick-walled outer ring and needle roller structure provide excellent radial load-bearing capacity and strong impact resistance. Installation is simple, requiring no bearing housing; direct bolt fixing is sufficient. Operation is smooth, and some models with a spherical outer ring can automatically adjust to track deviations. They have good sealing performance and are suitable for harsh working conditions such as dust and humidity.
