NUKR80XA Stud 30 Mm, Cam Followers (stud-type Track Roller)
The NUKR80XA Cam-follower studded roller bearings are widely used in cam-driven and linear guidance systems in automated equipment, such as: cam mechanisms (automatic machine tool indexing plates), conveying equipment (track rollers), packaging machinery (cam-driven sealing), printing machinery, robot end effectors, and material handling equipment.
The NUKR80XA bearing is a Cam followers (stud-type track roller) with an inner diameter of 30 mm , an outer diameter of 80 mm, a width of 100 mm. GCr15SiMn rings, GCr15SiMn rolling mlement. It uses Between C2 and CN standard radial clearance, Seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
NUKR80XA bearings ( 30 mm x 80 mm x 100 mm) have the advantages of Easy to install, can withstand high radial loads and impacts, wear-resistant and runs smoothly, and are therefore widely used in the Conveying systems, automated equipment, cam mechanisms, machine tools and material handling machinery.
| Part Number | NUKR80XA |
| Bearing Type | Cam followers (stud-type track roller) |
| Hexagonal nut | M 30x1.5 |
| Thread stud - G | M 30x1.5 |
| Design | NUKR = Cam follower based on a double row, full complement cylindrical roller bearing with two integral outer ring flanges. |
| Relubrication feature | Centre of each stud end and radial hole in stud shank |
| Heat stabilized | 140 °C (280 °F) |
| Coating | No |
| Lubricant | Grease |
| Grease fitting | NIP A3x9.5 |
| Lubrication adapter | AP 14 |
| Sealing | Seal on both sides |
| Sealing type | Labyrinth |
| Cage Material | No cage |
| Outer ring | XA = Cylindrical |
| Feature for tightening | Hexagonal recess |
| Radial internal clearance | Between C2 and CN |
| Stud alignment | Centric |
| Interchangeable | SKF NUKR80XA |
| Number of flanges, outer ring | 2 |
| Radial Dynamic - Cr [lbf] | 15578 |
| Radial Static - C0r [lbf] | 19445 |
| Fatigue load limit - Pu [lbf] | 2427 |
| Max. dynamic radial load - Fr max. [lbf] | 10790 |
| Max. static radial loads - F0r max. [lbf] | 15623 |
| Speed ratings - nG [min–1] | 1900 |
| Outside - D Φ [inch] | 3.150 |
| Stud diameter [inch] | 1.181 |
| Outside diameter flange ring - d1 [inch] | 1.850 |
| Width - B [inch] | 3.937 |
| Inside - d φ [inch] | 1.181 |
| Width - C [inch] | 1.378 |
| Length shank on stud - B1 [inch] | 2.480 |
| Distance face outer ring to face side washer - C1 [inch] | 0.039 |
| Length thread - G1 [inch] | 1.260 |
| Seat diameter for lubrication accessories - M [inch] | 0.315 |
| Diameter of lubrication hole (shank) - M1 [inch] | 0.157 |
| Width across flats - SW [inch] | 0.551 |
| Recommended tightening torque [N-m] | 450 |
| Chamfer - r1,2 min. [inch] | 0.043 |
| Distance lubrication hole to flange ring - B2 [inch] | 0.591 |
| Weight [lb] | 3.968 |

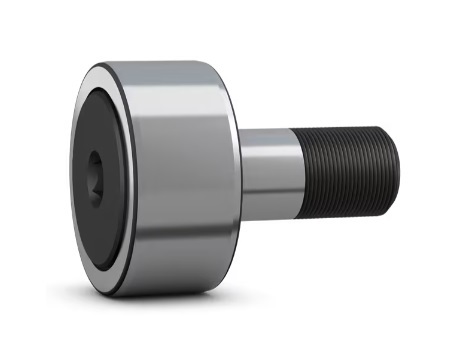

The NUKR80XA Cam follower stud roller bearings mainly consist of a stud (a threaded solid shaft), an outer ring (serving as the rolling track), needle rollers or rollers, a cage, and a sealing device. The stud head has a wrench groove or an internal hexagonal hole, and the outer surface of the outer ring can be designed as spherical or cylindrical to accommodate different tracks.
Cam follower stud roller bearings are easy to install, directly fixed to the equipment via the stud threads without the need for an additional bearing housing. They have high load-bearing capacity, with the needle roller structure providing high radial load capacity. The outer ring can be eccentrically adjusted to easily compensate for installation errors. They possess shock resistance and contamination resistance, making them suitable for harsh working conditions.
