NRXT10020DD Bore 100 Mm, Sealed Crossed Roller Bearings (thin-cross Section Bearings)

🔍

NRXT10020DD

Bore Diameter:100 mm

Outside Diameter:150 mm

Width:20 mm

Weight:1.37 kg

Min. Order:1 Piece

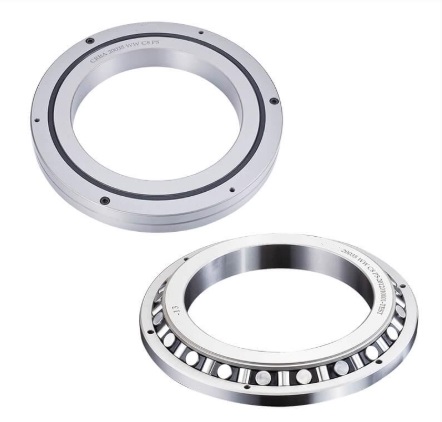

The NRXT10020DD Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.

The NRXT10020DD bearing is a Sealed Crossed roller bearings (thin-cross section bearings) with an inner diameter of 100 mm , an outer diameter of 150 mm, a width of 20 mm. It typically uses ISO Class 5; Class Normal grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears radial, thrust and moment, Its dynamic radial rated load is approximately 33000 N, its static radial rated load is approximately 52500 N. It uses C8: Negative clearance; C1: Positive clearance standard radial clearance, DD = Two Sides Seals type, NBR (Nitrile Butadiene Rubber). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

100 mm

Outside Diameter:

150 mm

Thickness:

20 mm

Weight:

1.37 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

33000 N

Static load Capacity, Radial (Cor):

52500 N

Specifications:

Structure:

Crossed Roller Bearings

Number of Rows:

One

Radial Clearance Trade No.:

C8: Negative clearance; C1: Positive clearance

Precision Rating:

ISO Class 5; Class Normal

Load Direction:

radial, thrust and moment

Bearing Material:

50Mn,42CrMo

Seals Type:

DD = Two Sides Seals

Seal Material:

NBR (Nitrile Butadiene Rubber)

Rolling Mlement Material:

GCr15

Bore Type:

Cylindrical

Operating Temperature:

-30 to 120 °C

System of Measurement:

Metric

Series:

NRXT series (NRXT..DD)

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

30 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

NRXT10020DD bearings ( 100 mm x 150 mm x 20 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.

Part Number	NRXT10020DD
Bearing Type	Sealed Crossed roller bearings (thin-cross section bearings)
Seal Symbol	DD = Two Sides Seals
Bore Type	Cylindrical
Manufacturer Part Code	NRXT 10020DD
Series	NRXT series (NRXT..DD)
Rolling Element Type	cylindrical rollers
Accuracy class	ISO Class 5; Class Normal
Rolling Element Material	GCr15
Inner/Outer Ring Material	50Mn,42CrMo
Seal Material	NBR (Nitrile Butadiene Rubber)
Design	NRXT (one inner ring, a two-part outer ring, cylindrical rollers, and separators)
Temperature - T(min) [°C]	-30
Temperature - T(max) [°C]	120
Interchangeable	NSK NRXT10020DD
C_r Radial Dynamic [lbf]	7418
C_0r Radial Static [lbf]	11802
d φ Inside [inch]	3.937
D Φ Outside [inch]	5.905
T Thickness [inch]	0.787
B Width [inch]	0.787
r min Chamfer [inch]	0.039
r_a max Fillet Radius [inch]	0.039
m Weight [kg]	1.37
Internal Clearance	C8: Negative clearance; C1: Positive clearance
C8	min: -10 µm , max: 0 µm
C1	min: 10 µm , max: 30 µm
d_a min Abutment Dimensions [inch]	4.606
d_a max Abutment Dimensions [inch]	4.685
D_a min Abutment Dimensions [inch]	5.157
D_a max Abutment Dimensions [inch]	5.236
Similar Model	NRXT10020DD C1 P6 , NRXT10020DD C1 P5 NRXT10020DD C8 P5 , NRXT10020DD C1 P4 NRXT10020DD C8 P4 , NRXT10020DD C1 P2 NRXT10020DD C8 P2

The NRXT10020DD Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.

Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.
