NCF29/750V (Alt P/N: SL1829/750) Cylindrical Roller Bearing

🔍

NCF29/750V

Bore Diameter:750 mm

Outside Diameter:1000 mm

Width:145 mm

Weight:315 kg

Min. Order:1 Piece

The NCF29/750V bearing is a Cylindrical Roller Bearings with an inner diameter of 750 mm , an outer diameter of 1000 mm, a width of 145 mm. It typically uses Standard grade precision tolerances and Chrome Steel (Gcr15) rings. Its dynamic radial rated load is approximately 4460 (kN), its static radial rated load is approximately 10600 (kN). Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Equivalent: SL1829/750

Application: Gearboxes, Hoisting Equipment, Rolling Mills and Machines in the Mining Industry, e.g. tunnelling machines.

Dimensions:

Inside Diameter:

750 mm

Outside Diameter:

1000 mm

Thickness:

145 mm

Weight:

315 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

4460 (kN)

Static load Capacity, Radial (Cor):

10600 (kN)

Reference speed (Grease rpm):

100

Limiting speed (Oil rpm):

220

Specifications:

HS Code:

8482500090

Structure:

Roller Bearing

Number of Rows:

Single

Demensions:

750x1000x145

Brand:

Neutral Product

Precision Rating:

Standard

Bearing Material:

Chrome Steel (Gcr15)

Seals Type:

Open

Roller Material:

Chrome Steel (Gcr15)

Bore Type:

Cylindrical

Operating Temperature Range:

-30℃ to 120℃

System of Measurement:

Metric

Series:

NCF

Rolling Element:

Roller

Closure Type:

Open

Transaction Information:

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Stock:

100 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

NCF29/750V Cylindrical Roller Bearing (Interchange Part No.: SL1829/750), Single Row, Full Complement, Outer Ring Located with a Snap Ring, High Radial Load Carrying Capacity, Long Service Life.

Size: 750x1000x145mm

Bore Diameter (d): 750mm

Outside Diameter (D): 1000mm

Width (B): 145mm

Race Material: Chrome Steel

Roller Element Material: Chrome Steel

Cage Design: Full Complement without Cage

Number of Rolling Element Rows: 1

Number of Flanges (Outer Ring): 1

Number of Flanges (Inner Ring): 2

Sealing: Without

Design: Non-Separable

Bore Type: Cylindrical

Operating Temperature: -30°C to 120°C

Precision: Standard

HS Code: 8482500090

Equivalent Prefix for NCF: SL18

Suffixes C: Modified Internal Design

Suffixes V: Version Without Cage (Full Complement)

Part No.	Dimensions (mm)			Basic Load Rating		Speed Limits		Weight	Alt. P/N:
	Bore	Outer	Width	Dynamic	Static	Grease	Oil
	d	D	B	C	Co	rpm
	mm			kN		1 min		Kg
NCF29/750V	750	1000	145	4460	10600	100	220	315	SL1829/750

Single Row Full Complement Cylindrical Roller Bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.

Common Applications: Gear Drives, Crop Shears, Rolling Mills, General Industrial, Wheel End Planetaries, and etc.

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.

Share this product to:

Let more people see your product

How can you buy NCF29/750V (Alt P/N: SL1829/750) Cylindrical Roller Bearing on the Internet?
High quality NCF29/750V ( 315 kg Mass, ID: 750 mm OD: 1000 mm WD: 145 mm , NCF Series , Single Rows , Standard Accuracy Class , Chrome Steel (Gcr15) Material , 4460 (kN) Radial dynamic , 10600 (kN) Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. NCF29/750V. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- NU413M Cylindrical Roller Bearing 65x160x37mm
- NU413M Cylindrical Roller Bearing Bearing Model No. :NU413M Type: Cylindrical Roller Bearing Size:65x160x37mm
- NUP313E Cylindrical Roller Bearing 65x140x33mm
- NUP313E Cylindrical Roller Bearing Bearing Model No. : NUP313E Type: Cylindrical Roller Bearing Size: 65x140x33mm
- N1015 Cylindrical Roller Bearing 75x115x20mm
- N1015 Cylindrical Roller Bearing Bearing Model No.: N1015 Type: Cylindrical Roller Bearing Size: 75x115x20mm
- NNU49/530 Cylindrical Roller Bearing 530x710x180mm
- NNU49/530 Cylindrical Roller Bearing Bearing Model No. :NNU49/530 Type: Cylindrical Roller Bearing Size:530x710x180mm
- 37248 Tapered Roller Bearing (Size: 240x338x248mm)
- 37248 Tapered Roller Bearing, Four Row, High Load Capacity, High Speed, Low
- CF16VBR Stud Type Track Roller (Alt P/N: KRV35SK, MCF-35-B)
- CF16VBR Cam Follower (Interchange Part No.: KRV35SK, MCF-35-B), Crowned Outer Ring, Without

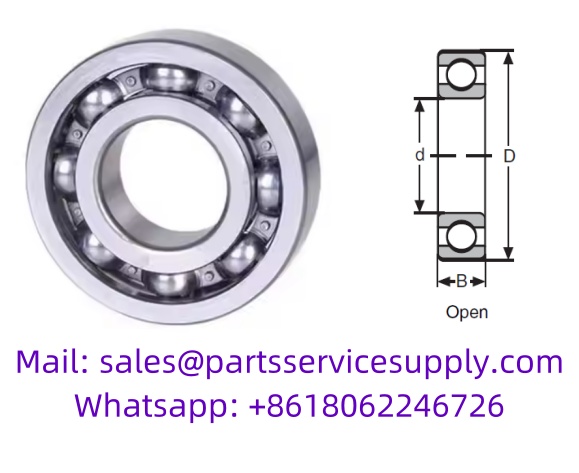

- SS604 Stainless Steel Deep Groove Ball Bearing (Alt P/N: W604, 604H, SSR-1240)
