N 1016 KPHA/HC5SPVE587A Bore 80 Mm, Hybrid (ceramic Rollers) Cylindrical Roller Bearing, Single Row, Super-precision
The N 1016 KPHA/HC5SPVE587A Hybrid ceramic ultra-precision cylindrical roller bearings are widely used in high-speed, high-precision applications with the risk of shaft current, such as: high-speed electric spindles, machine tool spindles (machining centers, grinding machines), variable frequency motors, turbochargers, semiconductor equipment, and precision rotating mechanisms in aerospace.

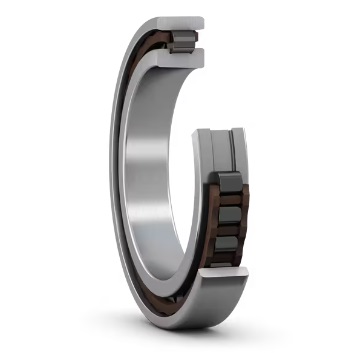

The N 1016 KPHA/HC5SPVE587A bearing is a Hybrid (ceramic rollers) Cylindrical roller bearing, single row, super-precision with an inner diameter of 80 mm , an outer diameter of 125 mm, a width of 22 mm. It typically uses SP (ABEC 7) grade precision tolerances and GCr15SiMn rings, HC5 = Silicon nitride Si3N4 rolling mlement. Its dynamic radial rated load is approximately 65498 N, its static radial rated load is approximately 86315 N. It uses C1F standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
N 1016 KPHA/HC5SPVE587A bearings ( 80 mm x 125 mm x 22 mm) have the advantages of Ceramic rolling elements achieve high rotational speed, low heat generation, insulation, and protection against electrolytic corrosion, while also possessing ultra-precision-grade high rigidity and high rotational accuracy, and are therefore widely used in the High-speed electric spindles for machine tools, high-speed motors, precision rolling mills, traction motors for rail transit, and aerospace equipment.
| Part Number | N 1016 KPHA/HC5SPVE587A |
| Interchangeable | SKF N 1016 KPHA/HC5SPVE587A |
| Cage | PHA = a carbon fibre reinforced PEEK cage, window-type, outer ring centred |
| Bearing Type | Hybrid (ceramic rollers) Cylindrical roller bearing, single row, super-precision |
| Load | radial |
| Accuracy class | SP (ABEC 7) |
| Coating | NO |
| Bearing part | Complete |
| Dimension series | 10 = ISO dimension series 10 |
| Design | N |
| Internal clearance | C1F |
| Row NO. | One |
| Seal | Open |
| Number of ring | outer ring(0), inner ring(2) |
| Units | Metric |
| Manufacturer Part Code | N1016KPHA/HC5SPVE587A |
| Series | N 10 series (N 10.. KPHA/HC5SPVE587A) |
| Lubrication | NO |
| Relubrication feature | NO |
| Loose flange | NO |
| Weight [lb] | 1.7527 |
| Cr Radial Dynamic [lbf] | 14723 |
| C0r Radial Static [lbf] | 19403 |
| Pu Fatigue load limit [lbf] | 1899 |
| nB Speed ratings (grease) [rpm] | 17965 |
| nG Speed ratings (oil) [rpm] | 19951 |
| d φ Inside [inch] | 3.1496 |
| D Φ Outside [inch] | 4.9213 |
| B Thickness [inch] | 0.8661 |
| E [inch] | 4.449 |
| r1,2 min Chamfer [inch] | 0.0433 |
| r3,4 min Chamfer [inch] | 0.0236 |
| d1 [inch] | 3.8189 |
| dn Oil nozzle [inch] | 3.9094 |
| s max. Permissible axial displacement [inch] | 0.1181 |
| ra max Radius of fillet [inch] | 0.0394 |
| Da min [inch] | 4.4882 |
| da min [inch] | 3.4055 |
| Da max [inch] | 4.665 |
| Gref Reference grease quantity | 12.5 |
| Static radial stiffness [N/µm] | 1040 |
The N 1016 KPHA/HC5SPVE587A Hybrid ceramic ultra-precision cylindrical roller bearings are primarily composed of high-precision bearing steel inner and outer rings, silicon nitride ceramic cylindrical rollers, and a high-performance cage (solid brass or outer ring guided type). The rollers and raceways are logarithmically modified, allowing for separability of the inner and outer rings, achieving precision grades from P4 to P2.
The ceramic rollers in hybrid ceramic ultra-precision cylindrical roller bearings have low density and high elastic modulus, significantly reducing centrifugal force and increasing limiting speed by over 30%. The electrical insulation properties of the ceramic material effectively prevent electrolytic corrosion, making them suitable for applications with shaft current, such as variable frequency motors. They also feature a low coefficient of thermal expansion, low temperature rise, good thermal stability, and a low coefficient of friction, extending bearing life.
