MTS6320PTSN Cryogenic Bearing

🔍

MTS6320PTSN

Bore Diameter:100 mm

Outside Diameter:215 mm

Width:47 mm

Weight:7 kg

Reference FOB Price:US5000 ~ 8000 / Piece

Min. Order:1 Piece

The MTS6320PTSN bearing is a LNG pump bearing with an inner diameter of 100 mm , an outer diameter of 215 mm, a width of 47 mm. It typically uses P4 grade precision tolerances and features a nylon cage, Si3G4 balls, It primarily bears radial/Axial, Its dynamic radial rated load is approximately 174, its static radial rated load is approximately 140. It uses C3 standard radial clearance, sealed type, rubber. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: angular contact

Application: LNG PUMP

Dimensions:

Inside Diameter:

100 mm

Outside Diameter:

215 mm

Thickness:

47 mm

Weight:

7 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

174

Static load Capacity, Radial (Cor):

140

Reference speed (Grease rpm):

11000

Limiting speed (Oil rpm):

18000

Specifications:

HS Code:

84821030.00

Structure:

angular contact

Number of Rows:

Single row

Demensions:

100*215*47mm

Brand:

MONTON

Radial Clearance Trade No.:

Precision Rating:

Vibration:

Z3V3

Load Direction:

radial/Axial

Bearing Material:

Gcr15

Cage Type:

nylon

Cage material:

nylon

Seals Type:

sealed

Seal Material:

rubber

Number of Balls:

Ball Material:

Si3G4

Number of Roller:

Contact Angle:

Transaction Information:

Transport Package:

Single box

Service:

OEM

Shipping Ways:

SEA/AIR

Country of Origin:

China

Quality Control:

Self-control

Stock:

10 Piece

Production Capacity:

100PCS/WEEK

Port:

shanghai

Payment term:

T/T

Delivery time:

45 days

Detailed description

esignation MTS6320PTSN

Dimension

Bore (d) 100 mm

Outer Diameter (D) 215 mm

Width (W) 47 mm

Material

Inner Ring Stainless steel euqals to 440C

Outer Ring Stainless steel euqals to 440C

Ball Si3N4

Cage Special PTFE and stainless steel

Closures Open,no seals/shields

Cage Type Riveted cage

Capacity

Dynamic(Cr) 177.40KN

Static (Cor) 121.70KN

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

Share this product to:

Let more people see your product

How can you buy MTS6320PTSN Cryogenic Bearing on the Internet?
High quality MTS6320PTSN ( 7 kg Mass, ID: 100 mm OD: 215 mm WD: 47 mm , Single row Rows , C3 Radial Clearance , P4 Accuracy Class , Gcr15 Material , 174 Radial dynamic , 140 Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. MTS6320PTSN. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

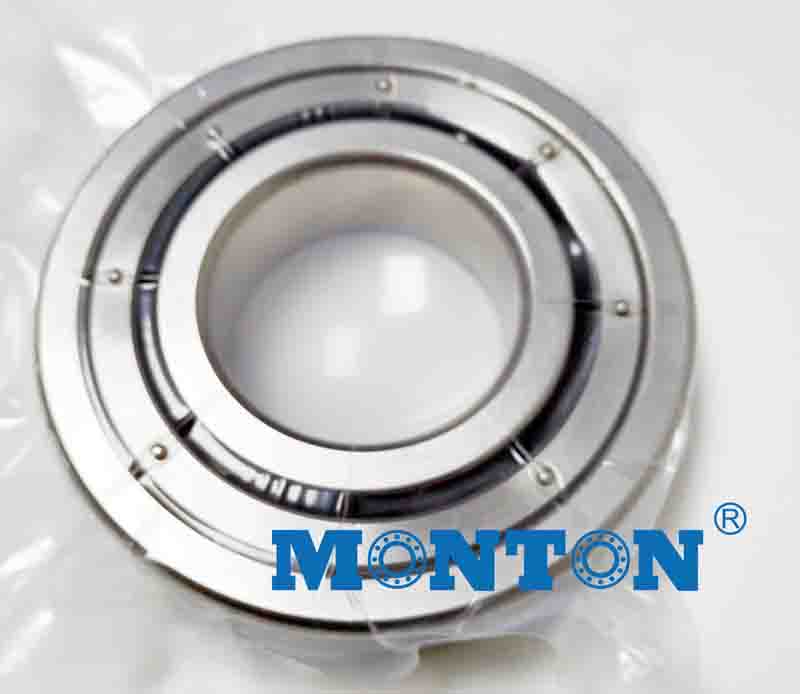

- 6205-H-T35D 25*52*15mm low temperature bearing for cryogenic pump monton
