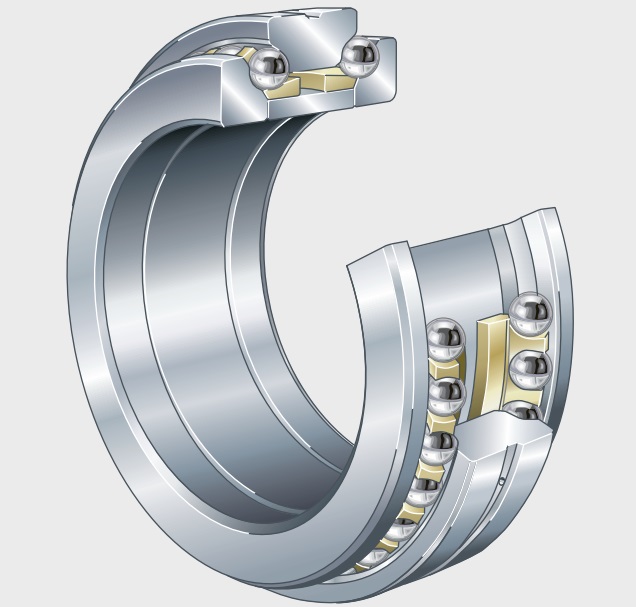

Machined Brass Cage 240BAR10SMYDBLP4A Super Precision Angular Contact Thrust Ball Bearings
The 240BAR10SMYDBLP4A Ultra-precision angular contact thrust ball bearings are designed for high-load, high-speed applications with stringent requirements for axial runout, and are widely used in precision machine tool spindles, ball screws, industrial robot joints, aero-engine accessory transmission systems, and high-precision centrifuges.
The 240BAR10SMYDBLP4A bearing is a Super Precision Angular Contact Thrust Ball Bearings, High-Speed with an inner diameter of 240 mm , an outer diameter of 360 mm, a width of 108 mm. It typically uses P4A grade precision tolerances and Bearing steel (SUJ2) rings, Bearing steel (SUJ2) rolling mlement. Its dynamic axial rated load is approximately 194395 N, its static axial rated load is approximately 543854 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
240BAR10SMYDBLP4A bearings ( 240 mm x 360 mm x 108 mm) have the advantages of perfect balance of rotational accuracy, speed and rigidity, and are therefore widely used in the Machine tools, ball screw, aerospace, medical equipment.
| Part Number | 240BAR10SMYDBLP4A |
| Interchangeable | NSK 240BAR10SMYDBLP4A |
| Contact Angle [°] | 30 |
| Bearing Type | Super Precision Angular Contact Thrust Ball Bearings, High-Speed |
| Arrangement row | Two |
| Arrangement | DB = Back-to-back arrangement (<>) |
| Dimension series | 10 = 10 Series bore and outside diameter, special width |
| Type | BAR |
| Bearing Mass - m [lb] | 43.8715 |
| Ca Dynamic Axial [lbf] | 43699 |
| C0a Static Axial [lbf] | 122258 |
| nB Speed ratings (grease) [rpm] | 1878 |
| nG Speed ratings (oil) [rpm] | 2471 |
| d φ Inside [inch] | 9.4488 |
| D Φ Outside [inch] | 14.1732 |
| 2B Total Width [inch] | 4.2520 |
| r min Chamfer [inch] | 0.1181 |
| r1 min Chamfer [inch] | 0.0433 |
| ra max Fillet Radius [inch] | 0.0984 |
| rb max Fillet Radius [inch] | 0.0394 |
| a Effective Load Center [inch] | 4.4685 |
| da min Abutment Dimensions Shaft [inch] | 10.0000 |
| Db max Abutment Dimensions Housing [inch] | 13.8976 |
| Pa Permissible Axial Load [lbf] | 82964 |
| Preload | L = Light preload |
| Preload (L) [lbf] | 2056 |
| Axial Rigidity (L) [N/µm] | 1058 |
| Measured axial clearance (L) [µm] | -48 |
The core design of ultra-precision angular contact thrust ball bearings lies in their large contact angle (typically 60°) and high-precision matching steel balls, which can simultaneously withstand heavy axial loads and radial loads. With optimized raceway geometry and cage, they achieve extremely low friction and high rigidity, ensuring that they maintain nanometer-level rotational accuracy and excellent axial positioning capability during high-speed operation.
