Luoyang Presicion Untoothed 90-20 0411/0-07013 Turntable Ball Bearing Supply

🔍

90-20 0411/0-07013

Bore Diameter:305 mm

Outside Diameter:517 mm

Width:56 mm

Weight:25 kg

Reference FOB Price:US100 ~ 800 / Piece

Min. Order:1 Piece

The 90-20 0411/0-07013 bearing is a four point contact slewing ball bearing with an inner diameter of 305 mm , an outer diameter of 517 mm, a width of 56 mm. It typically uses P0, P6, P5, P4, P2 grade precision tolerances and features a Nylon/steel/copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Cranes, Aerial lifts, Excavators, Wind turbines, Utility derricks, Log loaders and feller bunchers, Grapples, Mining equipment

Dimensions:

Inside Diameter:

305 mm

Outside Diameter:

517 mm

Thickness:

56 mm

Weight:

25 KG

Outer Ring Width:

Inner Ring Width:

Specifications:

HS Code:

8482109000

Structure:

four point contact ball bearing

Number of Rows:

single row

Demensions:

517*305*56

Brand:

LYMC

Precision Rating:

P0, P6, P5, P4, P2

Bearing Material:

42CrMo/50Mn/45#/custom

Cage material:

Nylon/steel/copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel ball

Gear Options:

non gear

Transaction Information:

Transport Package:

export wooden cases

Service:

reply within 24 hours, oem service, design service, technical support

Shipping Ways:

sea, air, express, train

Country of Origin:

China

Quality Control:

iso9001, QC report

Stock:

100 Piece

Production Capacity:

100pc/month

Port:

qingdao, shanghai, tianjin, ningbo, guangzhou

Payment term:

fob, cif, exw

Delivery time:

15-45days

Detailed description

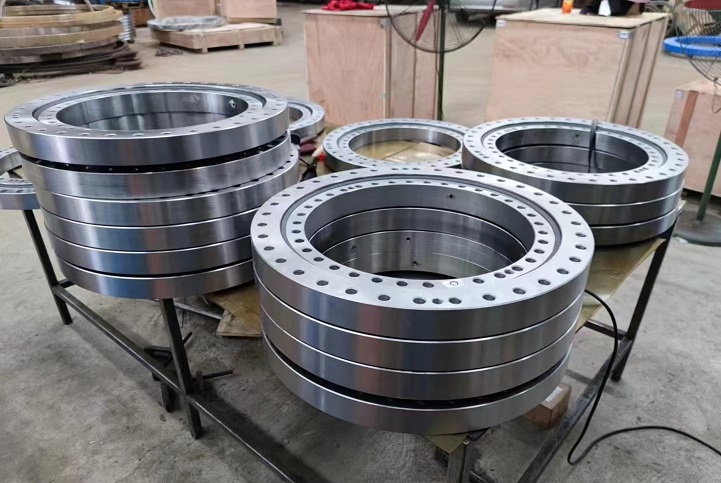

Luoyang presicion untoothed 90-20 0411/0-07013 turntable ball bearing supply

Model no.:90-20 0411/0-07013

structure:four point contact slewing ball bearing

gear option:no gear

material:42crmo/50mn/custom

Daz(outer dia):517mm

diz(inner dia):305mm

Di(inside diameter, outer ring):415.5mm

da(outside diameter, inner ring):412.5mm

a(diameter, outer ring):453mm

b(diameter, inner ring):369mm

G(weight):25kgs

La(pitch circle diameter, outer ring):490mm

Na(number of holes, outer ring):8-φ18

Li(pitch circle diameter, inner ring):332mm

ni(number of holes, inner ring):12-φ18

Loading ratings:

Static

Co rad:118kN

C0 ax:275kN

Dynamic

C rad:156kN

C ax:156kN

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Certificated has 3.1,3.2,ABS,CCS.Our team with technical and full experience in the bearing industry. And with a worldwide network, allows us to resolve any bearing issue for you. LYMC bearings are the perfect alternative to the most common and well-known brands.

Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force,radial force and overturning moment at the same time, has strong dynamic load.

More type we manufacture:

90-20 0311/0-07003

90-20 0411/0-07013

90-20 0541/0-07023

90-20 0641/0-07033

90-20 0741/0-07043

90-20 0841/0-07053

90-20 0941/0-07063

90-20 1091/0-07073

Any interests or inquiry, please contact us freely~

Share this product to:

Let more people see your product

How can you buy Luoyang Presicion Untoothed 90-20 0411/0-07013 Turntable Ball Bearing Supply on the Internet?
High quality 90-20 0411/0-07013 ( 25 kg Mass, ID: 305 mm OD: 517 mm WD: 56 mm , single row Rows , P0, P6, P5, P4, P2 Accuracy Class , 42CrMo/50Mn/45#/custom Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 90-20 0411/0-07013. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- Standard slewing ring bearing SD.329.20.00.D.1 turntables with non gear
- Standard slewing ring bearing SD.329.20.00.D.1 turntables with non gear outer ring diameter(Da):327mm inner ring
- Standard slewing ring bearing SD.1400.32.00.C turntables with non gear
- Standard slewing ring bearing SD.1400.32.00.C turntables with non gear outer ring diameter(Da):1400mm inner ring
- outer toothed 012.25.500 four-point contact ball slewing rings
- outer toothed 012.25.500 four-point contact ball slewing rings D(outer diameter, outer ring O.D.):628.8mm d(inner

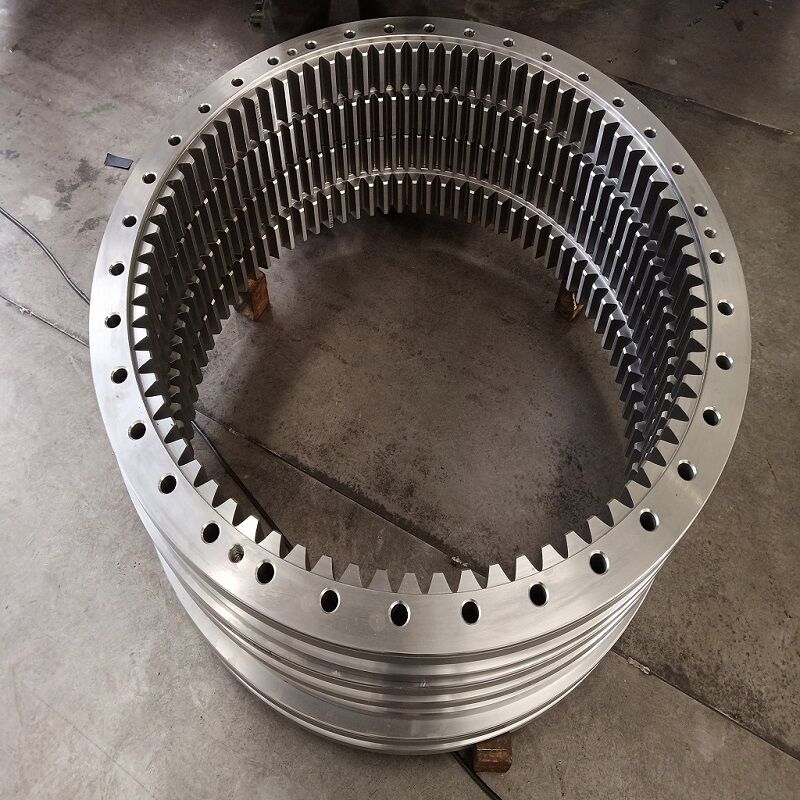

- Internal geared 282.30.1200.013 four point contact slewing ball bearing export
- Internal geared 282.30.1200.013 four point contact slewing ball bearing export Model no.:282.30.1200.013 structure:four point
- China ZB1.20.0605.200-1RTTN turning ball bearing swing gear ring parts
- China ZB1.20.0605.200-1RTTN turning ball bearing swing gear ring parts Model no.:ZB1.20.0605.200-1RTTN structure:single row slewing

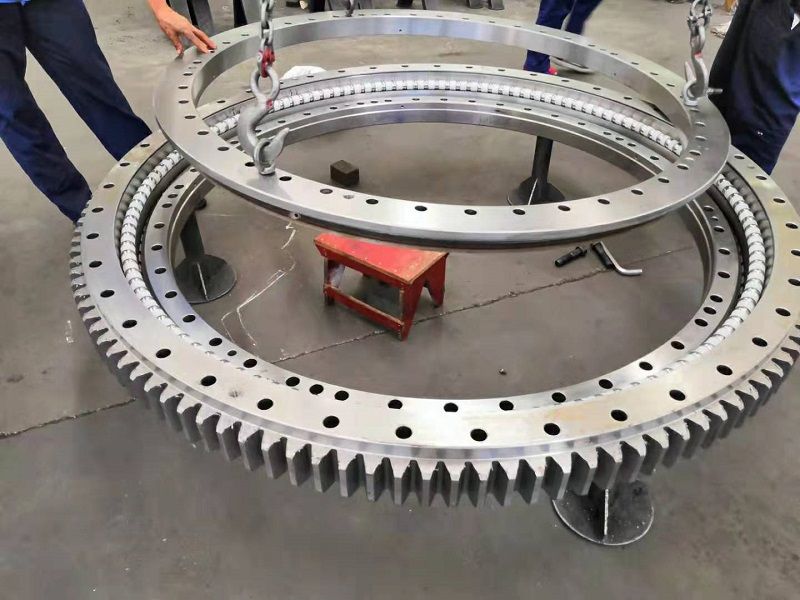

- Luoyang plant 1787/674G2 swing ball bearing manufacture
