Light Flanged External Toothed EBL.20.0414.200-1STPN Slew Ring Ball Bearing

🔍

EBL.20.0414.200-1STPN

Bore Diameter:304 mm

Outside Diameter:504 mm

Width:56 mm

Weight:30 kg

Reference FOB Price:US400 ~ 1500 / Piece

Min. Order:1 Piece

The EBL.20.0414.200-1STPN bearing is a four point contact slewing ball bearing with an inner diameter of 304 mm , an outer diameter of 504 mm, a width of 56 mm. It typically uses P0, P6, P5, P4, P2 grade precision tolerances and features a Nylon/steel/copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Cranes, Aerial lifts, Excavators, Wind turbines, Utility derricks, Log loaders and feller bunchers, Grapples, Mining equipment

Dimensions:

Inside Diameter:

304 mm

Outside Diameter:

504 mm

Thickness:

56 mm

Weight:

30 KG

Outer Ring Width:

45.5

Inner Ring Width:

45.5

Limiting speed (Oil rpm):

EP2

Specifications:

HS Code:

8482109000

Structure:

four point contact ball bearing

Number of Rows:

single row

Demensions:

504*304*56

Brand:

LYMC

Precision Rating:

P0, P6, P5, P4, P2

Bearing Material:

42CrMo/50Mn/45#/custom

Cage material:

Nylon/steel/copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel ball

Gear Options:

external gear

Transaction Information:

Transport Package:

export wooden cases

Service:

reply within 24 hours, oem service, design service, technical support

Shipping Ways:

sea, air, express, train

Country of Origin:

China

Stock:

100 Piece

Production Capacity:

100pc/month

Port:

qingdao, shanghai, tianjin, ningbo, guangzhou

Payment term:

fob, cif, exw

Delivery time:

15-45days

Detailed description

Light flanged external toothed EBL.20.0414.200-1STPN slew ring ball bearing

material:42crmo/50mn/45#/custom

structure:single row four point contact slewing ball bearing

gear option:external gear, internal gear, non gear

raceway hardness:55-62HRC

outer ring dia(De):504mm

inner ring dia(Di):304mm

thickness/width(H):56mm

Mounting hole dia(Fe):455mm

Mounting hole dia(Fi):332mm

Mounting hole bore(Ne):10-M12

Mounting hole bore(Ni):12-φ18

outer ring width/thickness:45.5mm

inner ring width/thickness:45.5mm

module(m):5

teeth no.(Z):99

Mass:30kgs

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Our team with technical and full experience in the bearing industry.

Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force,radial force and overturning moment at the same time, has strong dynamic load.

Packaging:

1.Filling with anti-rust oil
2.Corved with Plastic paper
3.Corved with kraft paper
4.Corved with Blue tie
5.Put in wooden box

Delivery time:

within 7 working days with stock(standard slewing bearing)

within 35-45 working days without stock(non-standard slewing bearing)

Payment term:T/T

If any interesteed items or inquiry, please feel free to contact us. All inquiry will be replied within 24 hours.

Share this product to:

Let more people see your product

How can you buy Light Flanged External Toothed EBL.20.0414.200-1STPN Slew Ring Ball Bearing on the Internet?
High quality EBL.20.0414.200-1STPN ( 30 kg Mass, ID: 304 mm OD: 504 mm WD: 56 mm , single row Rows , P0, P6, P5, P4, P2 Accuracy Class , 42CrMo/50Mn/45#/custom Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. EBL.20.0414.200-1STPN. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- Road roller untoothed 2004.10.20.0-0.0644.00 rotary circle bearing ring supply
- Road roller untoothed 2004.10.20.0-0.0644.00 rotary bearing gear ring supply Model no.:2004.10.20.0-0.0644.00 structure:single row slewing
- inner toothed 013.35.1257.12 four-point contact ball slewing rings
- inner toothed 013.35.1257.12 four-point contact ball slewing rings D(outer diameter, outer ring

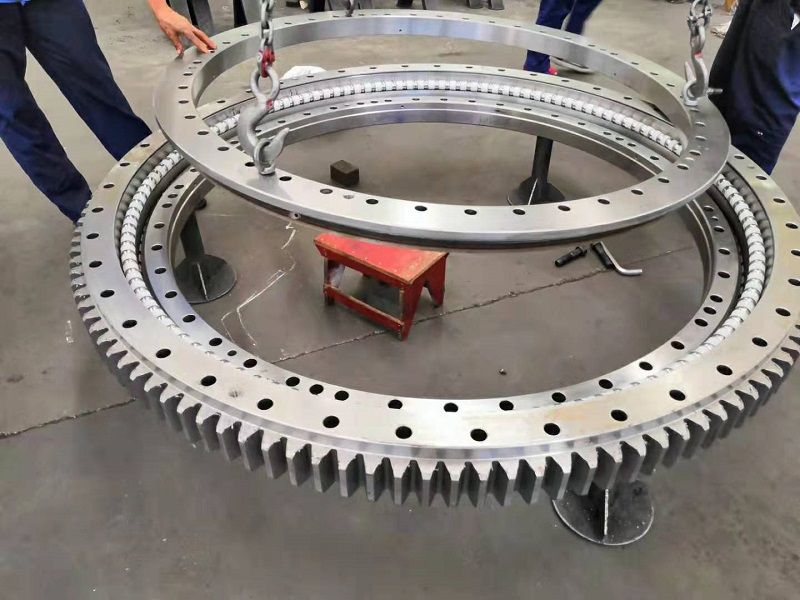

- Light flanged external toothed EBL.20.0644.200-1STPN slew ring ball bearing
- Light flanged external toothed EBL.20.0644.200-1STPN slew ring ball bearing outer ring dia(De):742.8mm inner ring dia(Di):534mm thickness/width(H):56mm
- Tower crane slewing ring bearing QW.710.20A turntables with external gear
- Tower crane slewing ring bearing QW.710.20A turntables with external gear outer ring diameter(Da):840mm inner
- Internal geared 282.30.1000.013 four point contact slewing ball bearing export
- Internal geared 282.30.1000.013 four point contact slewing ball bearing export Model no.:282.30.1000.013 structure:four point
- Factory manufacture 280.30.0975.013 four point contact slewing ball bearing
- factory manufacture 280.30.0975.013 four point contact slewing ball bearing Model no.:280.30.0975.013 structure:four point contact

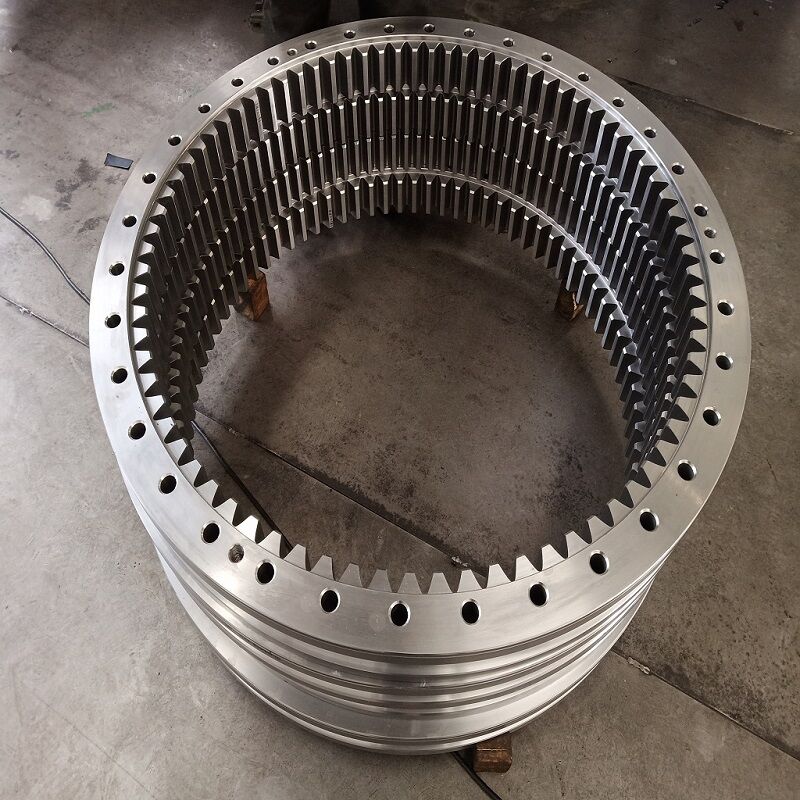

- internal toothed ZB1.20.0744.200-1SPTN swivel ball bearing ring size
