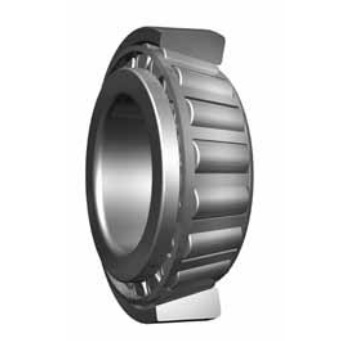

L778149/L778110 Bore 584.2 Mm, L778100 Series, Tapered Roller Bearings - TS Type Imperial
The L778149/L778110 Imperial single-row tapered roller bearings are suitable for applications requiring combined loads and easy installation and maintenance. Classic applications include automotive wheel hubs and axles, industrial gearboxes, agricultural machinery, conveyor rollers, mining equipment, and machine tool spindles.
The L778149/L778110 bearing is a Tapered Roller Bearings Single Row - TS type Imperial with an inner diameter of 584.2 mm , an outer diameter of 709.613 mm, a width of 58.738 mm. GCr15 / SAE 52100 / 20CrNiMoA rings, GCr15 / SAE 52100 rolling mlement. Its dynamic axial rated load is approximately 57206 N, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Interchange code: L778149 - L778110
L778149/L778110 bearings ( 584.2 mm x 709.613 mm x 58.738 mm) have the advantages of Simultaneously withstands combined loads (radial and axial loads) and is detachable for installation, and are therefore widely used in the Automotive wheel hubs, axles, transmissions, industrial gearboxes, and machine tool spindles.
| Part Number | L778149/L778110 |
| Type | TS = Single-row (pressed steel and pin-type) |
| Manufacturer Part Code | L778149-L778110 |
| Reference From | TIMKEN L778149/L778110 |
| Inner ring (cone) | L778149 |
| Outer ring (cup) | L778110 |
| Series | L778100 |
| Series Preffx | L = Light |
| Bearing Type | Tapered Roller Bearings Single Row - TS type Imperial |
| Units | Inch |
| Rows NO. | Single row |
| Cage Material | Pin-Type |
| Temperature - T(min) [°C] | -30 |
| Temperature - T(max) [°C] | 110 |
| C1 Dynamic Radial [lbf] | 271037 |
| Ca90 Dynamic Axial [lbf] | 57206 |
| C90 Dynamic Radial [lbf] | 70326 |
| C0 Static Radial [lbf] | 659021 |
| Dimensions | |
| d φ Inside [inch] | 23 |
| D Φ Outside [inch] | 27.9375 |
| T thickness [inch] | 2.3125 |
| B Cone Width [inch] | 2.25 |
| C Cup Width [inch] | 1.5625 |
| a Effective center [inch] | 2.71 |
| r Fillet Radius (Housing) [inch] | 0.13 |
| R Fillet Radius (Shaft) [inch] | 0.14 |
| Ab [inch] | 0.31 |
| Aa [inch] | 0.14 |
| da Dia.(Shaft) [inch] | 23.74 |
| db Dia.(Shaft) [inch] | 23.86 |
| Da Dia.(Housing) [inch] | 27.28 |
| Db Dia.(Housing) [inch] | 26.93 |
| Coefficient | |
| e | 0.48 |
| Y | 1.26 |
| K | 1.23 |
| G1 Geometry (Roller-Raceway) | 5712.9 |
| G2 Geometry (Rib-Roller End) | 1057.7 |
| Cg Geometry | 0.254 |
The L778149/L778110 Imperial single-row tapered roller bearings mainly consist of an outer ring, inner ring, tapered rollers, and a cage. The outer and inner ring assemblies are separable for easy installation and adjustment. The rollers make line contact with the raceways. The cage is typically made of stamped steel or brass.
Imperial single-row tapered roller bearings can simultaneously withstand radial and unidirectional axial loads, exhibiting high load-bearing capacity and rigidity. Their separable structure facilitates clearance adjustment and preload control, resulting in a high limiting speed. They conform to imperial standard dimensions and offer excellent interchangeability.
