KRA060 KYA060 KXA060 Thin-section Ball Bearing
The KRA060 KYA060 KXA060 bearing is a Thin-section Ball Bearing with an inner diameter of 6 inch , an outer diameter of 6.5 inch, a width of 0.25 inch. It typically uses P0/P6/P5 grade precision tolerances and Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Bearing model: KRA060 KYA060 KXA060 Thin-section Ball bearing
Inner Diameter (ID):6 inch
Outer Diameter (OD):6.5 inch
Width/Height: 0.25 inch
Material:chrome steel(GCr15/GCr15SiMn)
Weight:0.13 kg
Number of Row: single row
Seals type: Open
KRA060 The thin-section radial contact ball bearing primarily designed for deep groove ball bearing to sustain heavy pressure. The basic design intention is not only to support radical load , but also can sustain middle axial load, rotary load and moment load.
KXA060 Thin-section four-point contact bearing is the ideal choice for supporting moment heavy pressure. It successfully satisfies the four points contact between raceway and steel ball in order to support moment load and reversing axial load. Although it can be applied in light load.
KYA060 The thin-section angular contact bearings are designed for supporting axial load .They can also used to support radial or combining radial traction .But this type can’t solely used to sustain moment load or reverse radical forces. They always appeared in pairs.
Share this product to:
Let more people see your product
-
- CSXB030 CSEB030 CSCB030 Thin-section Ball Bearing
- Bearing model: CSXB030 CSEB030 CSCB030 Thin-section Ball bearing Inner
-
- KG180CP0 Thin-section Ball Bearing 457.2x508x25.4mm
- Bearing model: KG180CP0/XP0 Thin-section Ball bearing Inner Diameter (ID):18 inch Outer Diameter
-
- KRF070 KYF070 KXF070 Bearing 177.8x215.9x19.05mm
- The thin-section radial contact ball bearingS,The thin-section four-point contact bearingS,The thin-section angular
-
- KB080AR0 Thin-section Angular Contact Ball Bearing
- Bearing model: KKB080AR0 Thin-section Angular contact Ball bearing Inner Diameter (ID):8 inch Outer
-

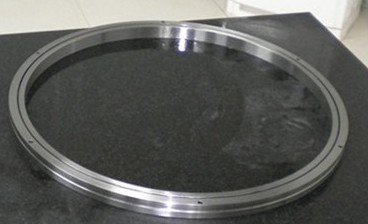

- CRBC 40035 Thin-section Crossed Roller Bearing
