JXR637050 Precision Crossed Roller Bearings

🔍

JXR637050

Bore Diameter:300 mm

Outside Diameter:400 mm

Width:37 mm

Weight:13 kg

Min. Order:1 Piece

The JXR637050 Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.

The JXR637050 bearing is a Precision Crossed roller bearings with an inner diameter of 300 mm , an outer diameter of 400 mm, a width of 37 mm. bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 61651 N, Its dynamic axial rated load is approximately 78555 N, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

300 mm

Outside Diameter:

400 mm

Thickness:

37 mm

Weight:

13 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

61651 N

Dynamic load Capacity, axial:

78555 N

Specifications:

Structure:

Crossed Roller Bearings

Number of Rows:

One

Bearing Material:

bearing steel

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

JXR = Metric

Series:

JXR

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

JXR637050 bearings ( 300 mm x 400 mm x 37 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.

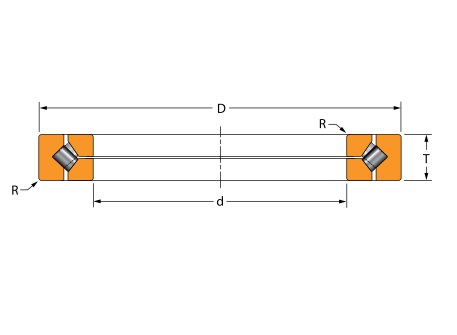

Part Number	JXR637050
Design type	TXR
Bearing Type	Precision Crossed roller bearings
Interchangeable	TIMKEN JXR637050
Manufacturer Part Code	JXR 637050
Series	JXR
Units	JXR = Metric
C_a Axial Dynamic [lbf]	17659
C_r Dynamic Radial [lbf]	13859
d φ Inside [inch]	11.8110
D Φ Outside [inch]	15.7480
T Width [inch]	1.4567
R (Max) Shaft Fillet Radius [inch]	0.0591
Weight [lb]	28.6598
Preload	0.025 to 0.040 mm
K Factor	0.45

The JXR637050 Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.

Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.

Share this product to:

Let more people see your product

How can you buy JXR637050 Precision Crossed Roller Bearings on the Internet?
High quality JXR637050 ( 13 kg Mass, ID: 300 mm OD: 400 mm WD: 37 mm , JXR Series , One Rows , bearing steel Material , 61651 Radial dynamic ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. JXR637050. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
