Indurtrial Parts NK.22.1000.100-1PPN Rotating Gear Ring Factory Manufacturer

🔍

NK.22.1000.100-1PPN

Bore Diameter:830 mm

Outside Diameter:1000 mm

Width:82 mm

Weight:88 kg

Reference FOB Price:US400 ~ 1500 / Piece

Min. Order:1 Piece

The NK.22.1000.100-1PPN bearing is a four point contact slewing ball bearing with an inner diameter of 830 mm , an outer diameter of 1000 mm, a width of 82 mm. It typically uses P0, P6, P5, P4, P2 grade precision tolerances and features a Nylon/steel/copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Cranes, Aerial lifts, Excavators, Wind turbines, Utility derricks, Log loaders and feller bunchers, Grapples, Mining equipment

Dimensions:

Inside Diameter:

830 mm

Outside Diameter:

1000 mm

Thickness:

82 mm

Weight:

88 KG

Outer Ring Width:

Inner Ring Width:

Limiting speed (Oil rpm):

EP2

Specifications:

HS Code:

8482109000

Structure:

four point contact ball bearing

Number of Rows:

single row

Demensions:

1000*830*82

Brand:

LYMC

Precision Rating:

P0, P6, P5, P4, P2

Bearing Material:

42CrMo/50Mn/45#/custom

Cage material:

Nylon/steel/copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel ball

Gear Options:

non gear

Transaction Information:

Transport Package:

export wooden cases

Service:

reply within 24 hours, oem service, design service, technical support

Shipping Ways:

sea, air, express, train

Country of Origin:

China

Stock:

100 Piece

Production Capacity:

100pc/month

Port:

qingdao, shanghai, tianjin, ningbo, guangzhou

Payment term:

fob, cif, exw

Delivery time:

15-45days

Detailed description

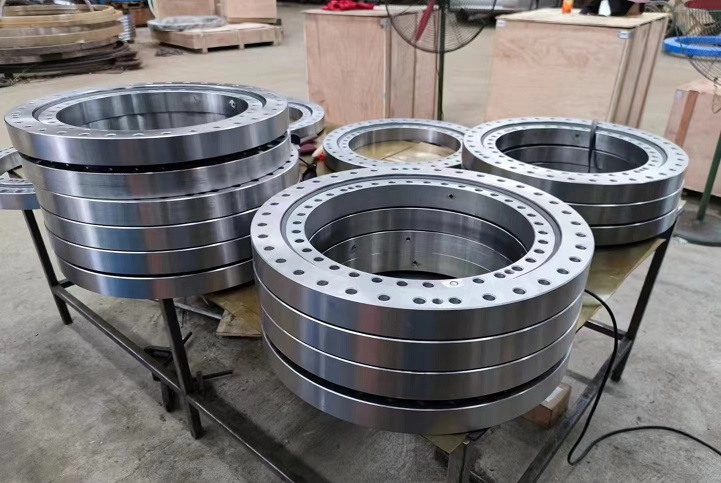

Mobile crane NK.22.1000.100-1PPN rotating gear ring factory manufacturer

material:42crmo/50mn/45#/custom

structure:single row four point contact slewing ball bearing

gear option:external gear, internal gear, non gear

raceway hardness:55-62HRC

outer ring dia(De):1000mm

inner ring dia(Di):830mm

thickness/width(H):82mm

Mounting hole dia(Fe):970mm

Mounting hole bore(Ne):36-φ17

outer ring width/thickness:61mm

inner ring width/thickness:61mm

Mass:88kgs

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Our team with technical and full experience in the bearing industry.

Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force,radial force and overturning moment at the same time, has strong dynamic load.

Packaging:

1.Filling with anti-rust oil
2.Corved with Plastic paper
3.Corved with kraft paper
4.Corved with Blue tie
5.Put in wooden box

Delivery time:

within 7 working days with stock(standard slewing bearing)

within 35-45 working days without stock(non-standard slewing bearing)

Payment term:T/T

If any interesteed items or inquiry, please feel free to contact us. All inquiry will be replied within 24 hours.
