Hot Sale MTO-210 Rotary Table Ring Bearing Supply

🔍

MTO-210

Bore Diameter:8.268 inch

Outside Diameter:14.370 inch

Width:1.575 inch

Reference FOB Price:US400 ~ 800 / Piece

Min. Order:1 Piece

The MTO-210 bearing is a four point contact ball bearing with an inner diameter of 8.268 inch , an outer diameter of 14.370 inch, a width of 1.575 inch. It typically uses P0,P2,P4,P6 grade precision tolerances and features a Nylon/ steel /copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: industrial equipment, foresty machine, mining and metallurgy.

Dimensions:

Inside Diameter:

8.268 inch

Outside Diameter:

14.370 inch

Thickness:

1.575 inch

Outer Ring Width:

1.496

Inner Ring Width:

1.496

Reference speed (Grease rpm):

EP2

Specifications:

HS Code:

848210

Structure:

four point contact ball bearing

Number of Rows:

Demensions:

14.370*8.268*1.575

Brand:

lymc

Precision Rating:

P0,P2,P4,P6

Bearing Material:

42CrMo/42CrMoQT/50Mn

Cage material:

Nylon/ steel /copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Gear Options:

non-gear

Transaction Information:

Transport Package:

wooden box

Service:

OEM

Shipping Ways:

sea, air

Country of Origin:

China

Quality Control:

QC report, ISO

Stock:

100 Piece

Production Capacity:

1000

Port:

shanghai, qingdao, ningbo

Payment term:

T/T, L/C

Delivery time:

30 days

Detailed description

Hot sale MTO-210 rotary table ring bearing supply technical datas:

Material:42CrMo/50Mn/42CrMo4

Structure:four point contact slewing ball bearing

Ball material:Gcr15

Do:14.370

di:8.268

H:1.575

Ho/Hi:1.496

G:38Ibs

Lo:13.190

no:16

Bo:0.562

Li:9.449

ni:20

Bi:0.562

Moment rating:44,500(ft-Ibs)

If you are insterested in MTO-210 slewing ball bearing more details, please contact us freely.

Share this product to:

Let more people see your product

How can you buy Hot Sale MTO-210 Rotary Table Ring Bearing Supply on the Internet?
High quality MTO-210 ( ID: 8.268 inch OD: 14.370 inch WD: 1.575 inch , 1 Rows , P0,P2,P4,P6 Accuracy Class , 42CrMo/42CrMoQT/50Mn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. MTO-210. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- standard SD.1166.20.00.B slewing ring bearing China manufacture
- standard SD.1166.20.00.B slewing ring bearing China manufacture Da(outer ring diameter):1166mm Di(inner ring diamater):1022mm H(overall height):56mm
- Slewing ball bearing ring I.1500.32.00.C for beverage filling equipment
- Slewing ball bearing ring I.1500.32.00.C for beverage filling equipment Model no.:I.1500.32.00.C structure:four point

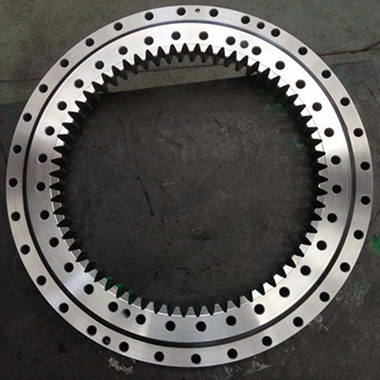

- Standard slewing ring bearing VSI 20 0944 N turntables with gear
